Quick Diagnostic Chart [Instrument Cluster]

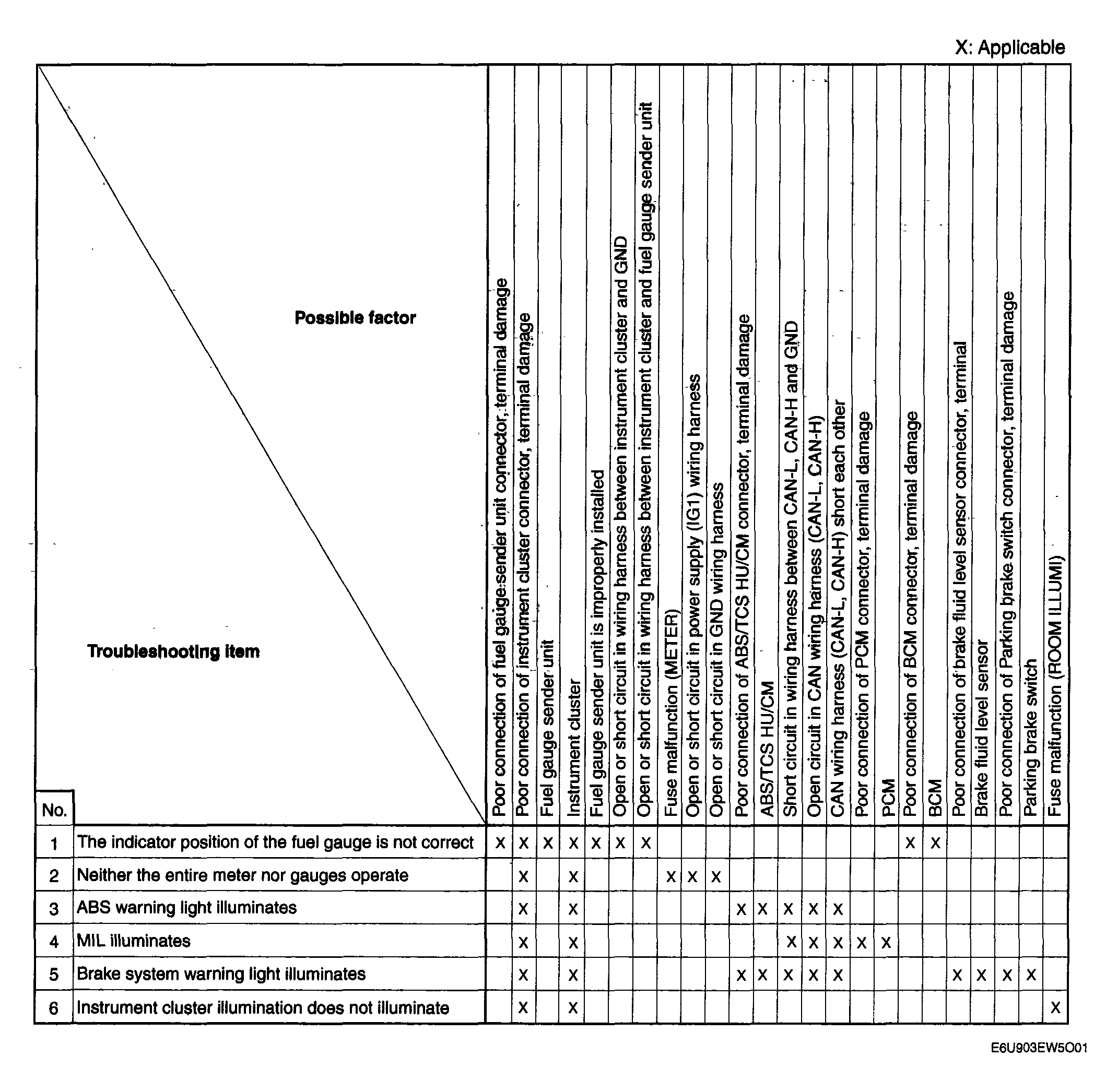

Fig 1: Quick Diagnostic Chart (Instrument Cluster)

G04327109

Courtesy of MAZDA MOTORS CORP.
