[FS5A-EL]

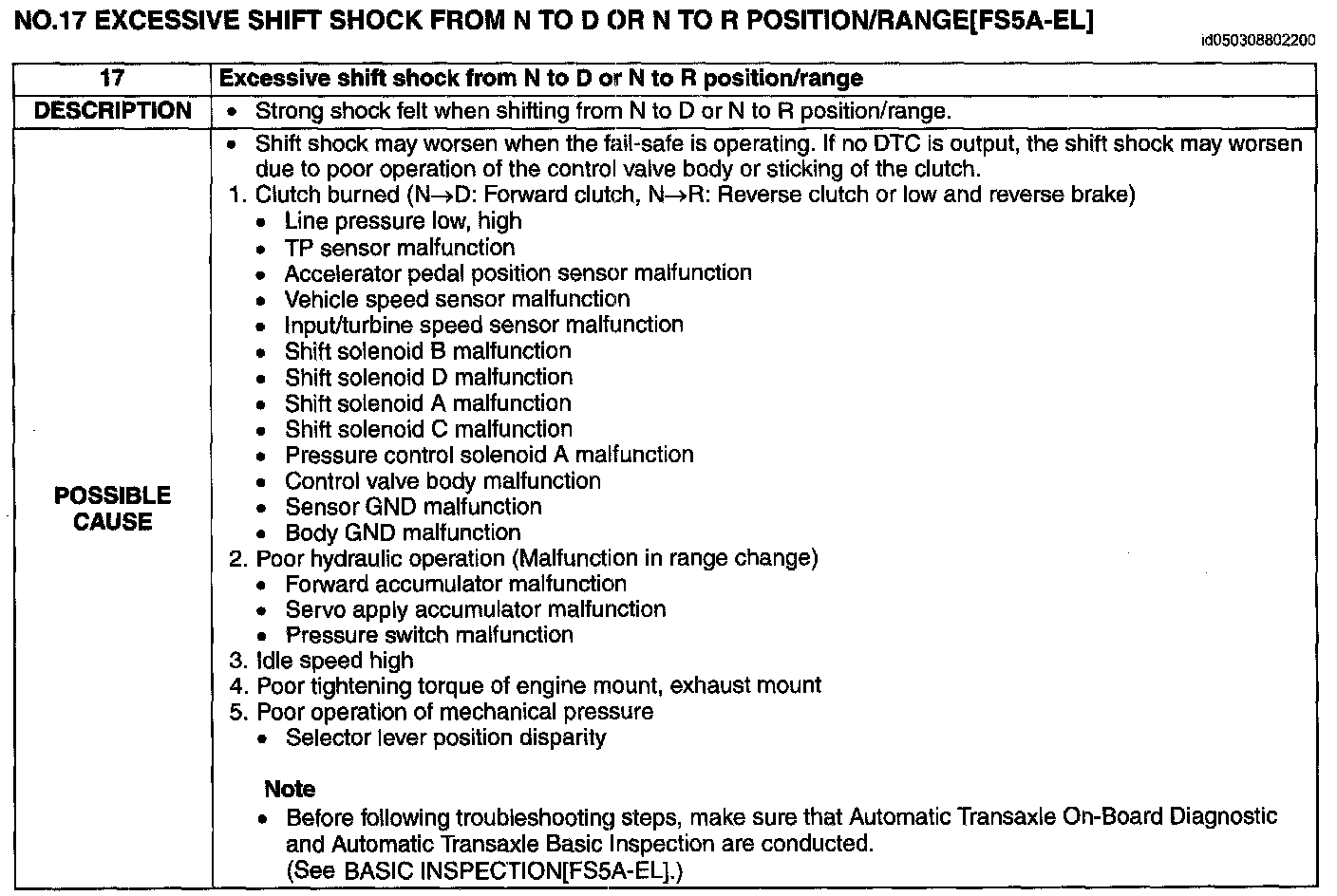

NO. 17 EXCESSIVE SHIFT SHOCK FROM N TO D OR N TO R POSITION/RANGE [FS5A-EL]

NO. 17 EXCESSIVE SHIFT SHOCK FROM N TO D OR N TO R POSITION/RANGE [FS5A-EL]:

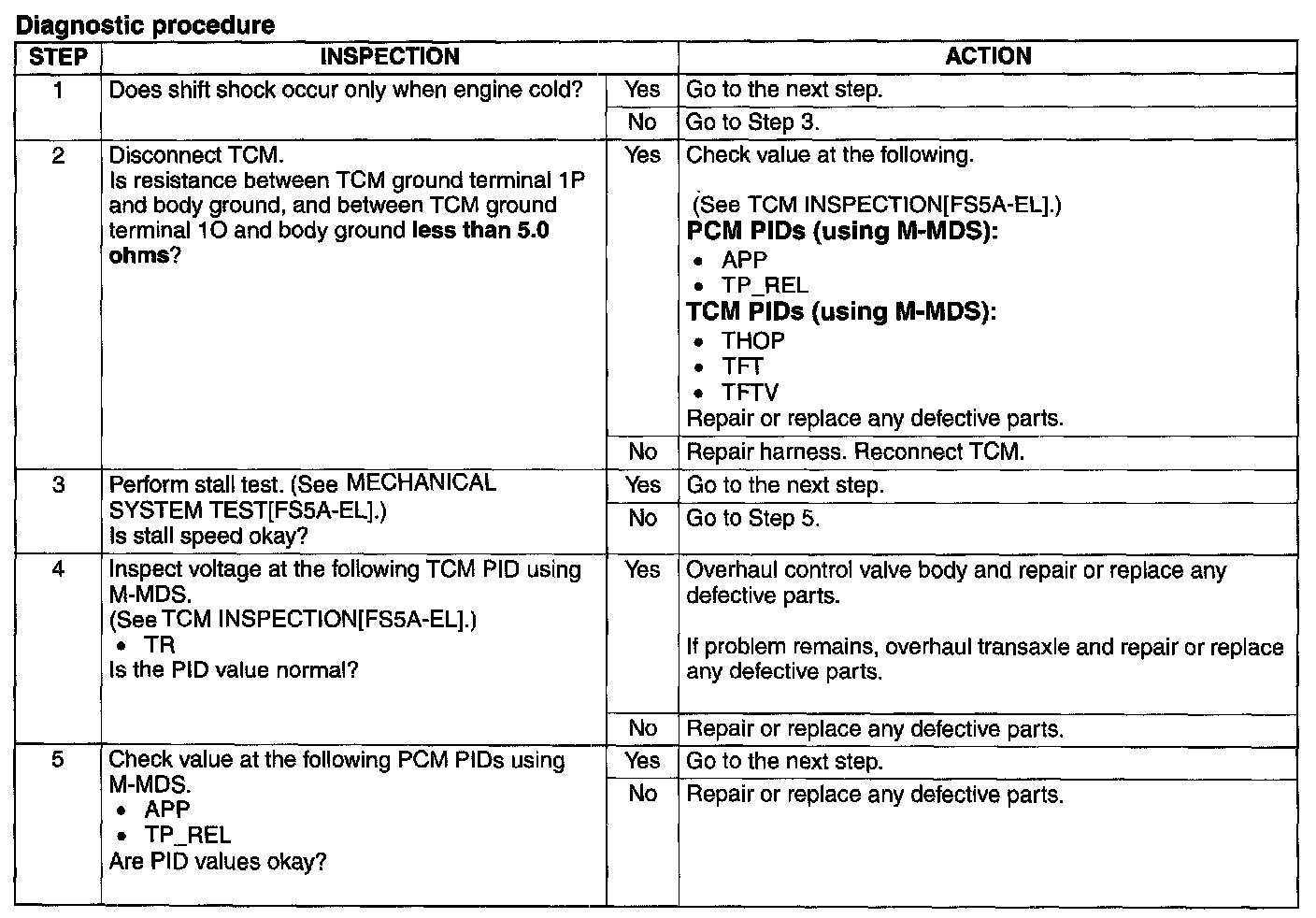

Diagnostic Procedure

Step 1-Step 5:

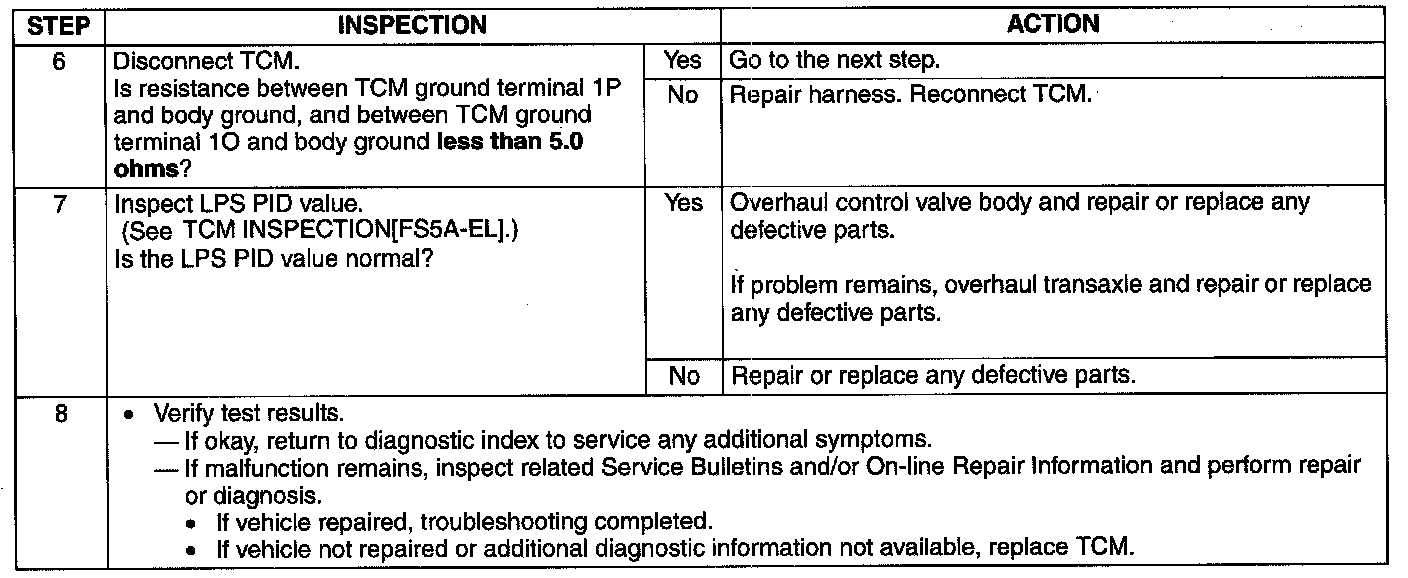

Step 6-Step 8:
