Rear Wiper and Washer Switch Inspection [5-Door, Sport Wagon]

REAR WIPER AND WASHER SWITCH INSPECTION [5-DOOR, SPORT WAGON]

1. Remove the wiper and washer switch.

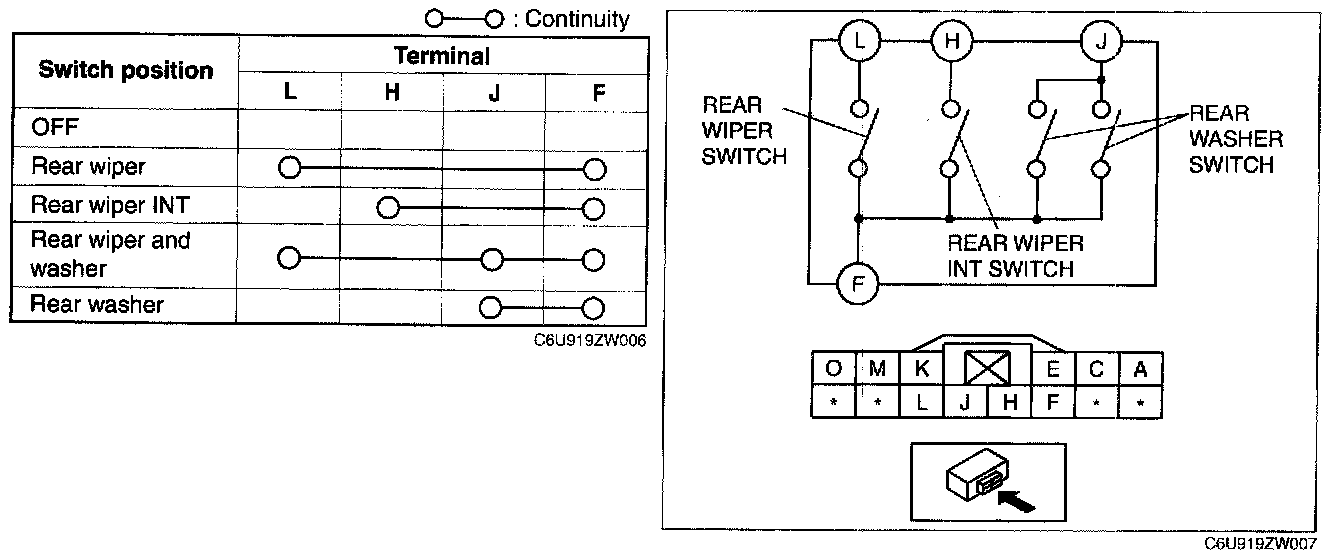

2. Inspect for continuity between the wiper and washer switch terminals using an ohmmeter.
- If not as specified, replace the wiper and washer switch.
