5-Door

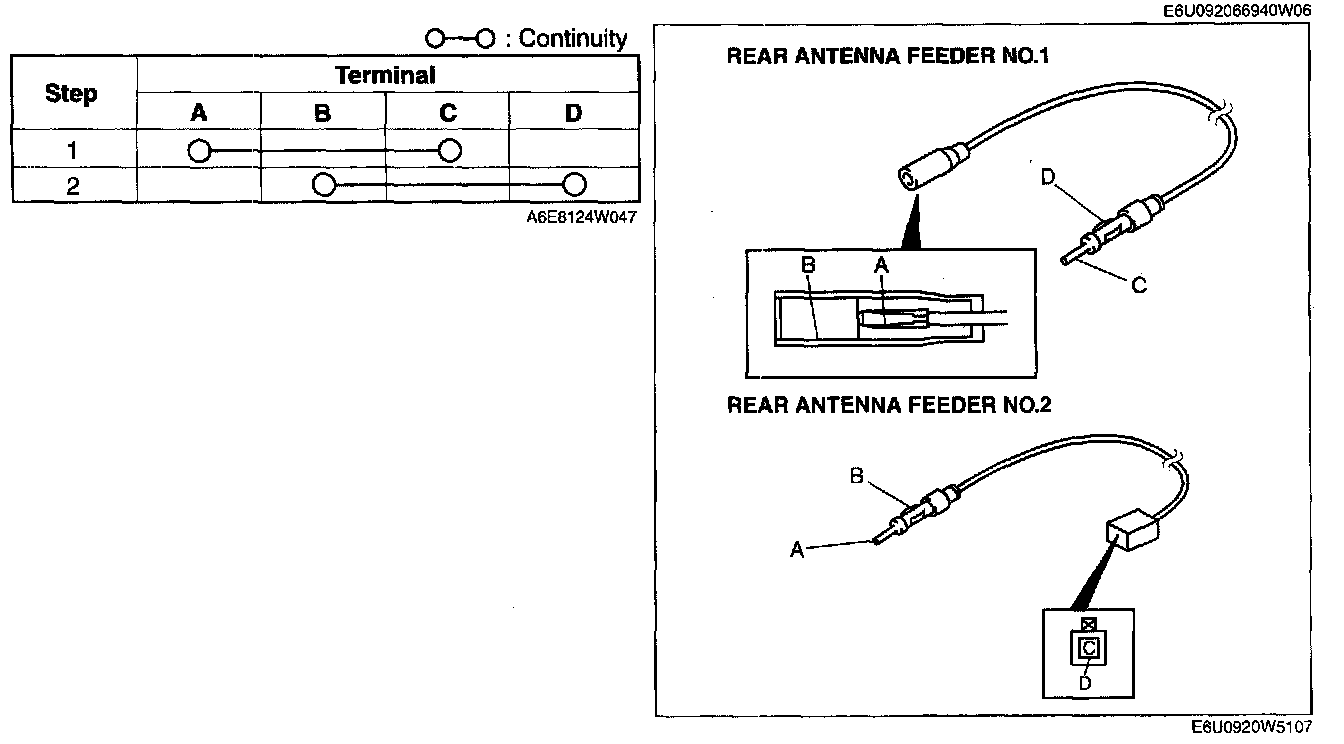

REAR ANTENNA FEEDER INSPECTION [5-DOOR]




1. Verify that there is no continuity between antenna feeder terminals A and B using an ohmmeter.
2. Inspect for continuity between the antenna feeder terminals using an ohmmeter.
- If not as specified, replace the rear harness.
