Home >> Mazda >> 2007 >> 5 L4-2.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Actuators and Solenoids - Transmission and Drivetrain >> Actuators and Solenoids - A/T >> Shift Selector Actuator >> Locations

Shift Selector Actuator: Locations

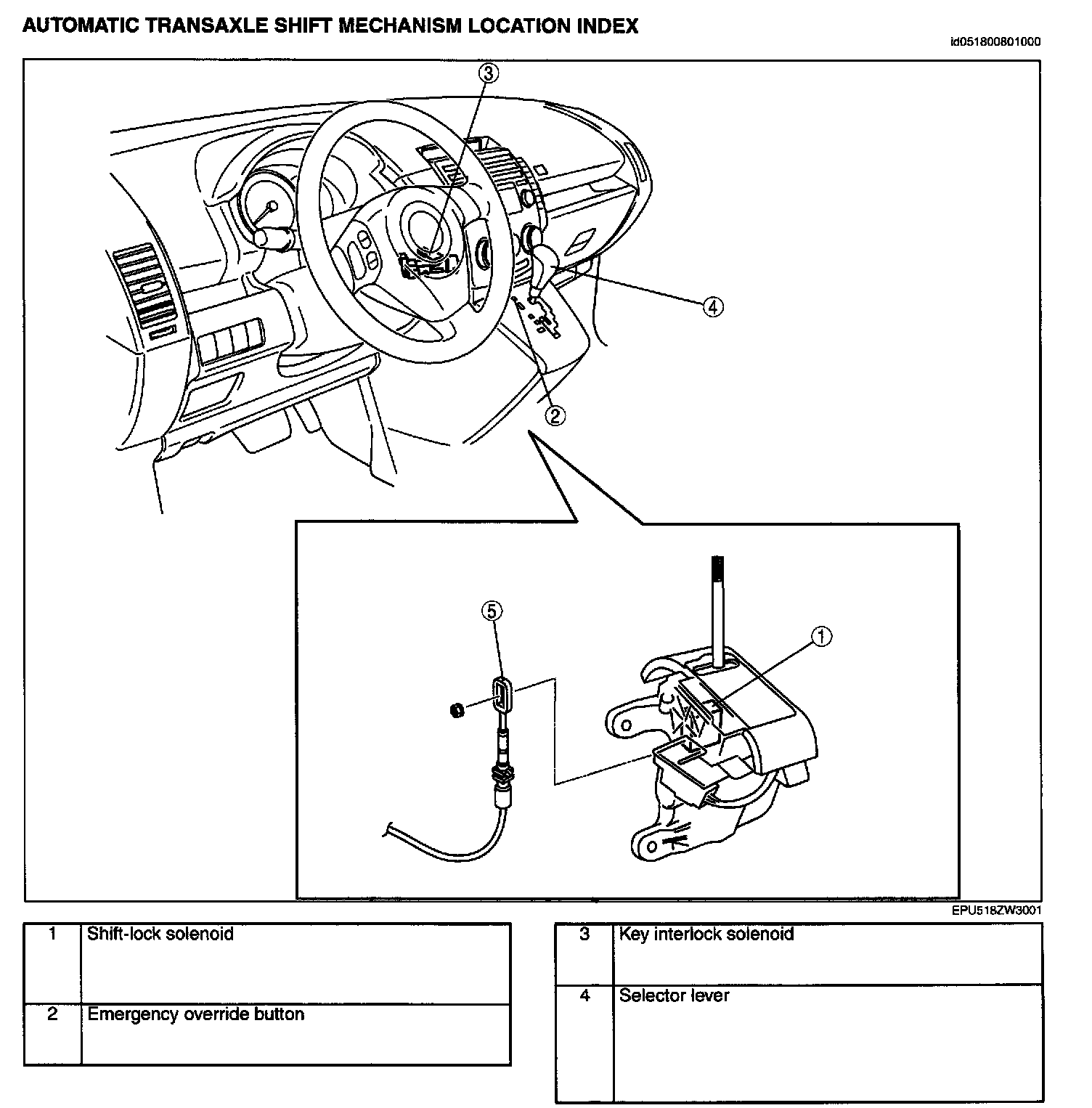

Automatic Transaxle Shift Mechanism Location Index:
