No.17 Excessive Shift Shock From N to D or N to R Position/Range (FN4A-EL)

NO.17 EXCESSIVE SHIFT SHOCK FROM N TO D OR N TO R POSITION/RANGE (FN4A-EL)

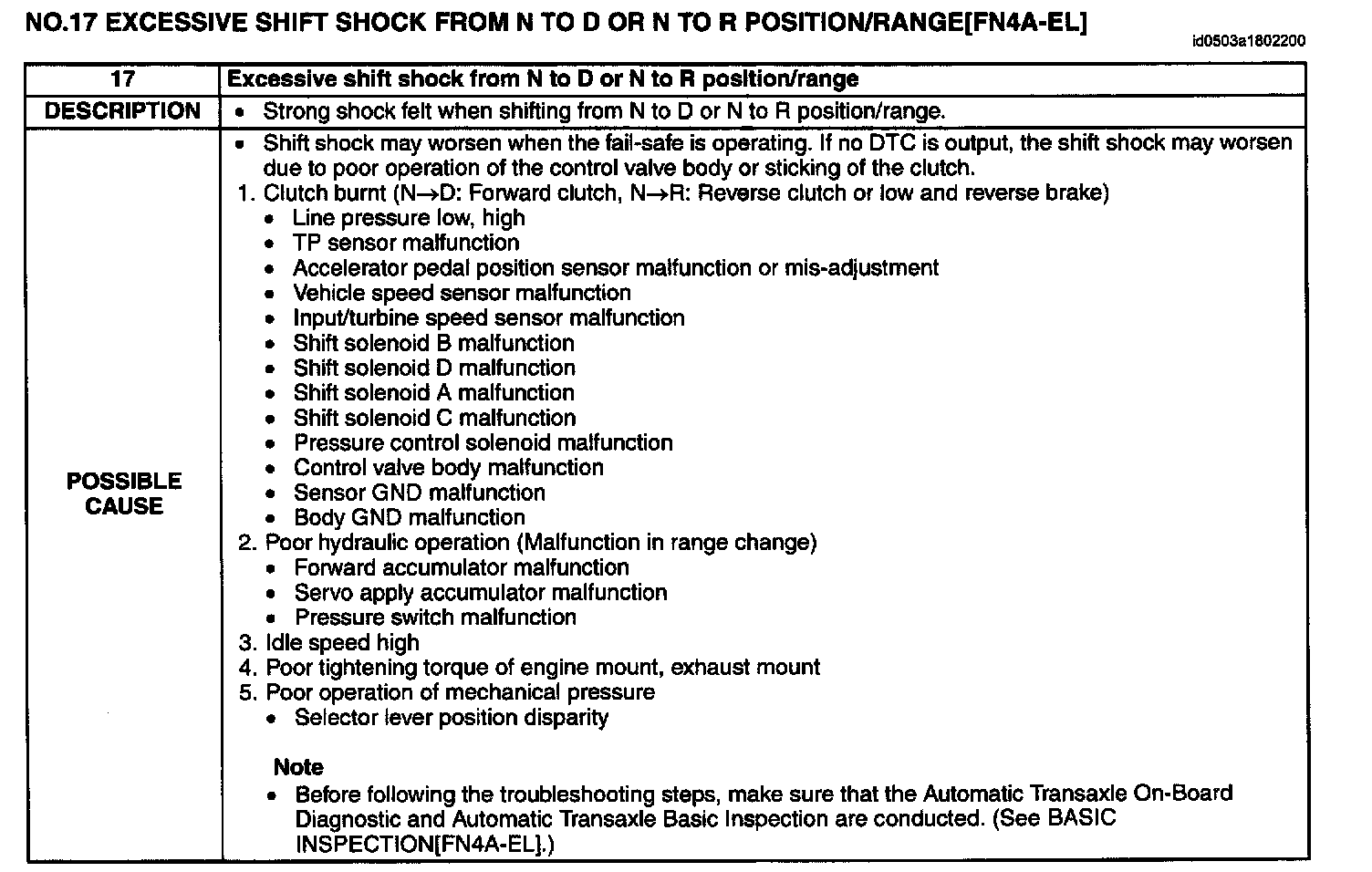

No.17 Excessive Shift Shock From N to D or N to R Position/Range(FN4A-EL):





Diagnostic procedure

Step 1-Step 2:

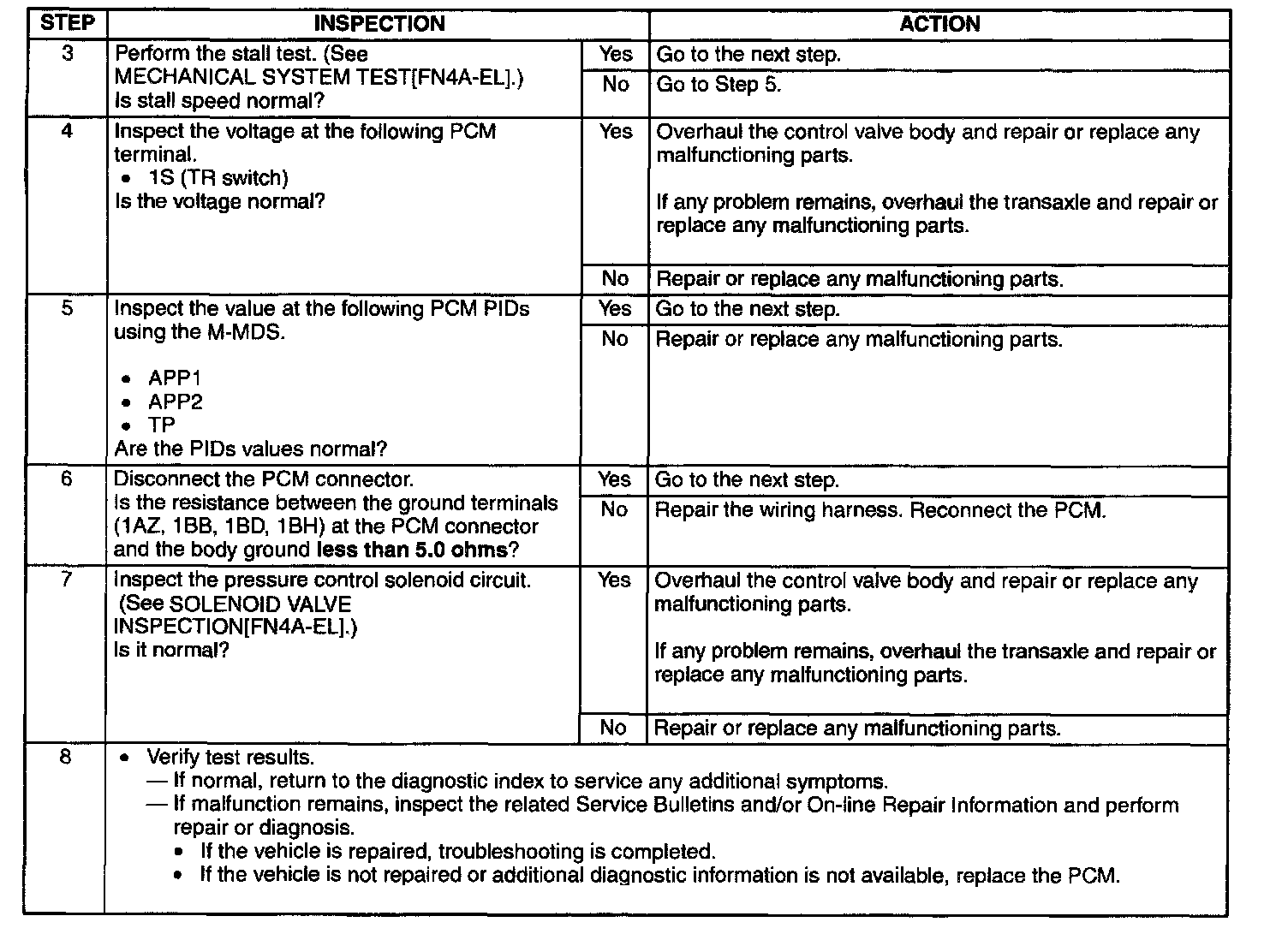

Step 3-Step 8:
