Windshield Wiper and Washer Switch

WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

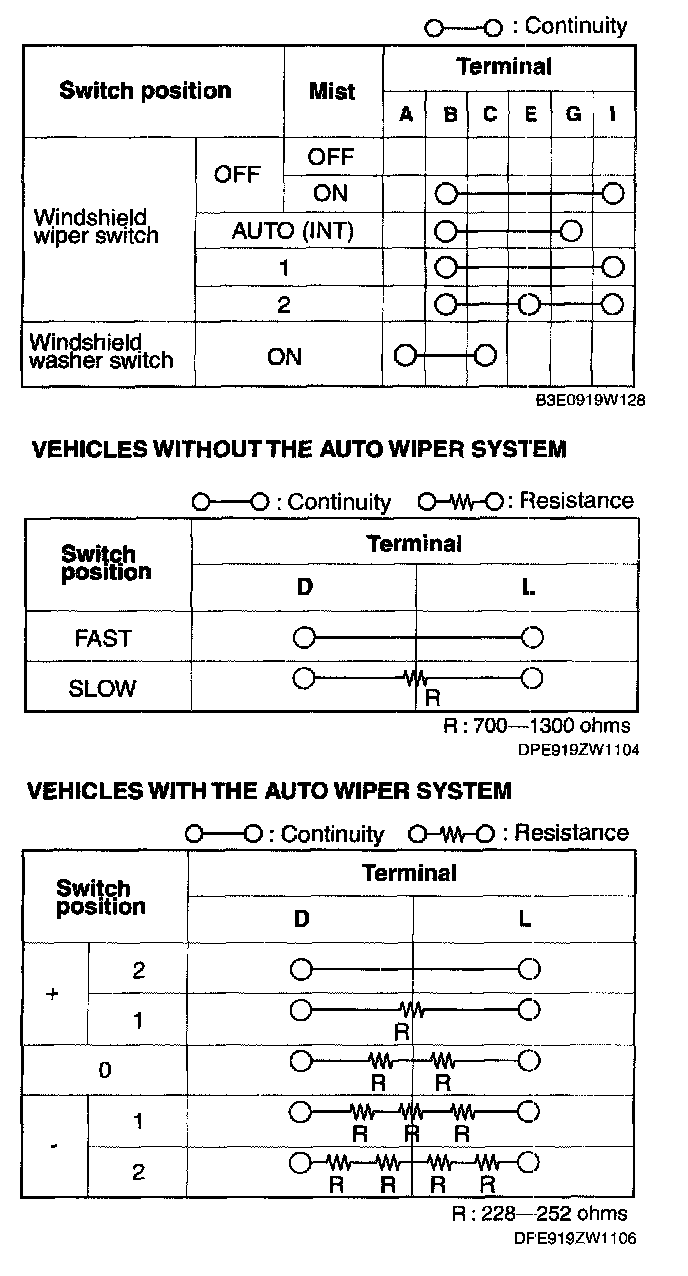

1. Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.
- If not as indicated in the table, replace the wiper and washer switch.
