Home >> Mazda >> 2007 >> 5 L4-2.3L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Fog/Driving Lamp Switch >> Locations

Fog/Driving Lamp Switch: Locations

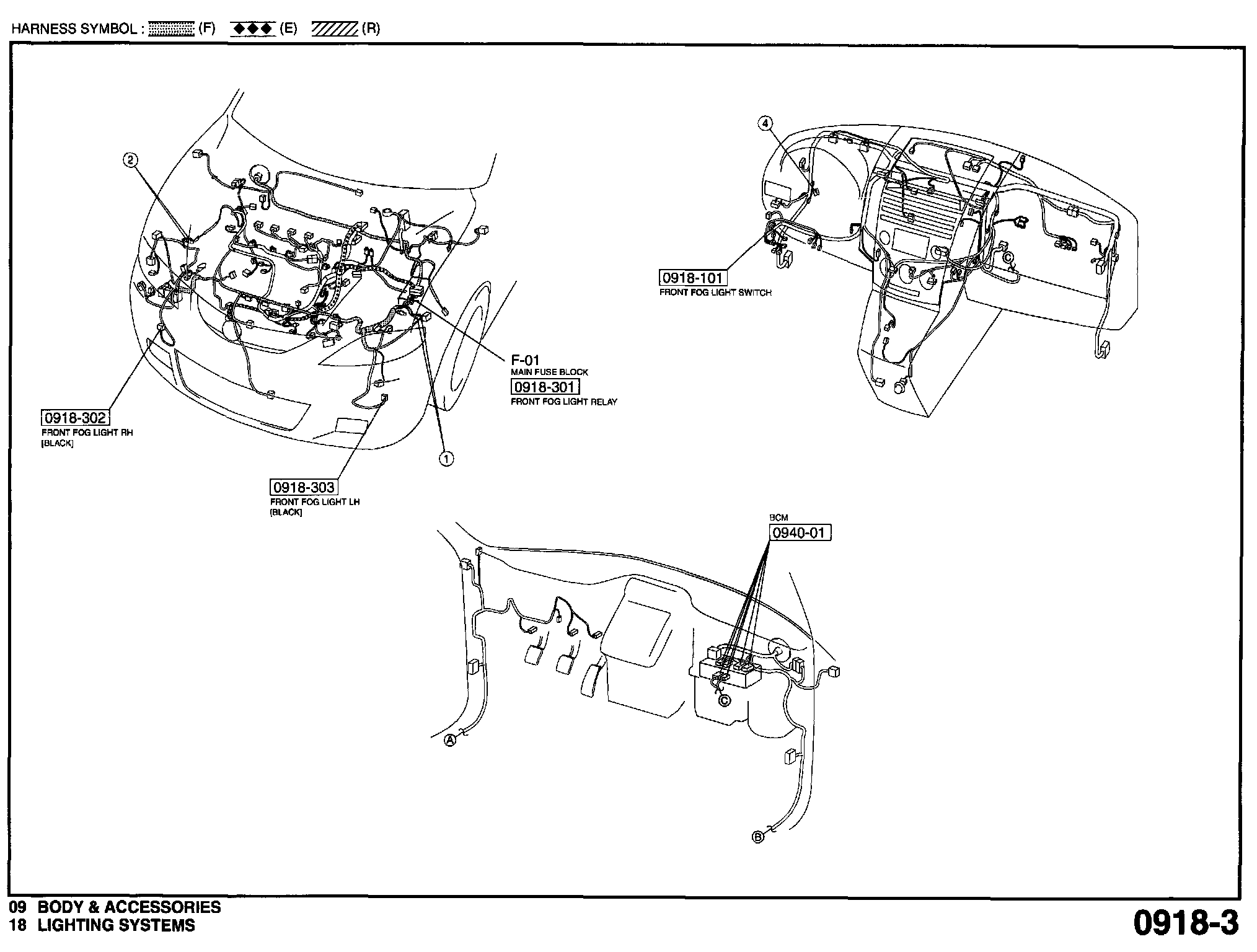

Routing View 0918-3:



Light Switch/Front Fog Light Switch/Turn Switch:
