Power Sliding Door Switch: Locations

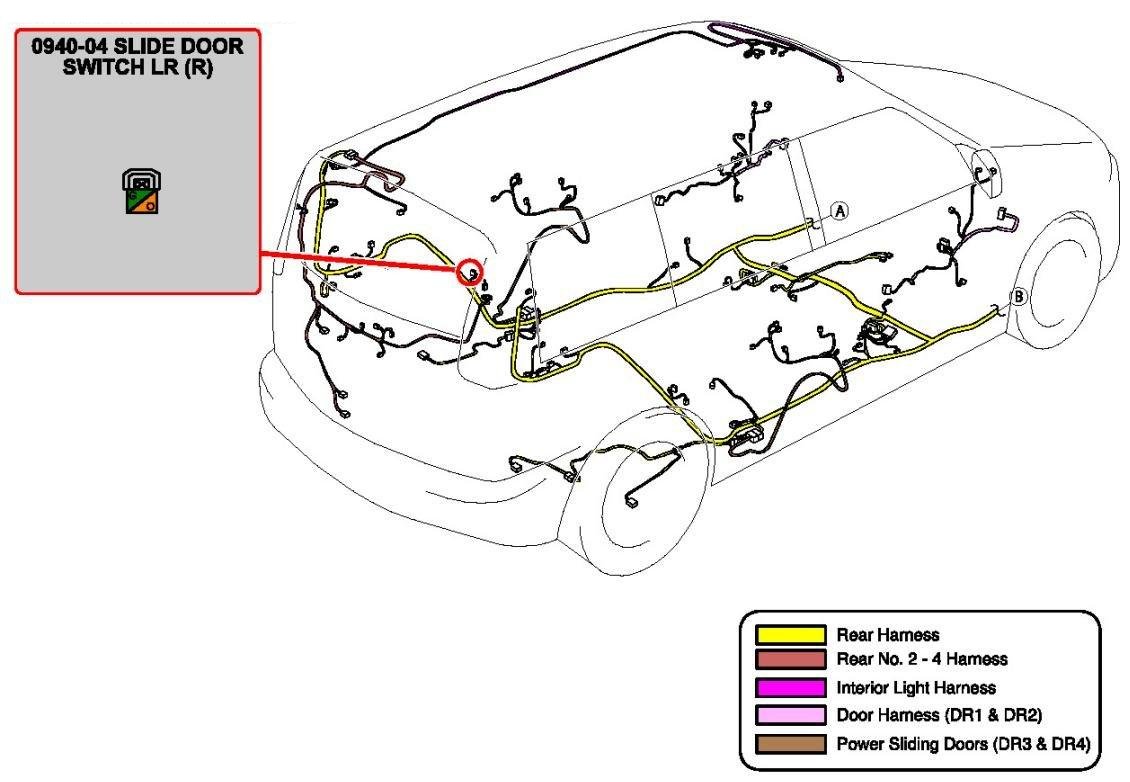

Slide Door Switch LR:

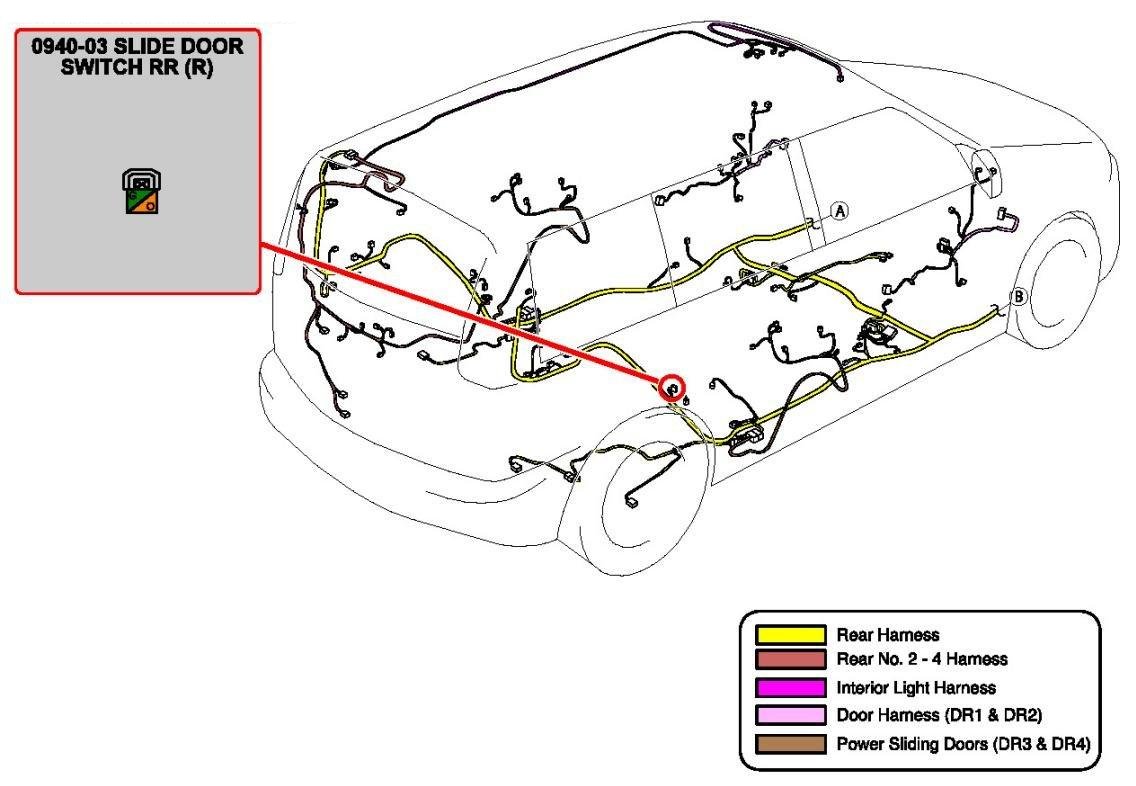

Slide Door Switch RR:

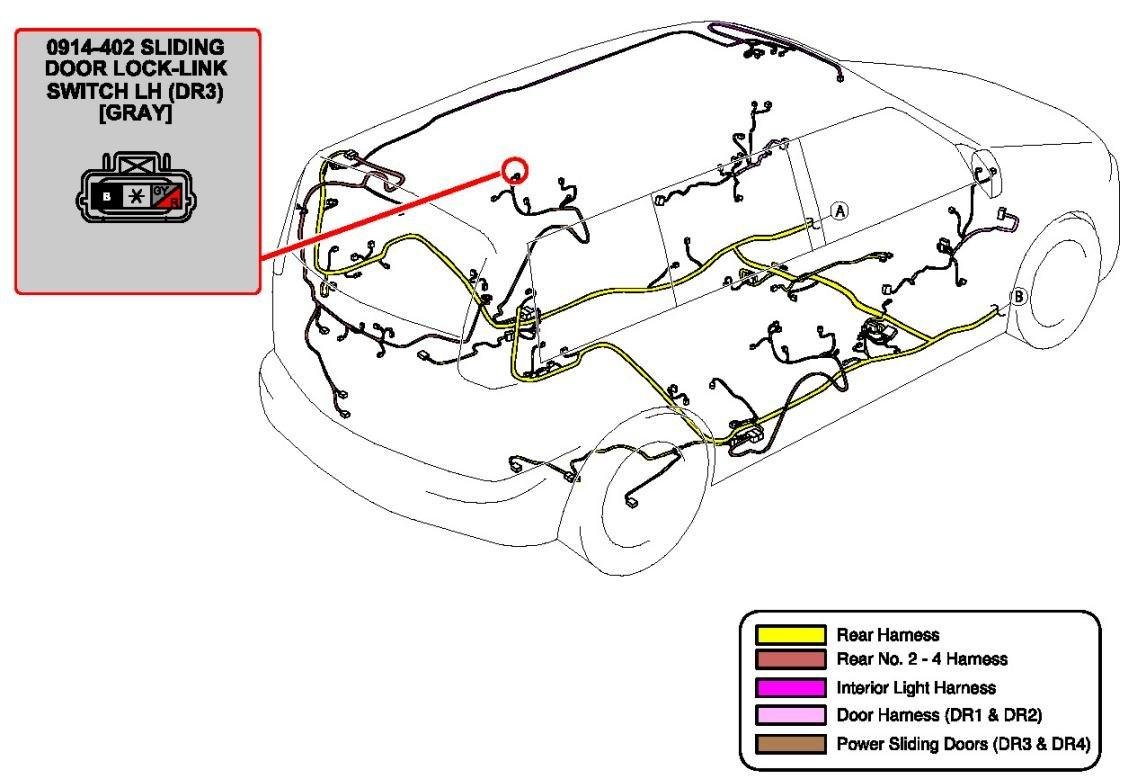

Sliding Door Lock-Link Switch LH:

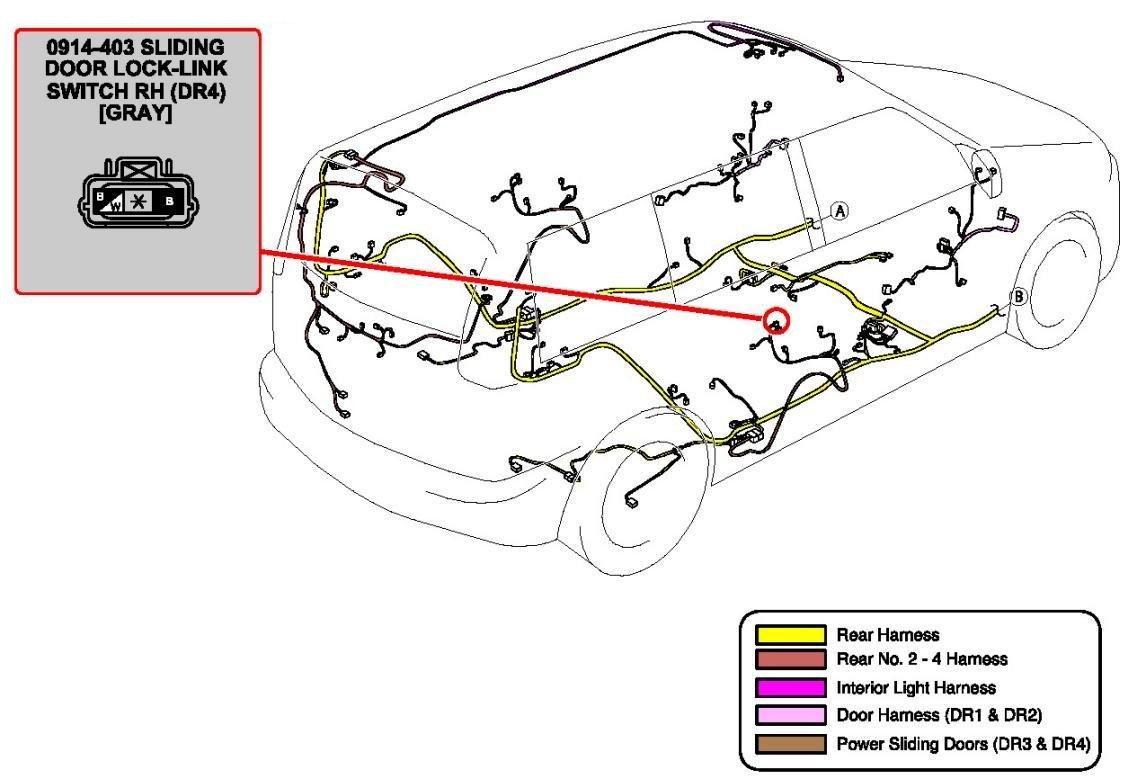

Sliding Door Lock-Link Switch RH:
