Home >> Mazda >> 2007 >> 5 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0912-3 (Power Outer Mirror)

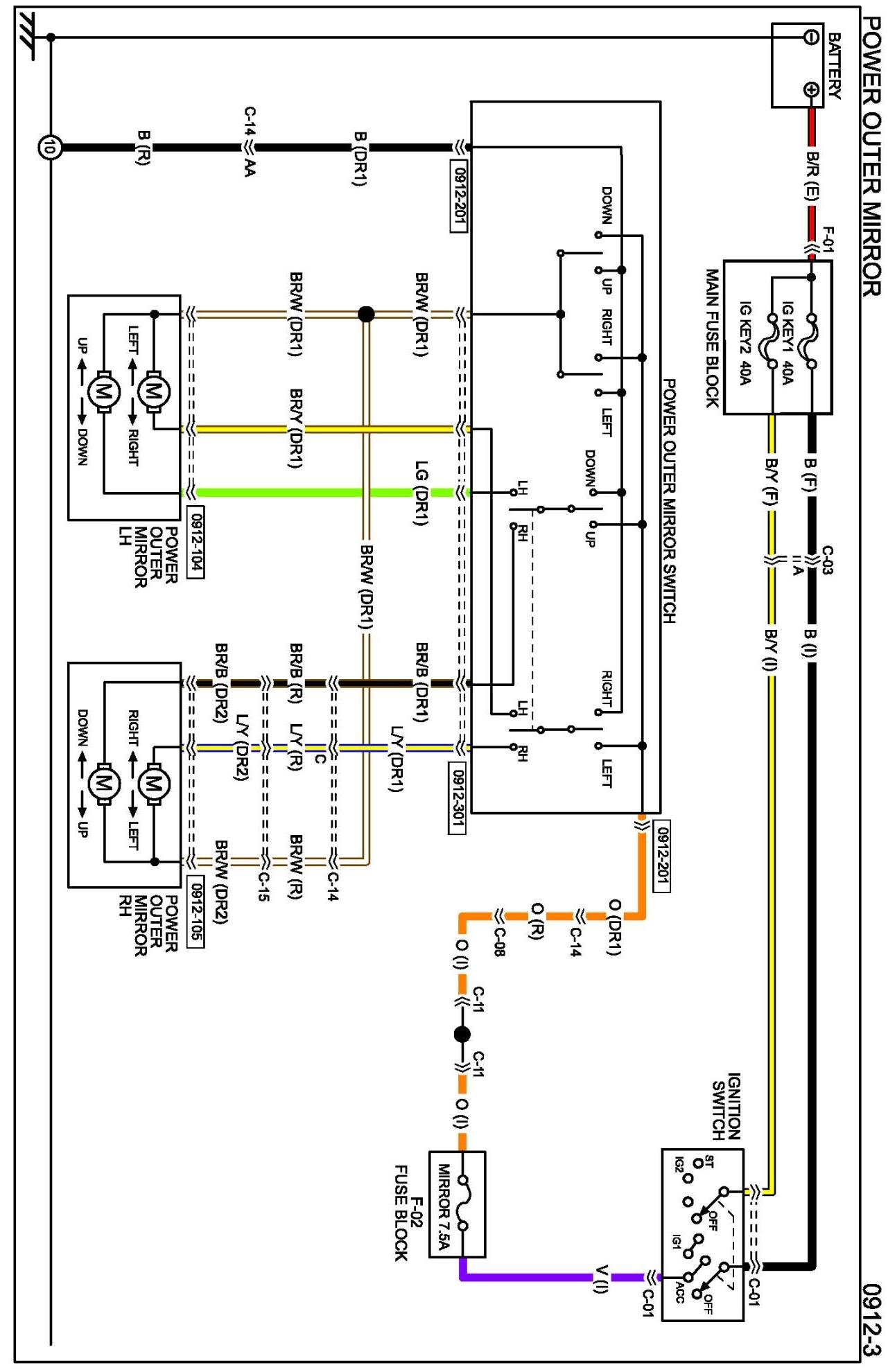

Diagram 0912-3 (Power Outer Mirror)

Diagram 0912-3:
