Sunroof / Moonroof Motor: Testing and Inspection

SUNROOF MOTOR INSPECTION

1. Measure the voltage at each terminal (other than terminal G).
- If not as specified, inspect the parts listed under "Inspection item" and the related wiring harnesses.

2. Remove the battery cover.
3. Disconnect the negative battery cable.

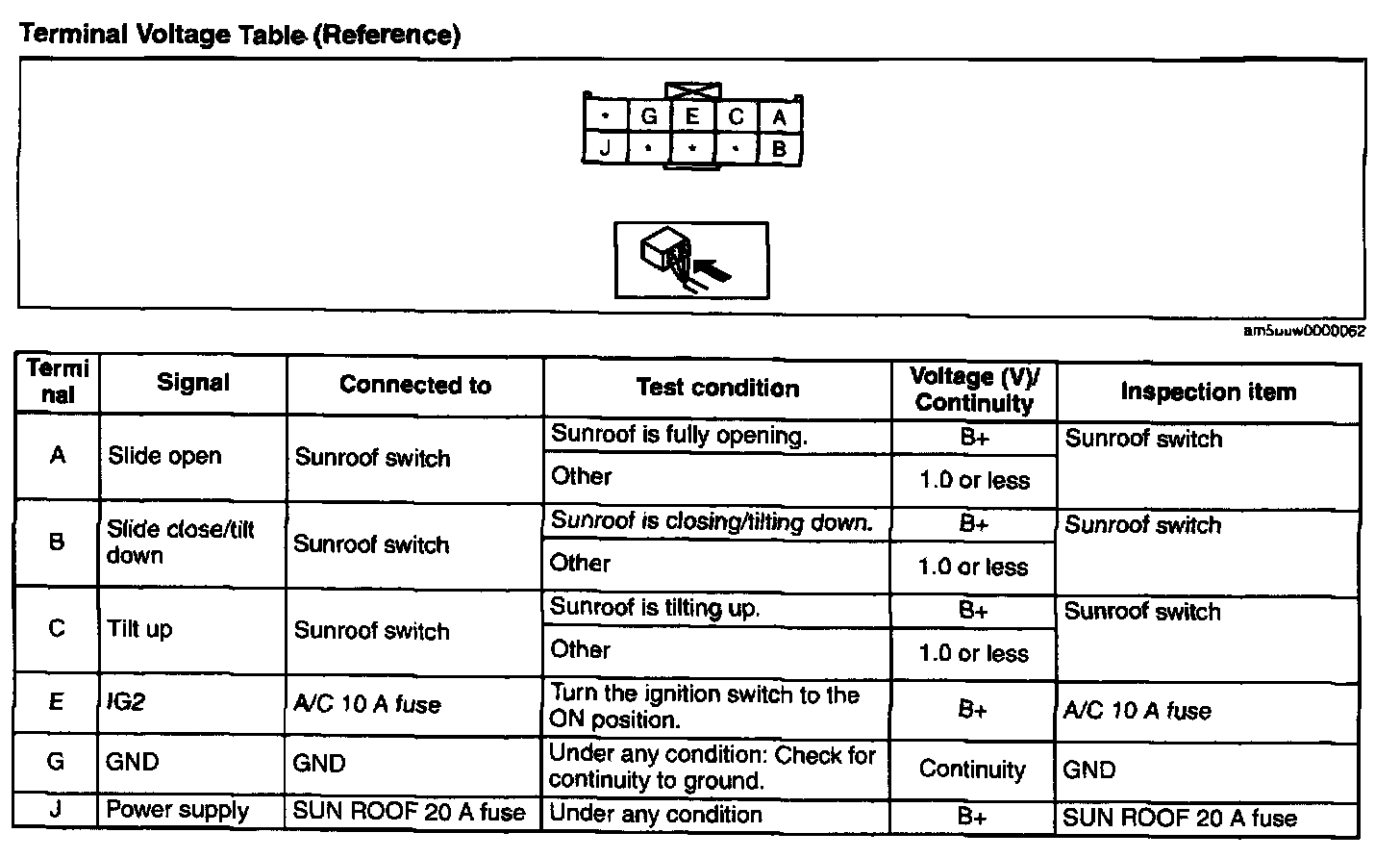

4. Verify that continuity at terminal G is as indicated in the Terminal Voltage Table (Reference).
5. If the parts and wiring harnesses are normal but the system still does not work properly, replace the sunroof motor.
