Forward Clutch, 3-4 Clutch, Reverse Clutch, Direct Clutch, Low and Reverse Brake, Reduction Brake Outline

FORWARD CLUTCH, 3-4 CLUTCH, REVERSE CLUTCH, DIRECT CLUTCH, LOW AND REVERSE BRAKE, REDUCTION BRAKE OUTLINE

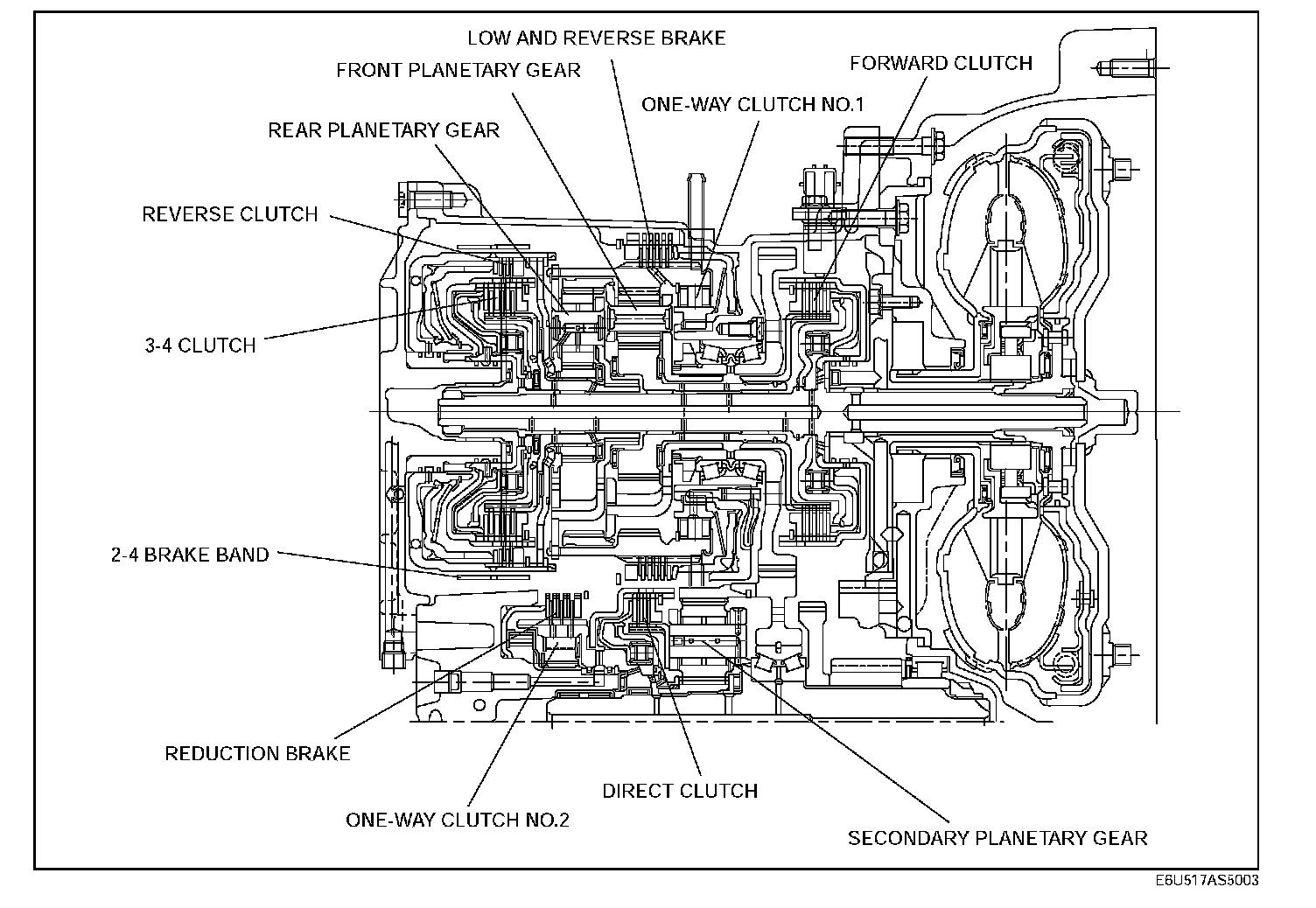

^ Each multi-disc type clutch and brake has the following function and operates in the gear position(s) as shown in the figure.
