No.2 Excessive Noise From Electric Power Steering Oil Pump Electro Hydraulic Power Assist Steering (EHPAS)

NO.2 EXCESSIVE NOISE FROM ELECTRIC POWER STEERING OIL PUMP [ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS)]

No.2 Excessive Noise From Electric Power Steering Oil Pump [Electro Hydraulic Power Assist Steering (EHPAS)]:

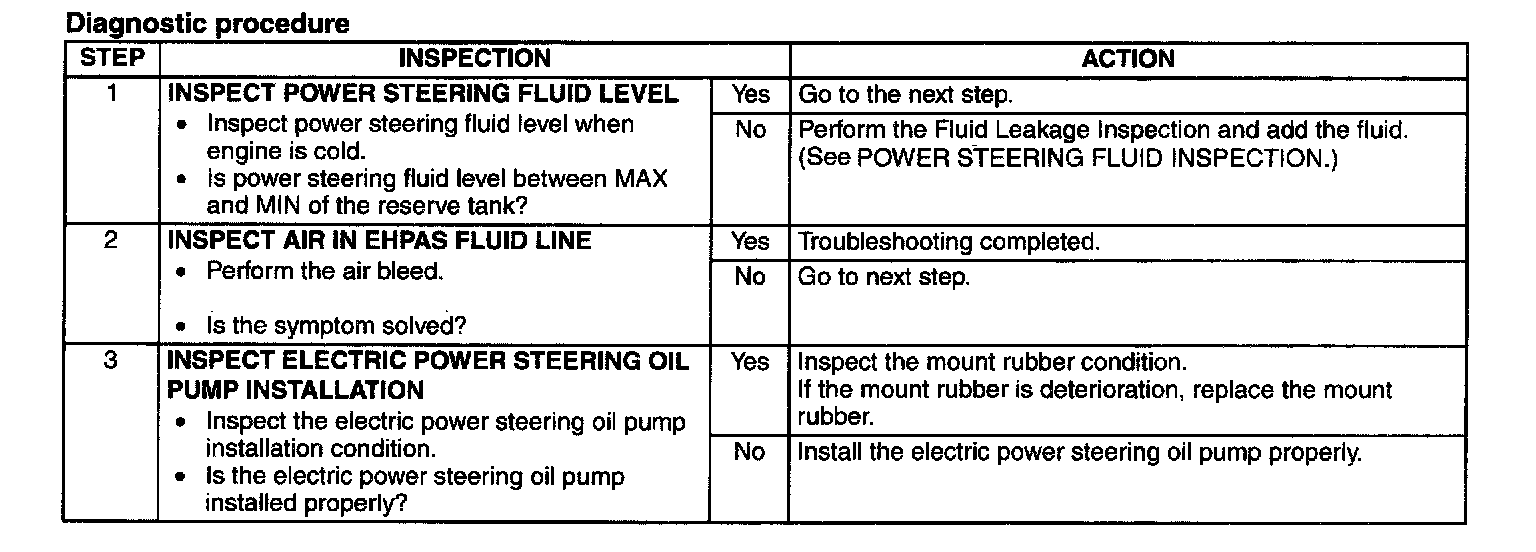

Diagnostic procedure

Step 1-Step 3:
