Home >> Mazda >> 2007 >> 3 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0918-2a (Headlight (With DRL))

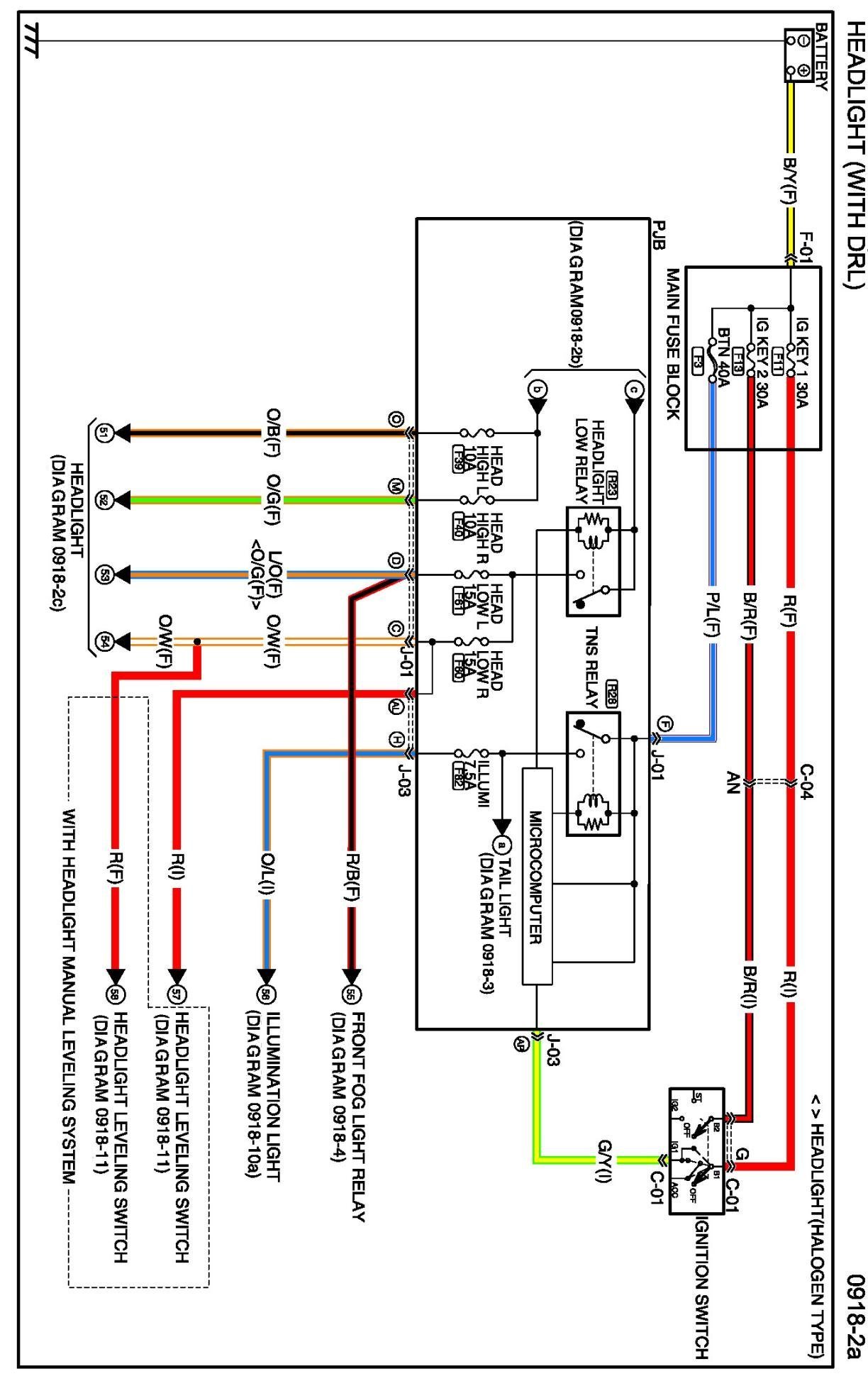

Diagram 0918-2a (Headlight (With DRL))

Diagram 0918-2a:
