Connector Locations

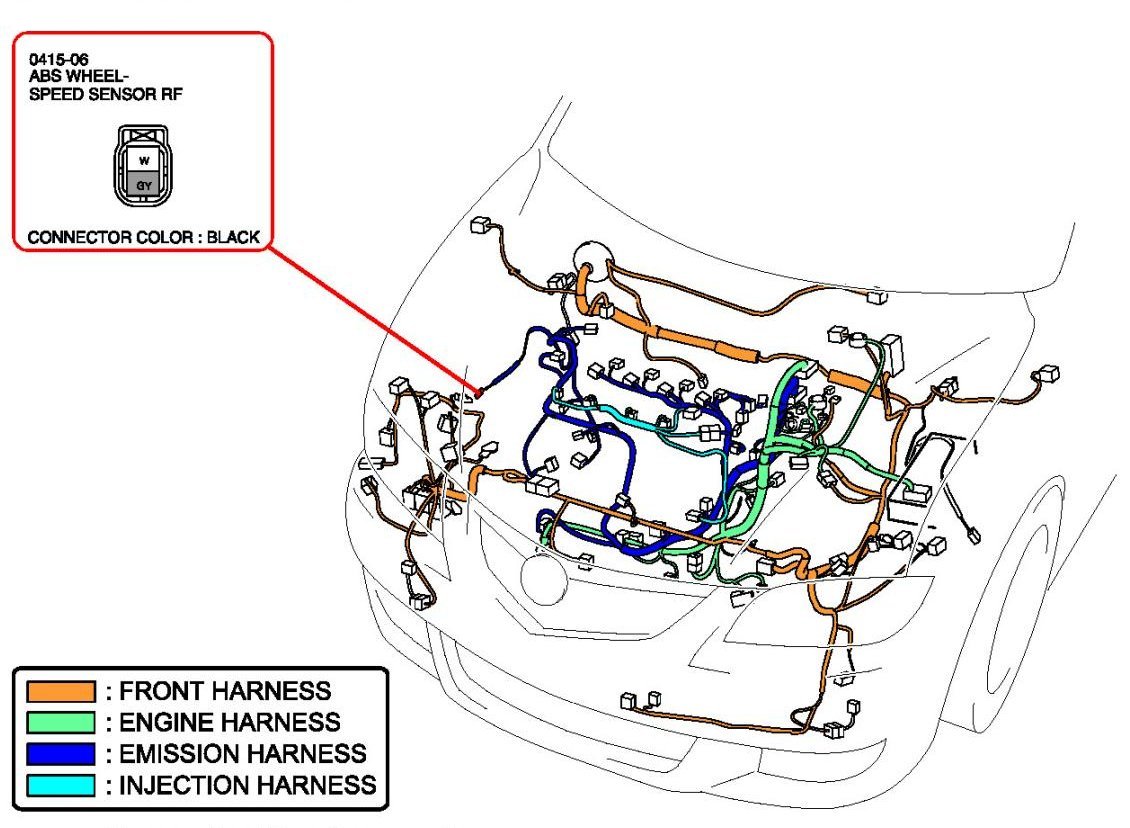

ABS Wheel Speed Sensor RF:

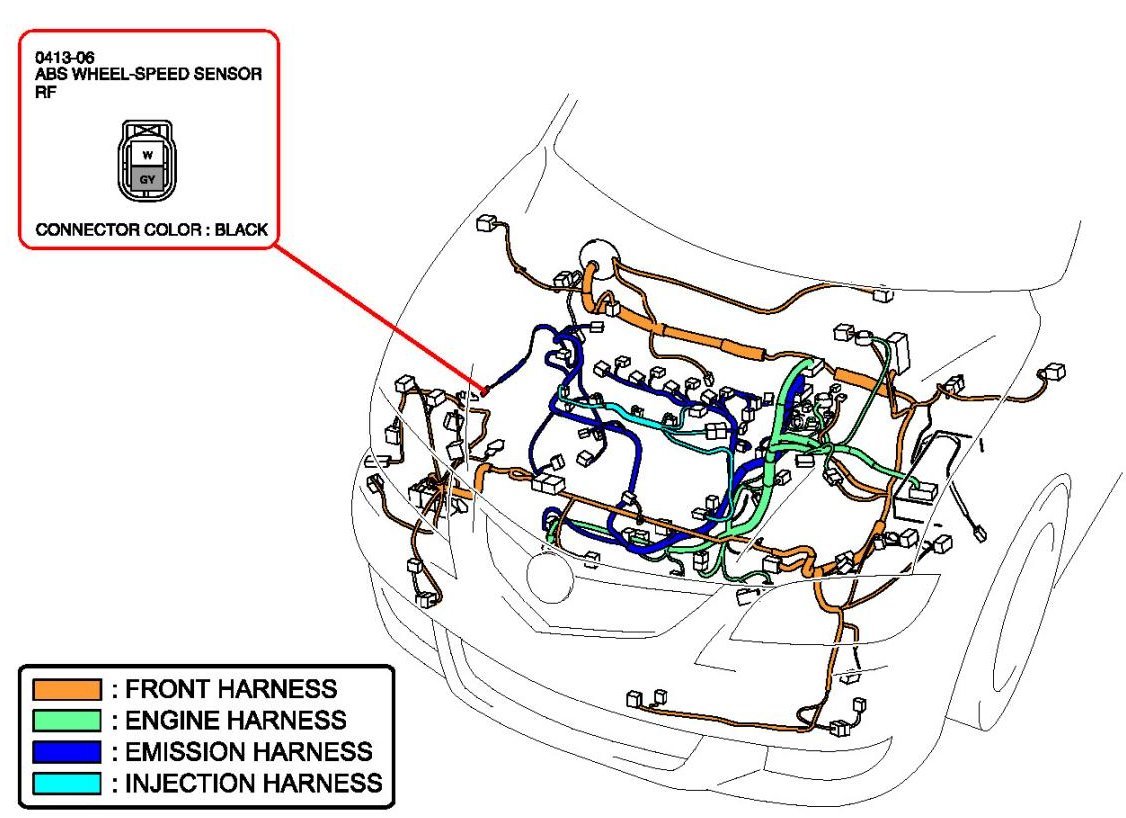

ABS Wheel Speed Sensor RF:

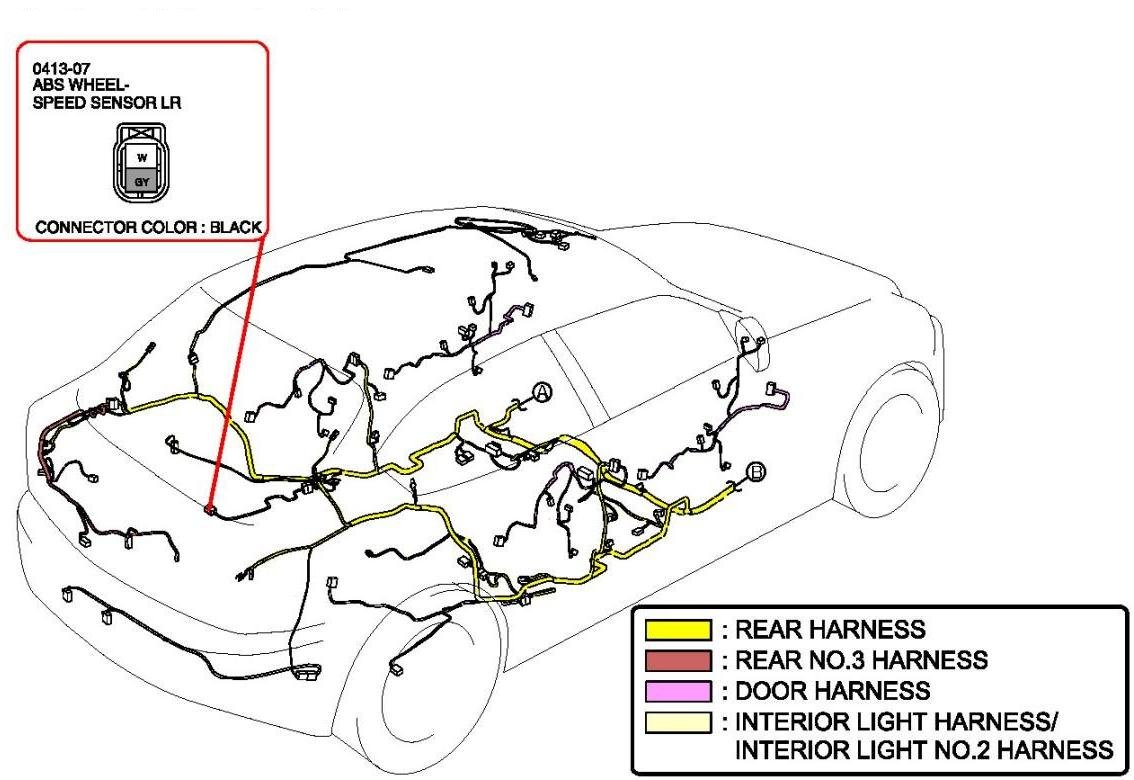

ABS Wheel Speed Sensor LR:

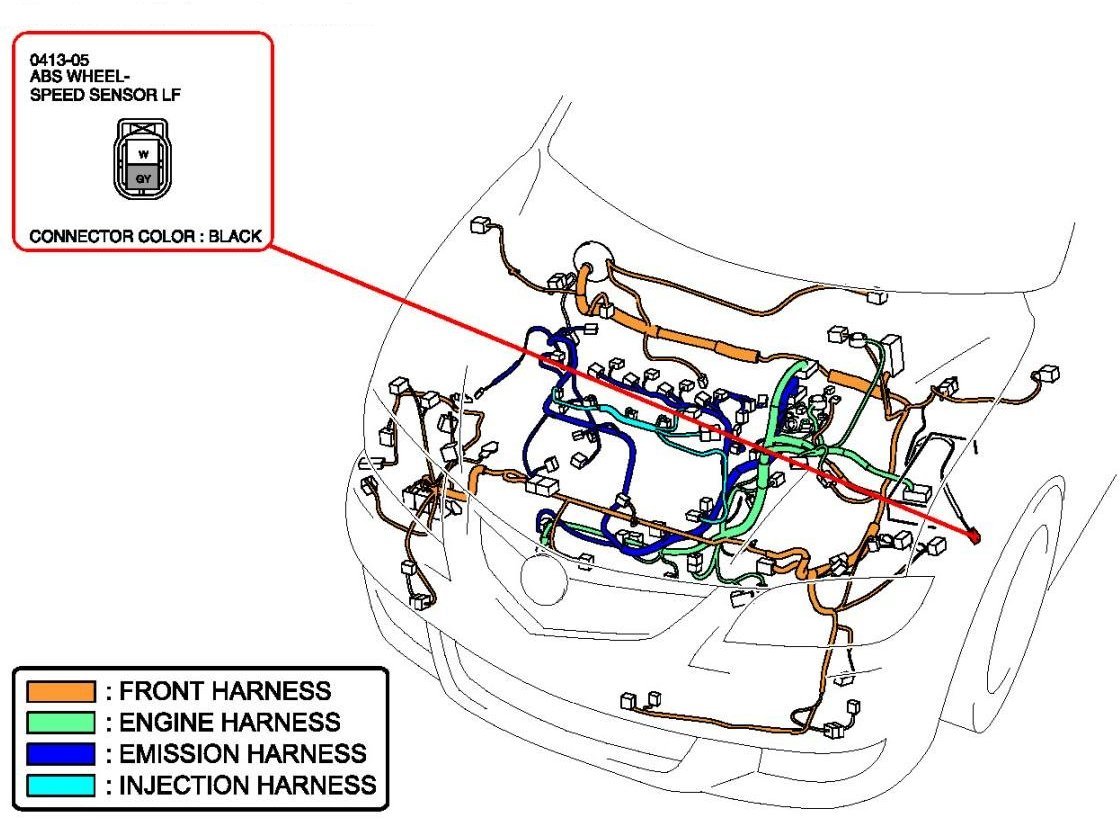

ABS Wheel Speed Sensor LF:

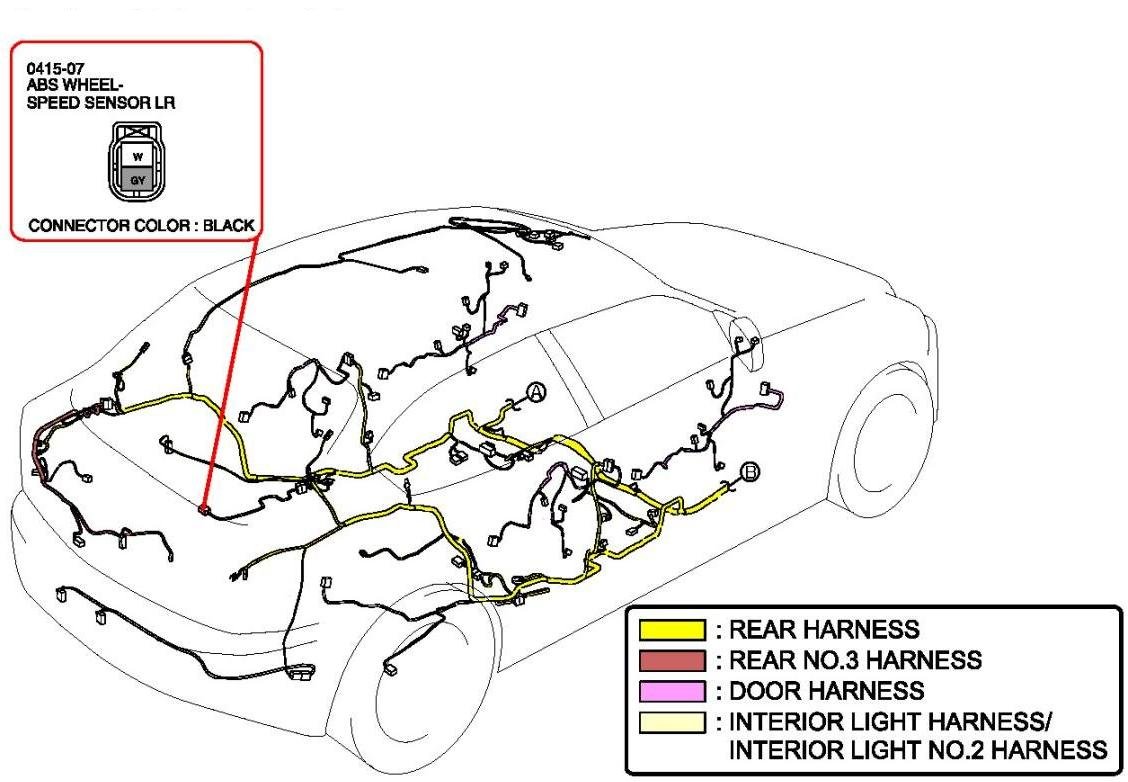

ABS Wheel Speed Sensor LR:

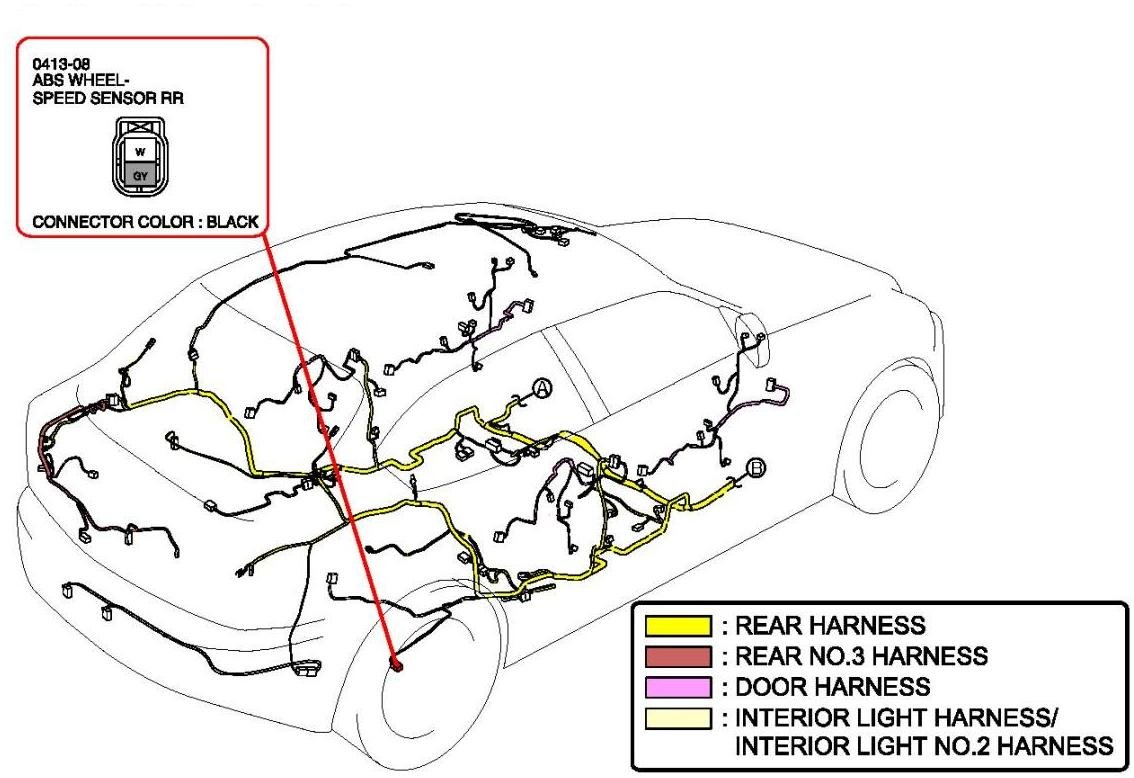

ABS Wheel Speed Sensor RR:

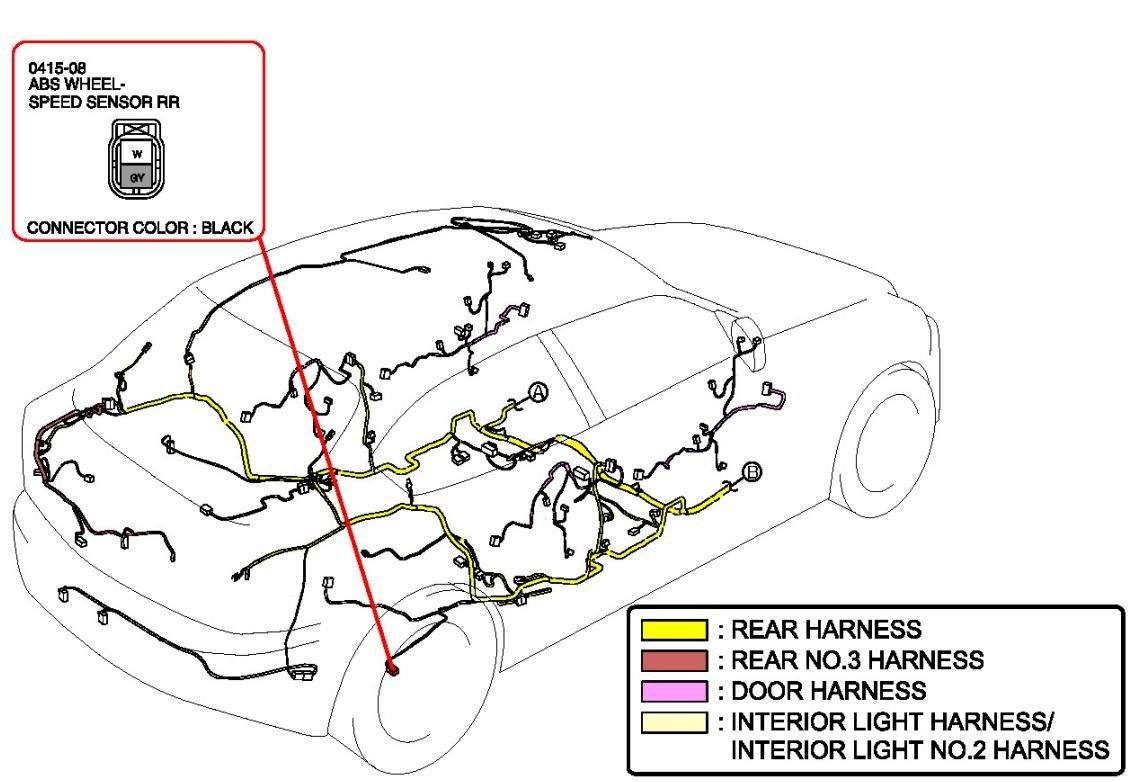

ABS Wheel Speed Sensor RR:
