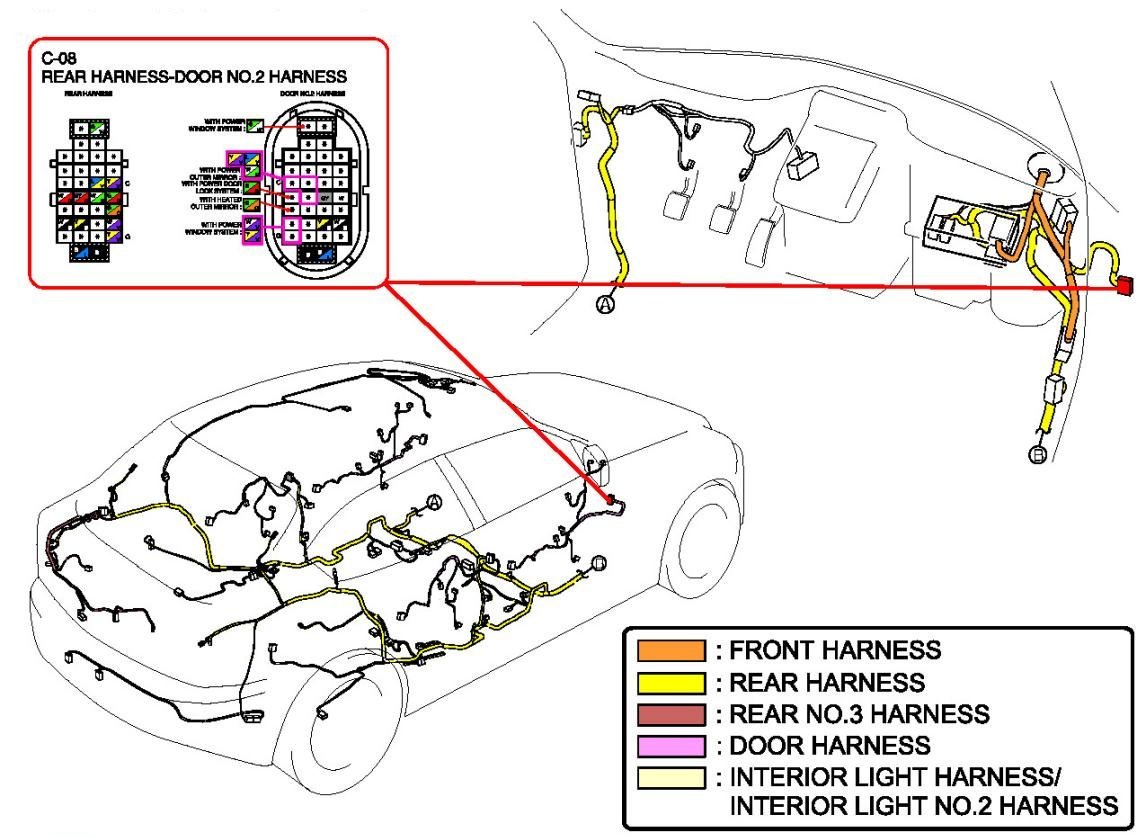

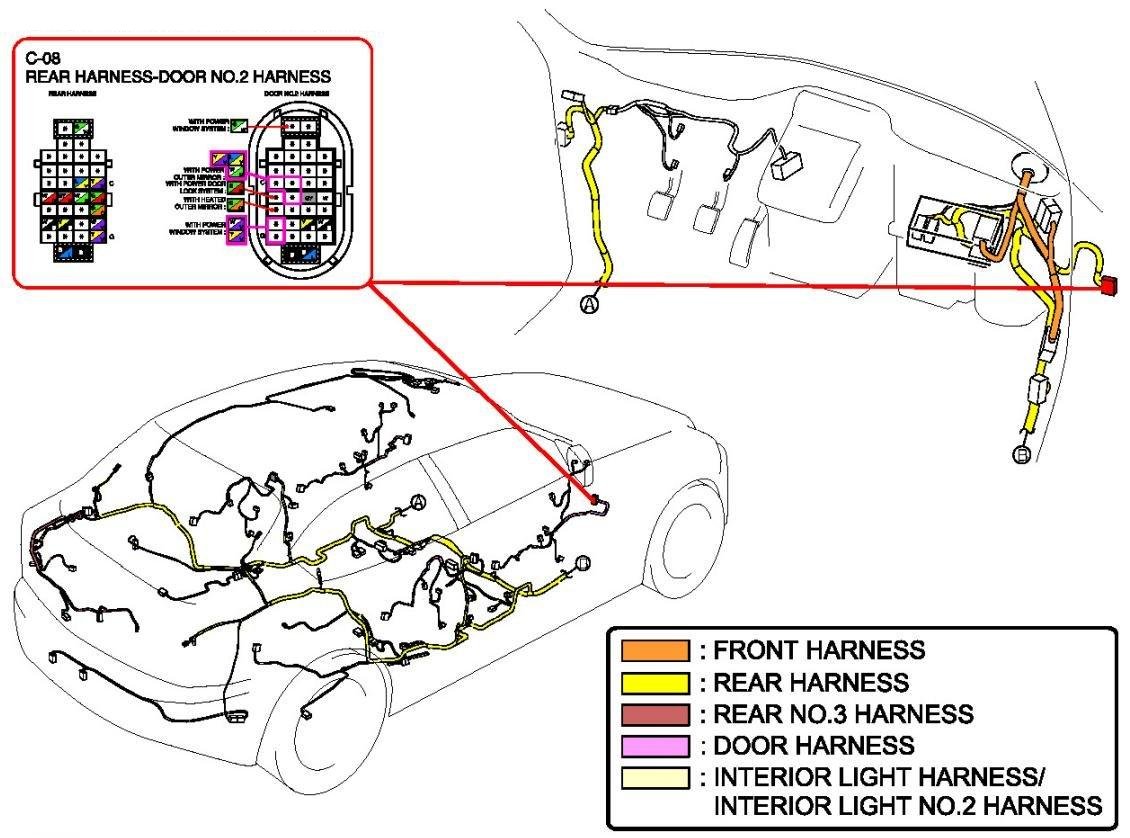

C-08 (Rear Harness-Door No.2 Harness)
C-08 (Rear Harness-Door No.2 Harness)
C-08 (Rear Harness-Door No.2 Harness):
C-08 (Rear Harness-Door No.2 Harness):
