Suspension Noise/Vibration

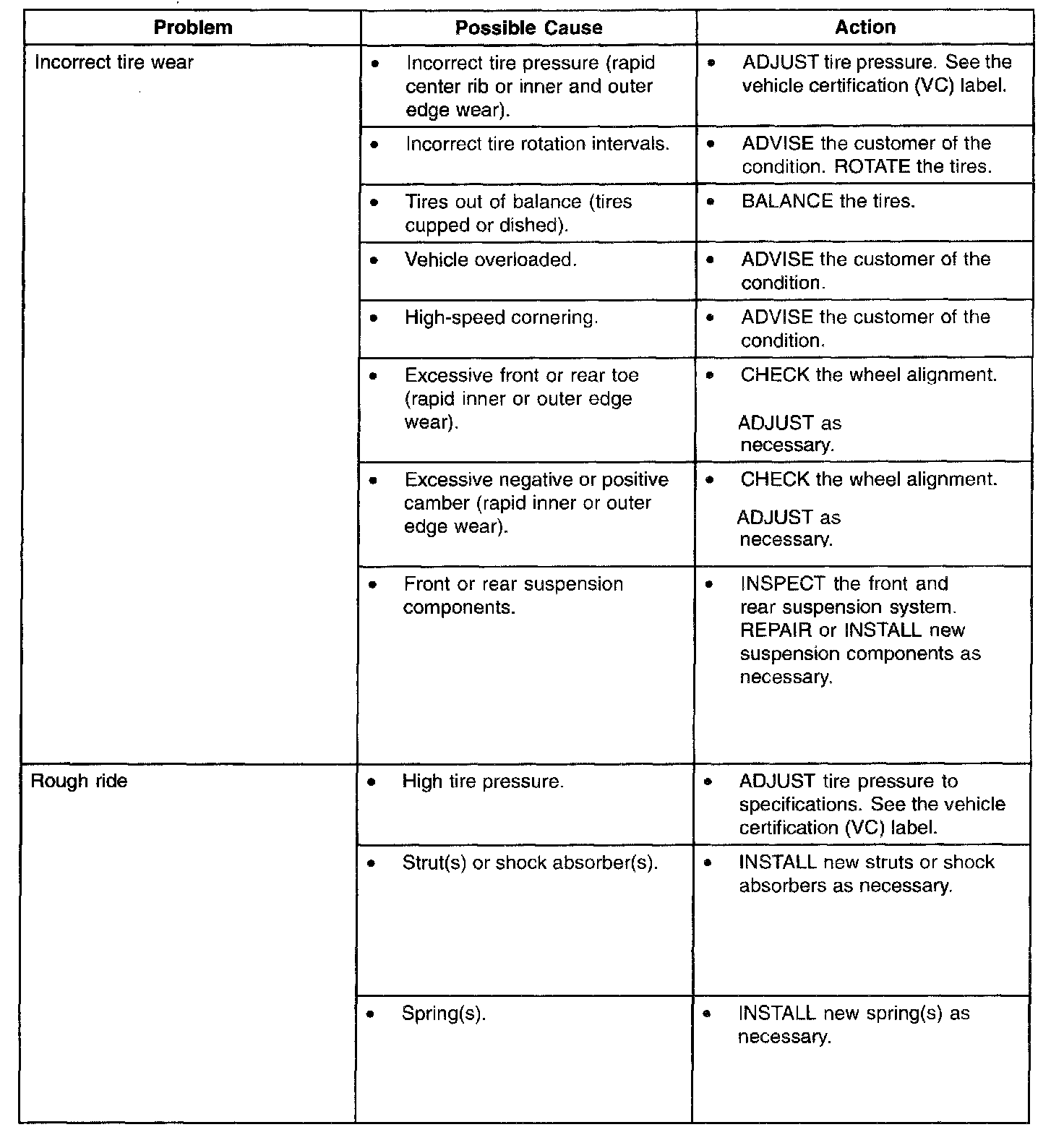

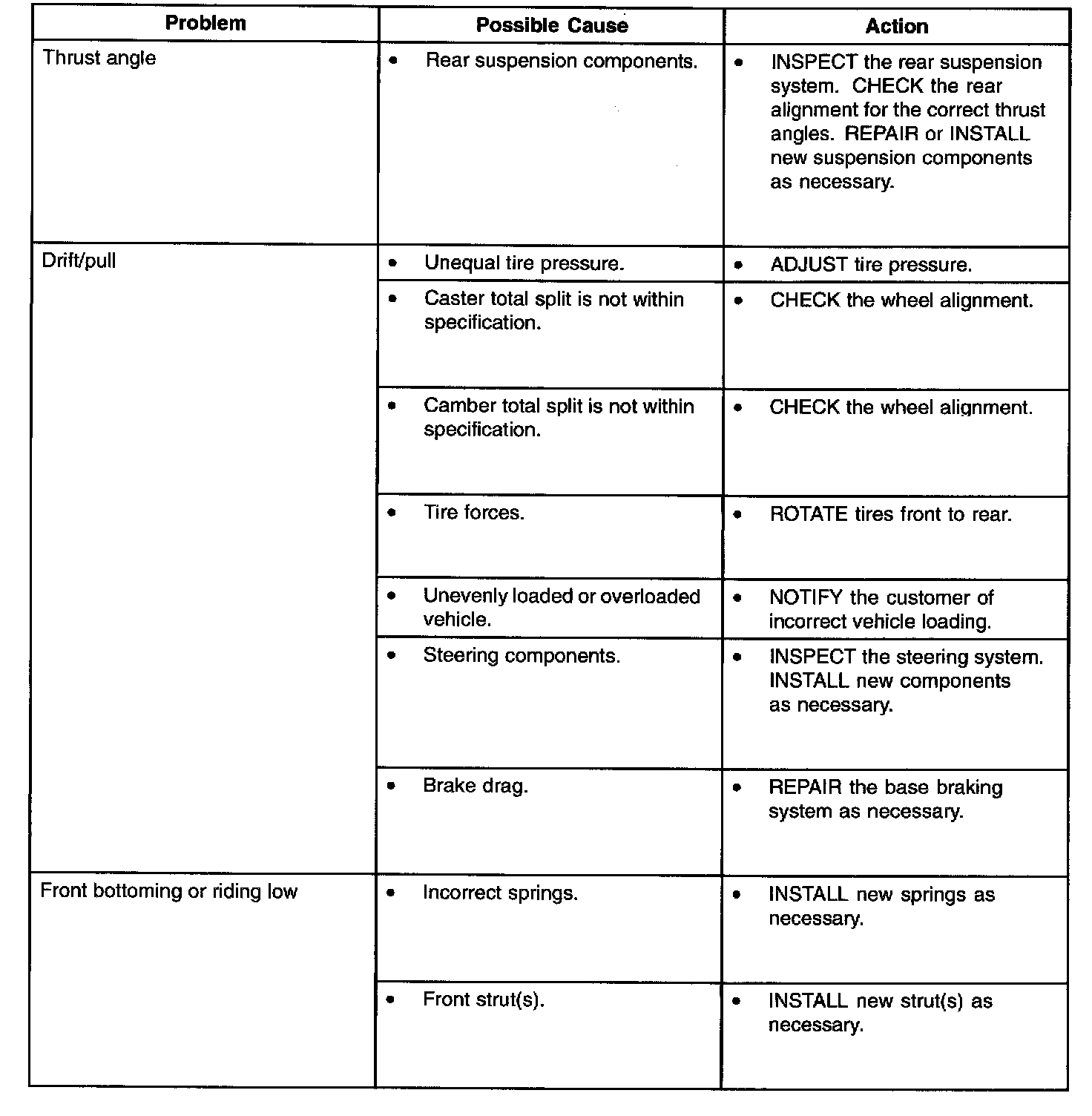

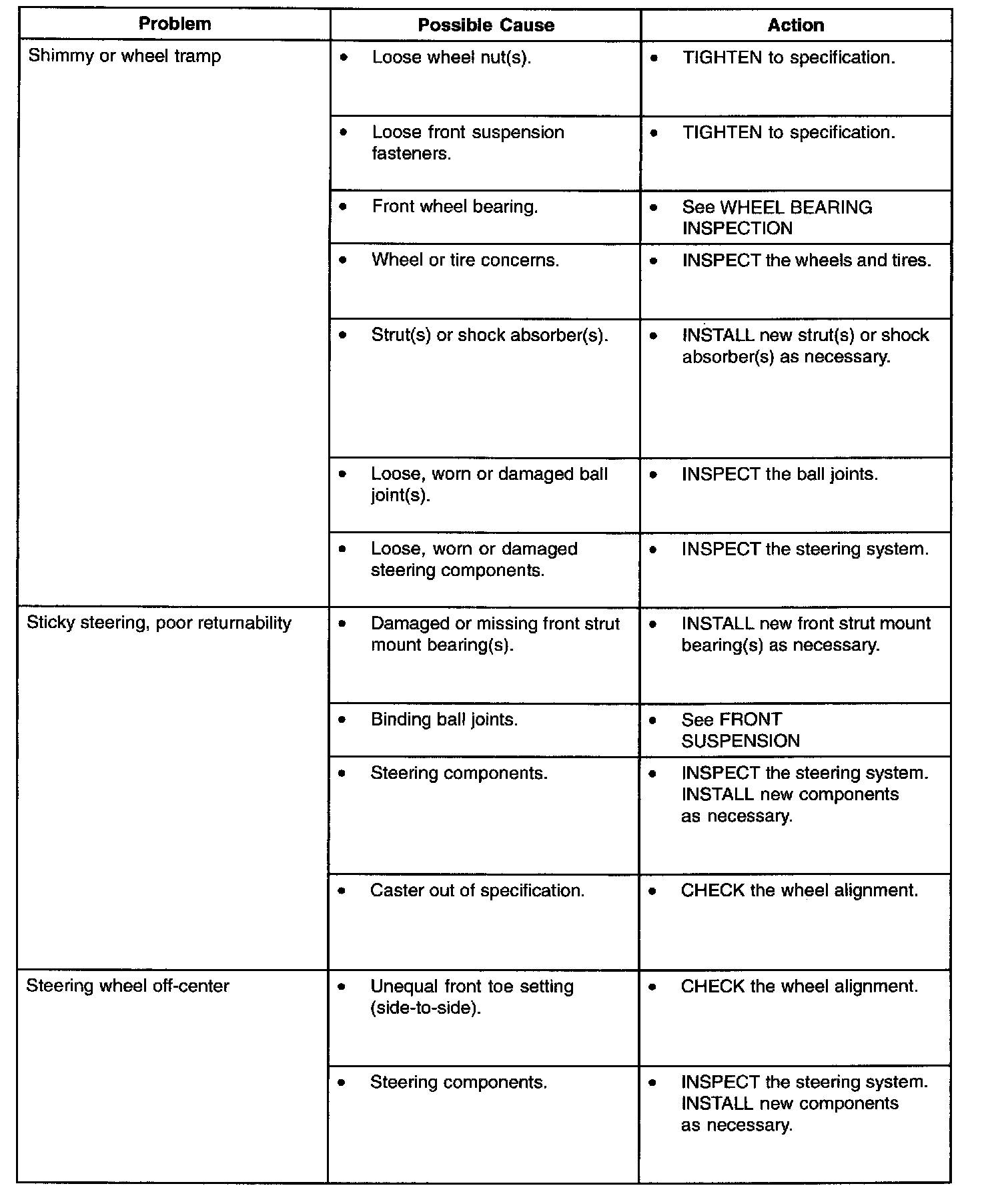

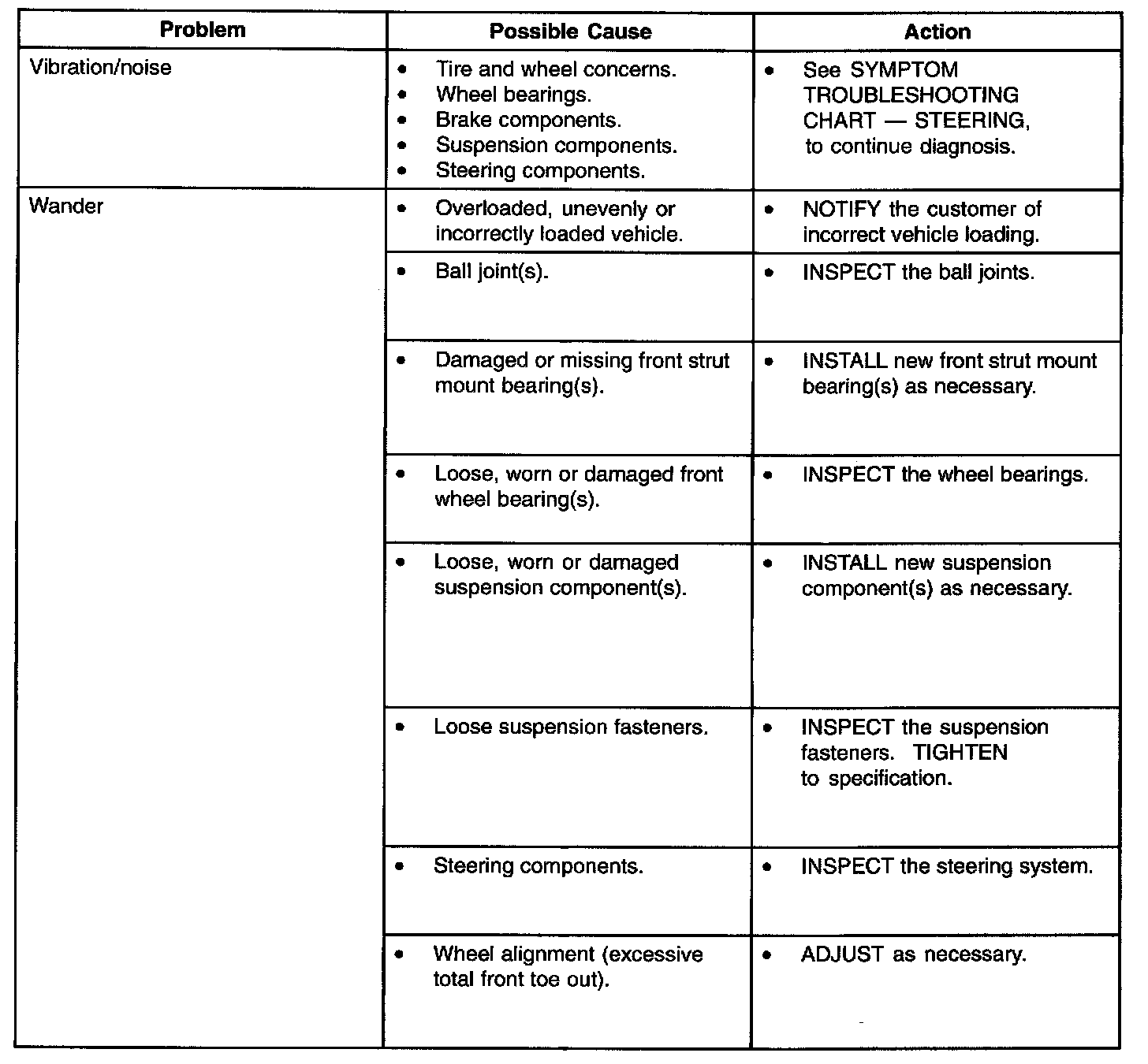

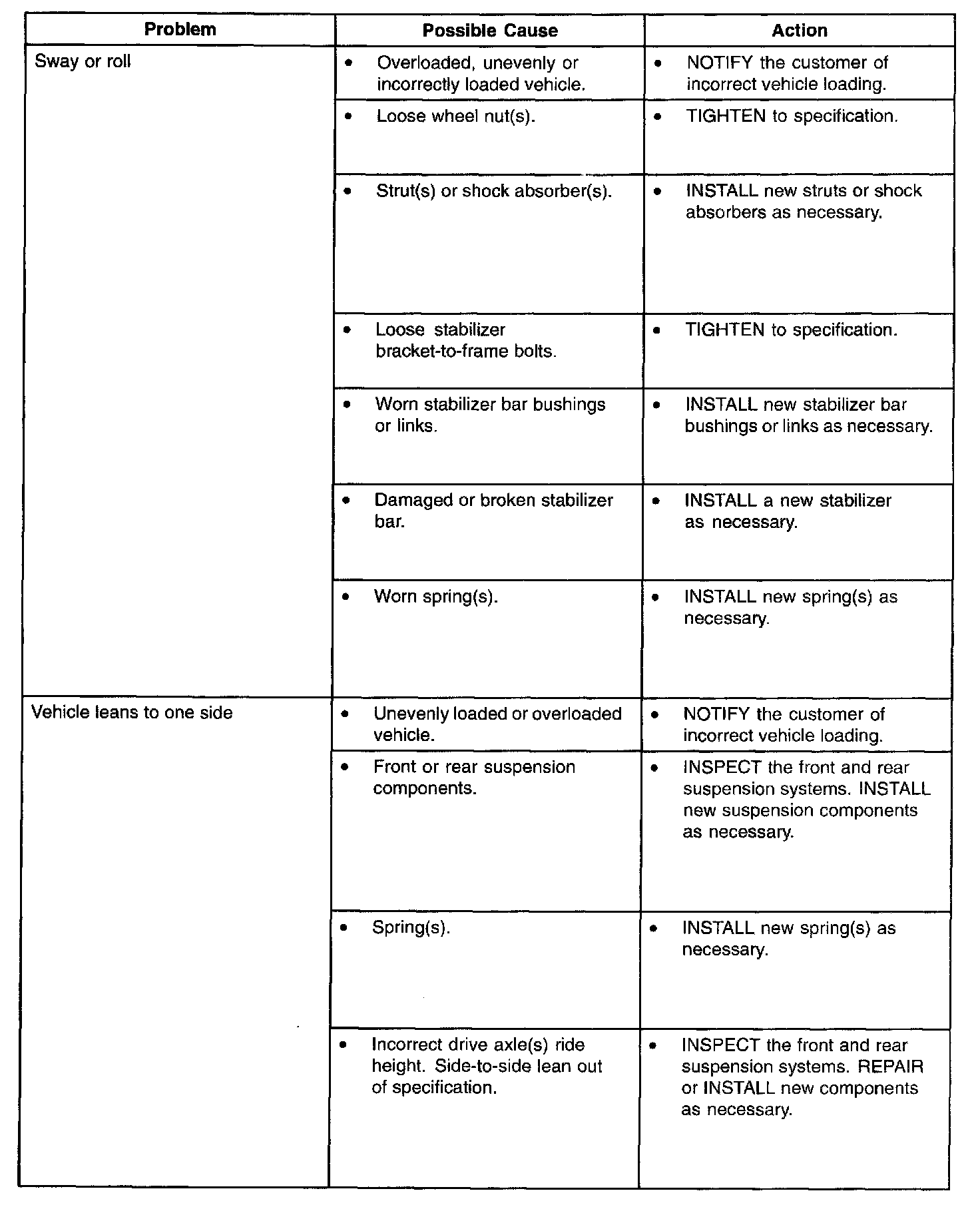

SYMPTOM TROUBLESHOOTING CHART - SUSPENSION NOISE/VIBRATION

Component Tests
Ball Joint Inspection - Front Suspension Lower Arm
Prior to carrying out this test, check the front wheel hub for excessive play.

1. Raise and support the vehicle so no load is on the front suspension lower arm.





2. Grasp the upper and lower edges of the tire.
3. Inspect for lateral movement of the steering knuckle.
1. Push and then pull on the tire and wheel assembly.
2. Inspect for movement at the ball joint.
4. Install a new front suspension lower arm if the ball joint movement exceeds 0.794 mm (1/32 inch).
