Home >> Mazda >> 2006 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Occupant Sensor >> Locations >> Component Locations

Component Locations

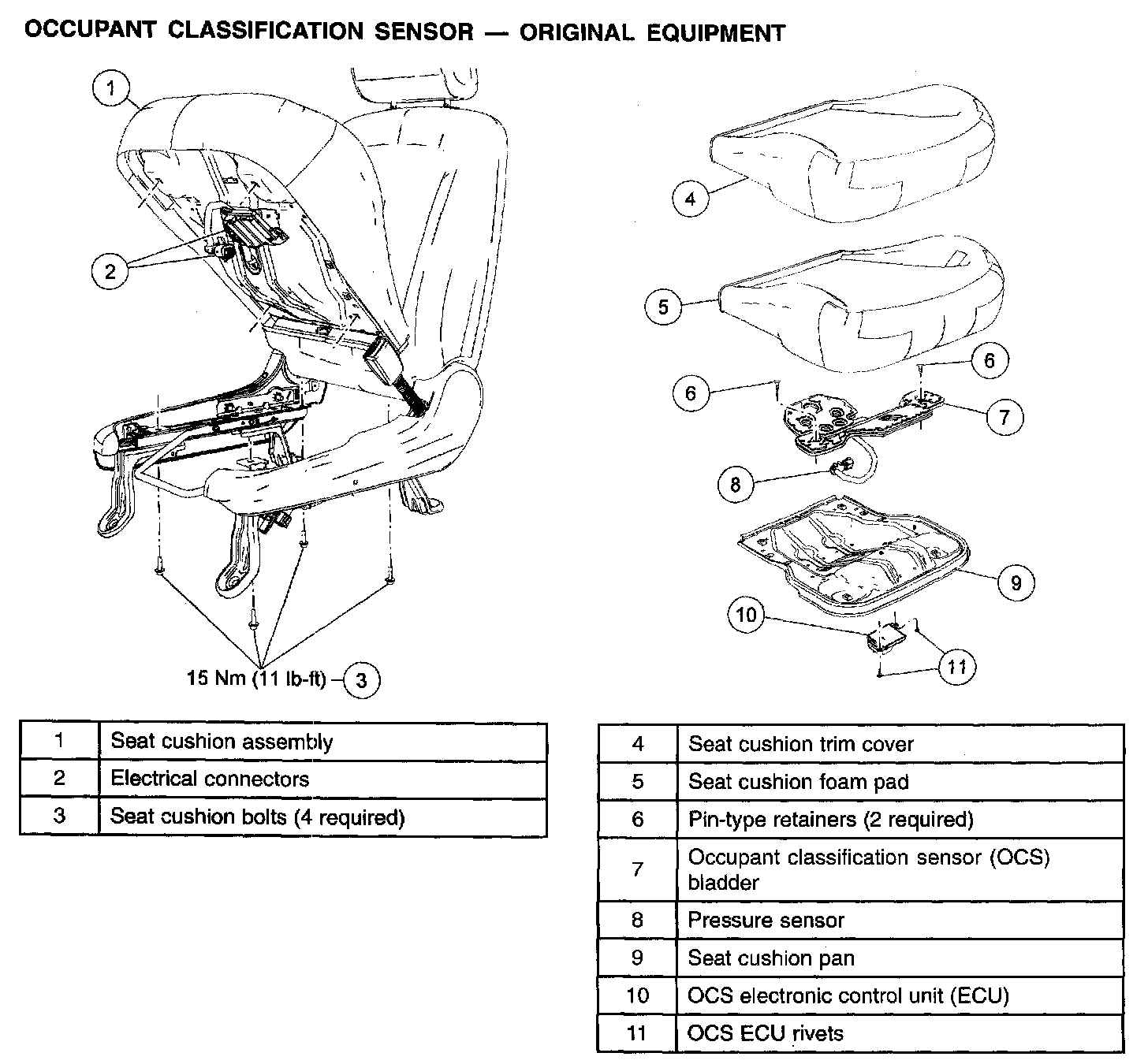

Occupant Classification Sensor - Original Equipment:

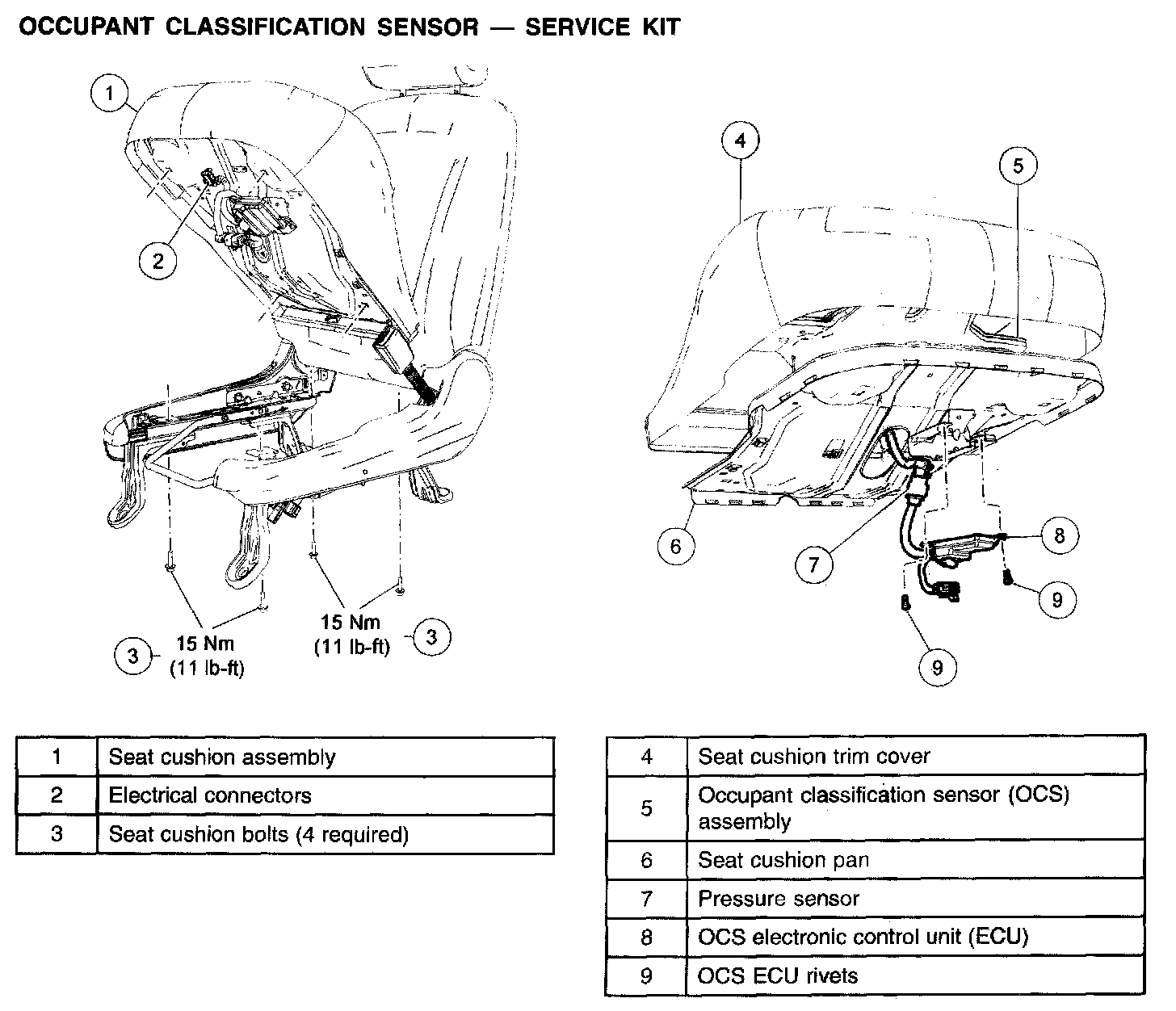

Occupant Classification Sensor - Service Kit:
