Home >> Mazda >> 2006 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Motor Position Sensor >> Locations

Power Seat Motor Position Sensor: Locations

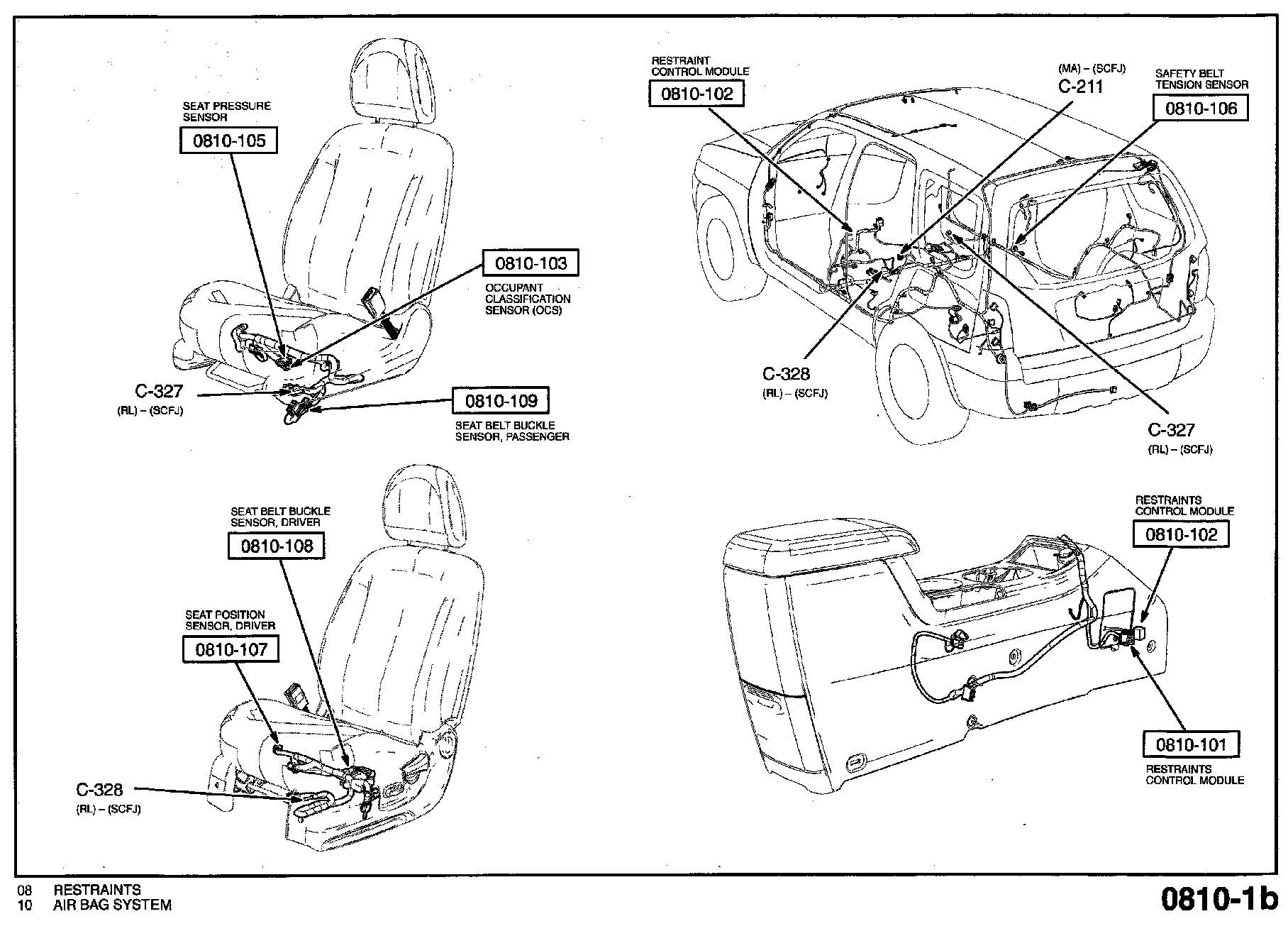

Routing View 0810-1b:

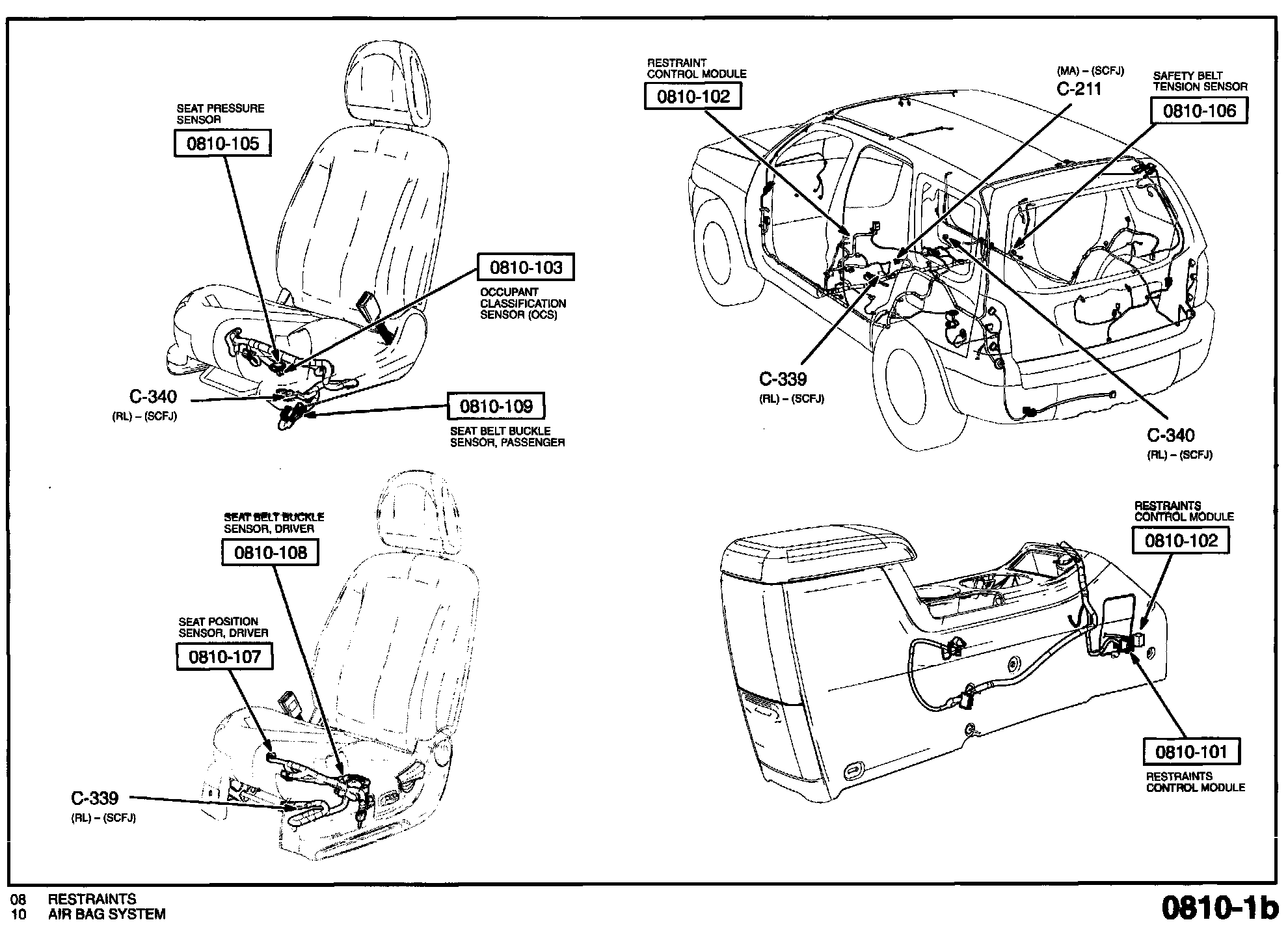

Routing View 0810-1b:
