Home >> Mazda >> 2006 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Backup Lamp Switch >> Locations

Backup Lamp Switch: Locations

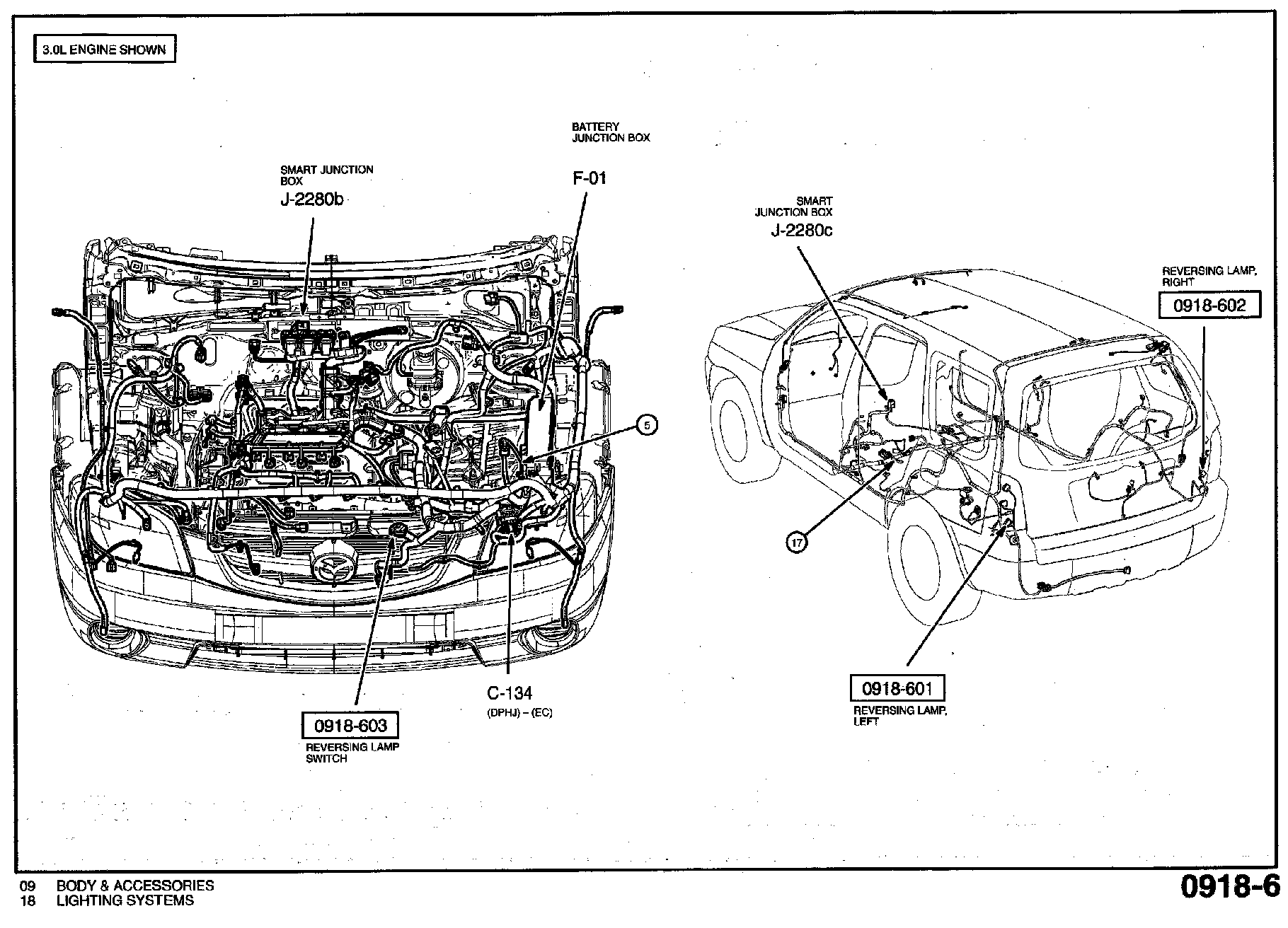

Routing View 0918-6:

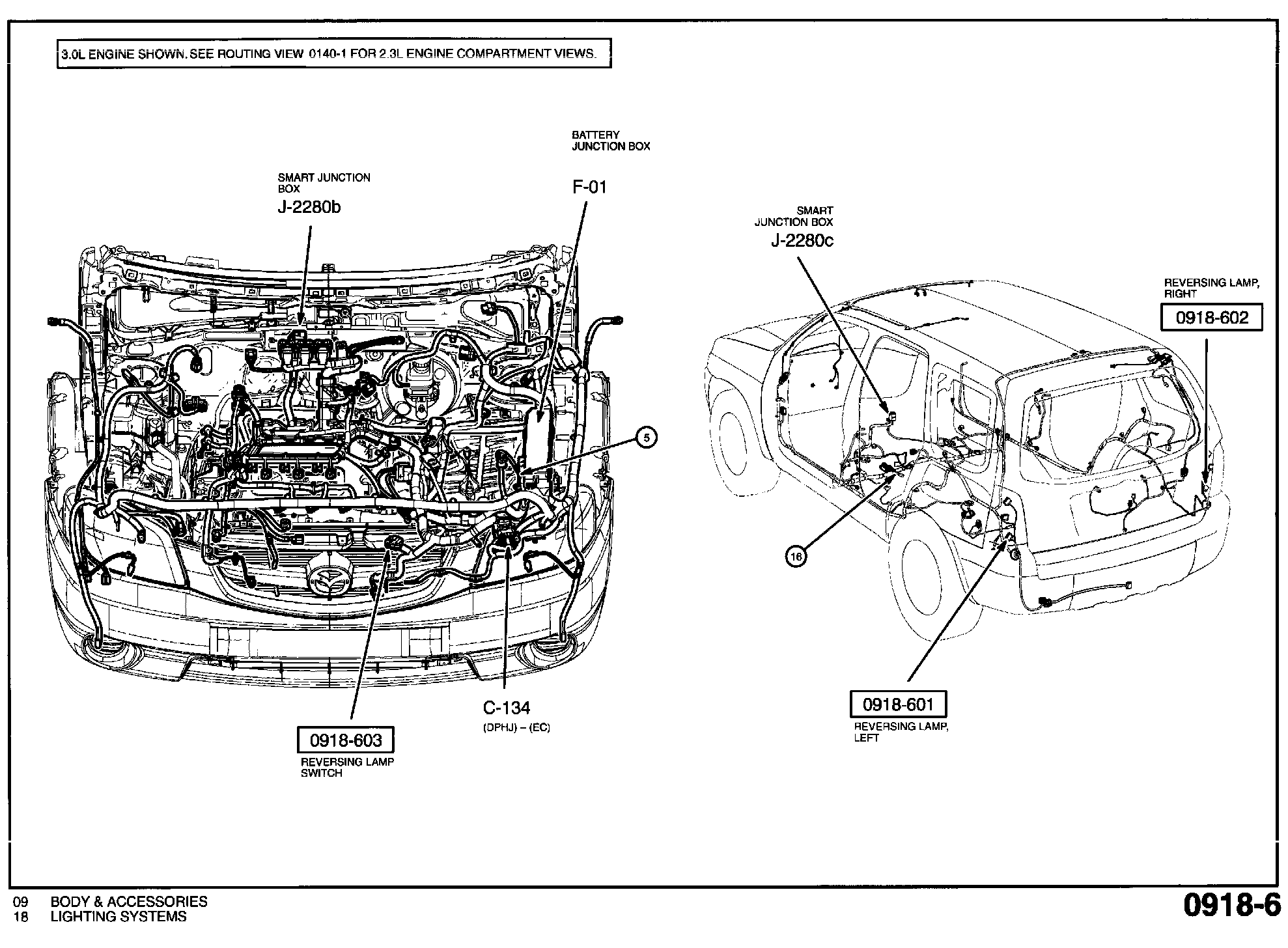

Routing View 0918-6:
