Description of On-Board Diagnostics

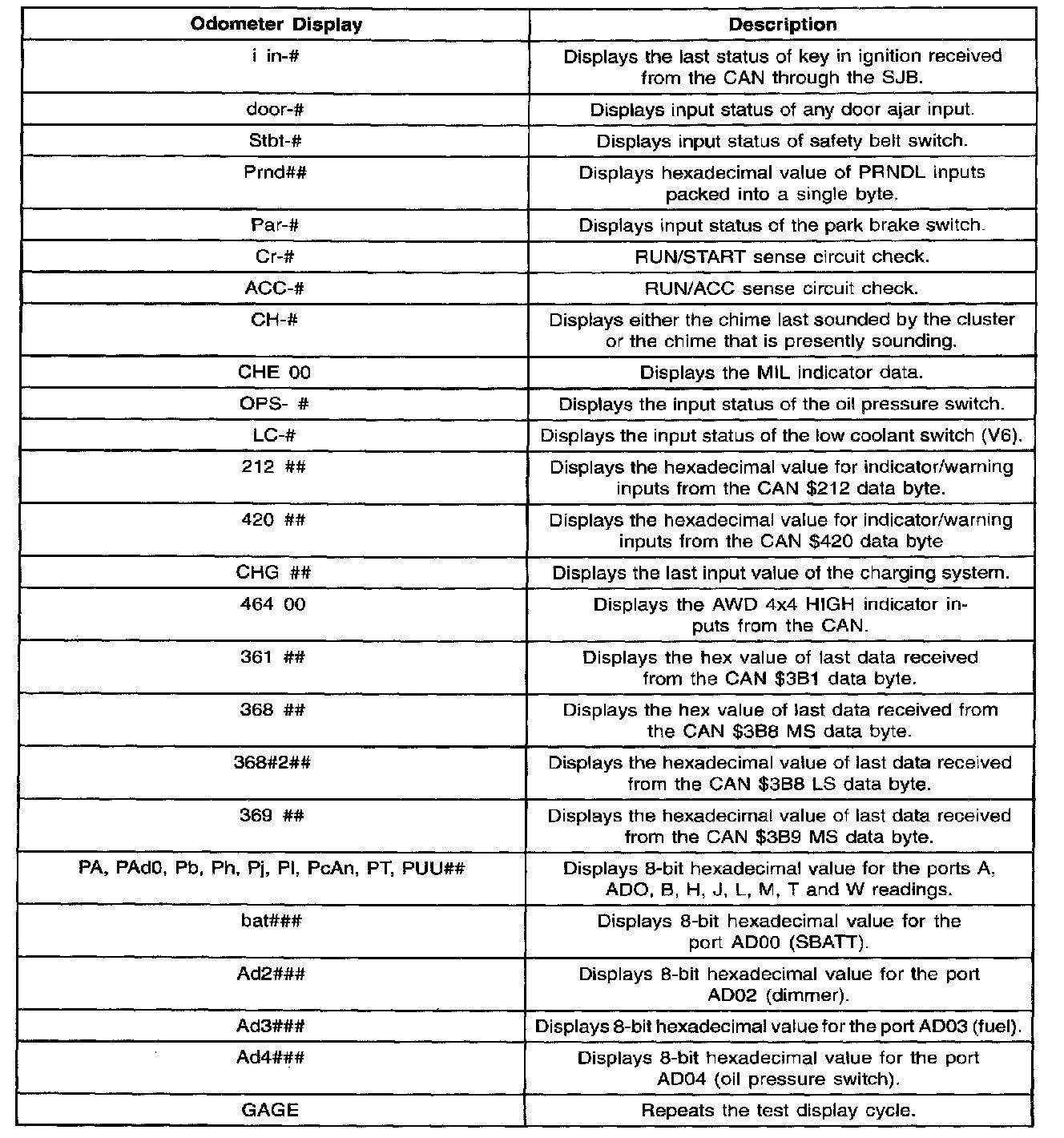

Instrument Cluster Self-Diagnostic ModeInstrument Cluster Self-Diagnostic Mode Part 1:

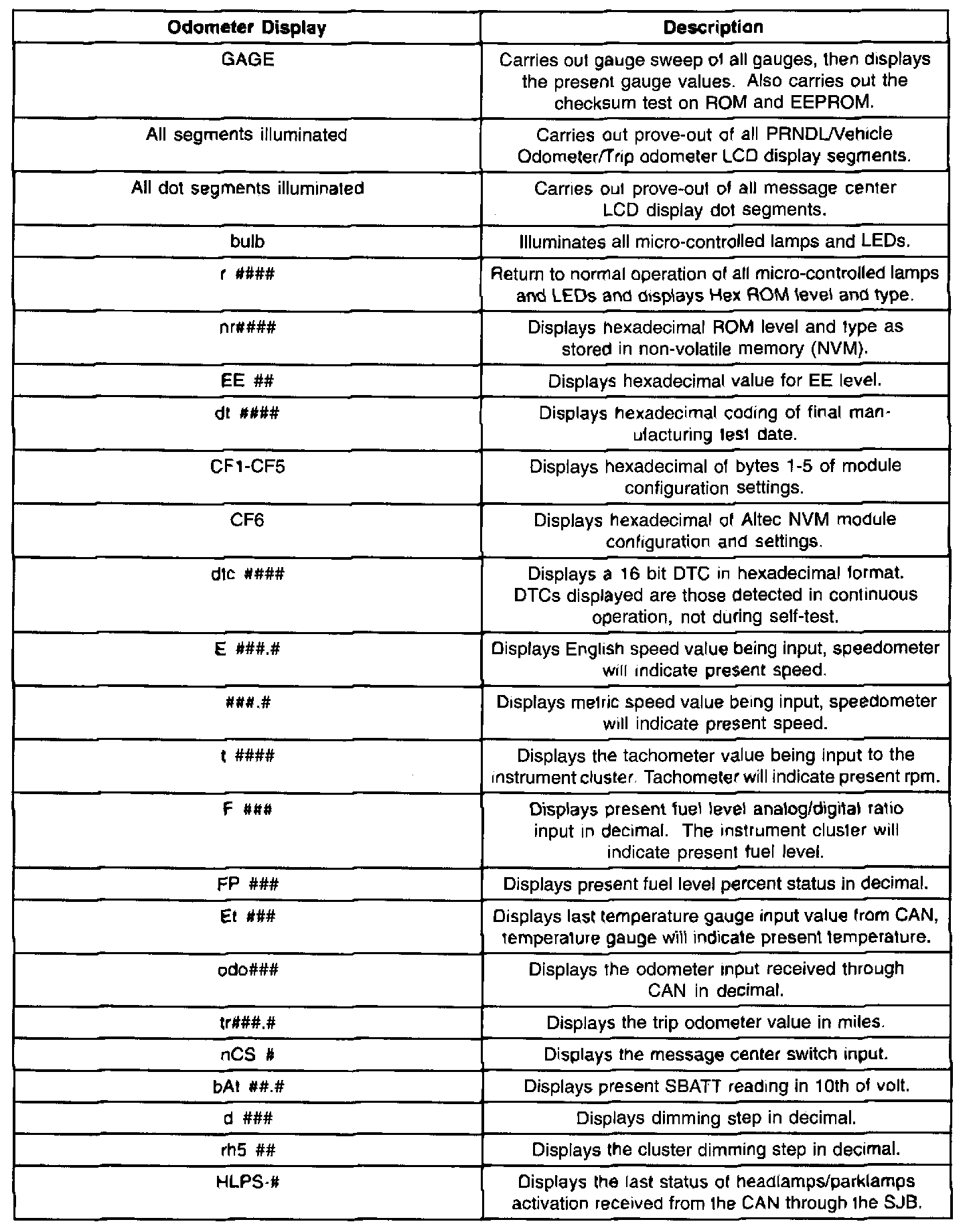

Instrument Cluster Self-Diagnostic Mode Part 2:
Instrument Cluster Self-Diagnostic Mode Part 3:
To enter the instrument cluster self-diagnostic mode with the engine off, press and hold the trip/odometer reset button. Turn the ignition switch to the RUN position and hold until the display indicates TEST usually within 3 to 5 seconds. Press the trip/odometer reset button once to advance through each stage of the self-test.
To exit the instrument cluster self-test mode, turn the ignition switch to the OFF position. If no DTCs related to the concern are retrieved, GO to Symptom Chart to continue diagnostics. Instrument Cluster
