Home >> Mazda >> 2006 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0918-3a (License Plate Light/Parking Light/Tail Light)

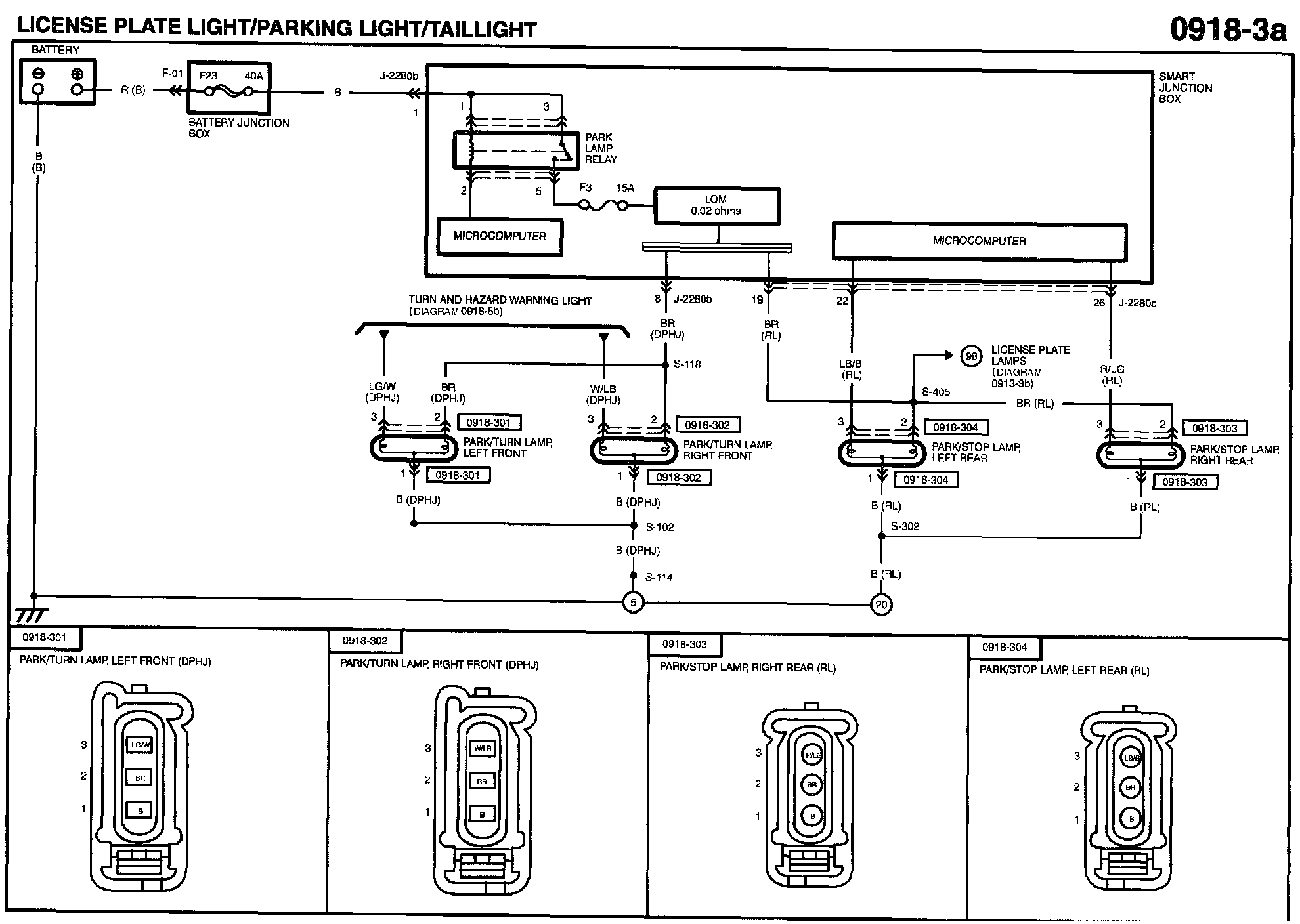

Diagram 0918-3a (License Plate Light/Parking Light/Tail Light)

Diagram 0918-3a:
