No.19 Excessive Shift Shock From N to D or N to R Position

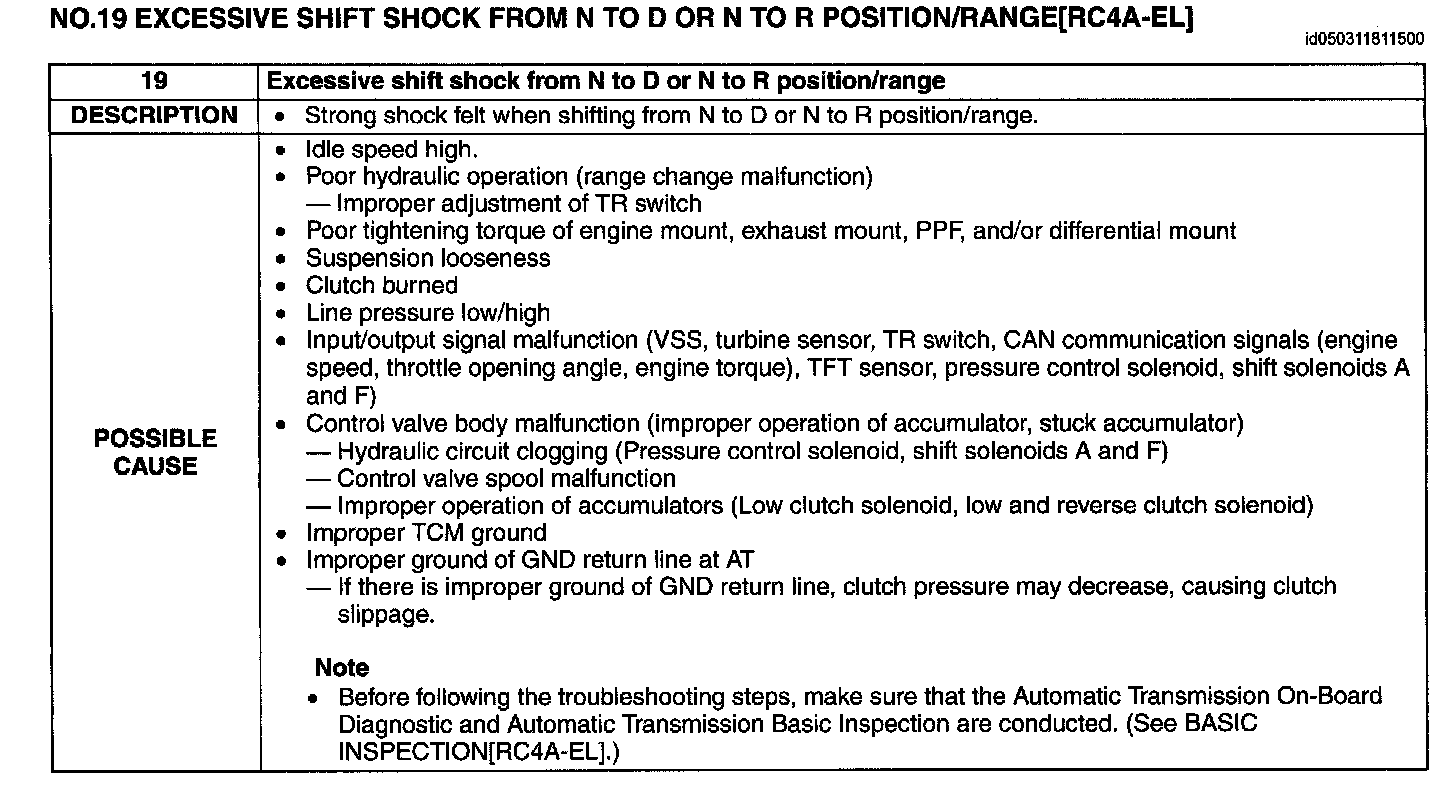

NO.19 EXCESSIVE SHIFT SHOCK FROM N TO D OR N TO R POSITION [RC4A-EL]

No.19 Excessive Shift Shock From N to D or N to R Position [RC4A-EL]:

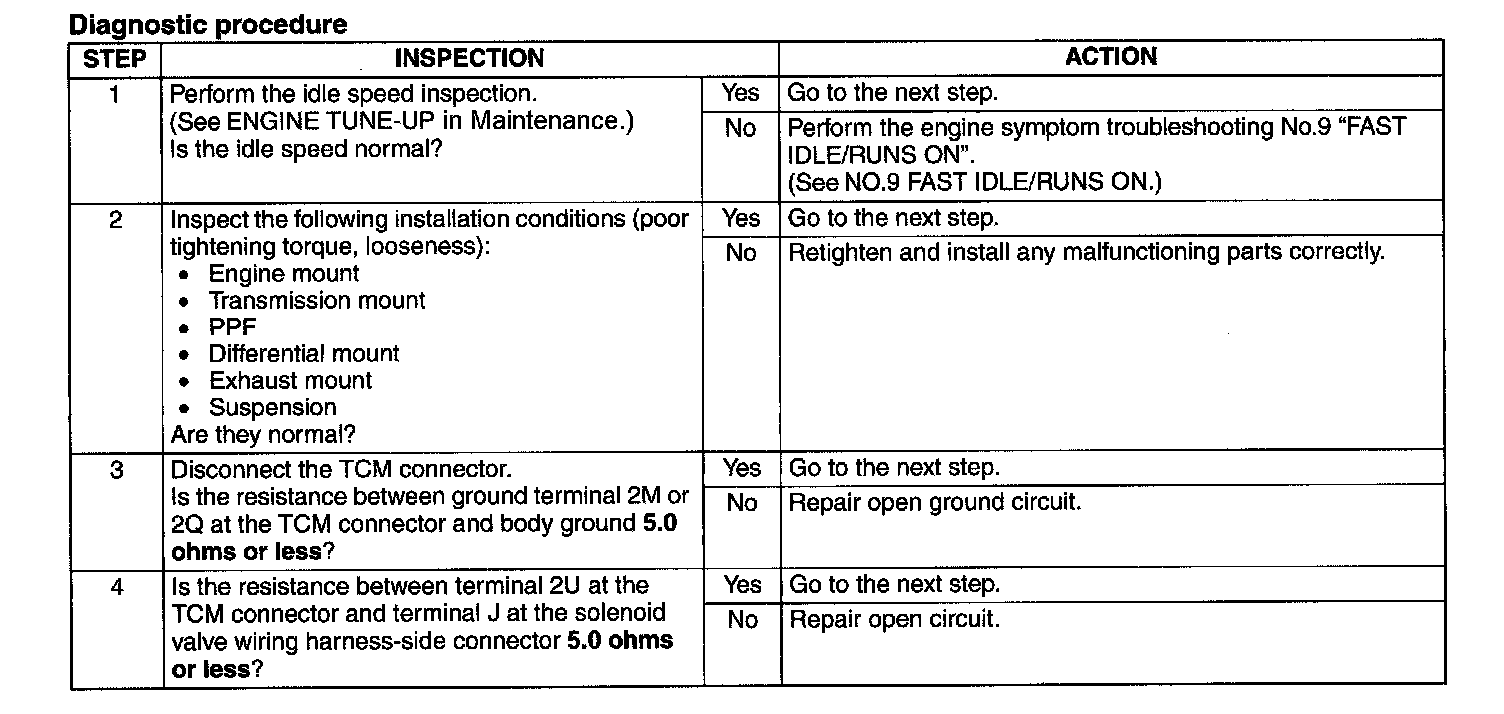

Step 1-Step 4:

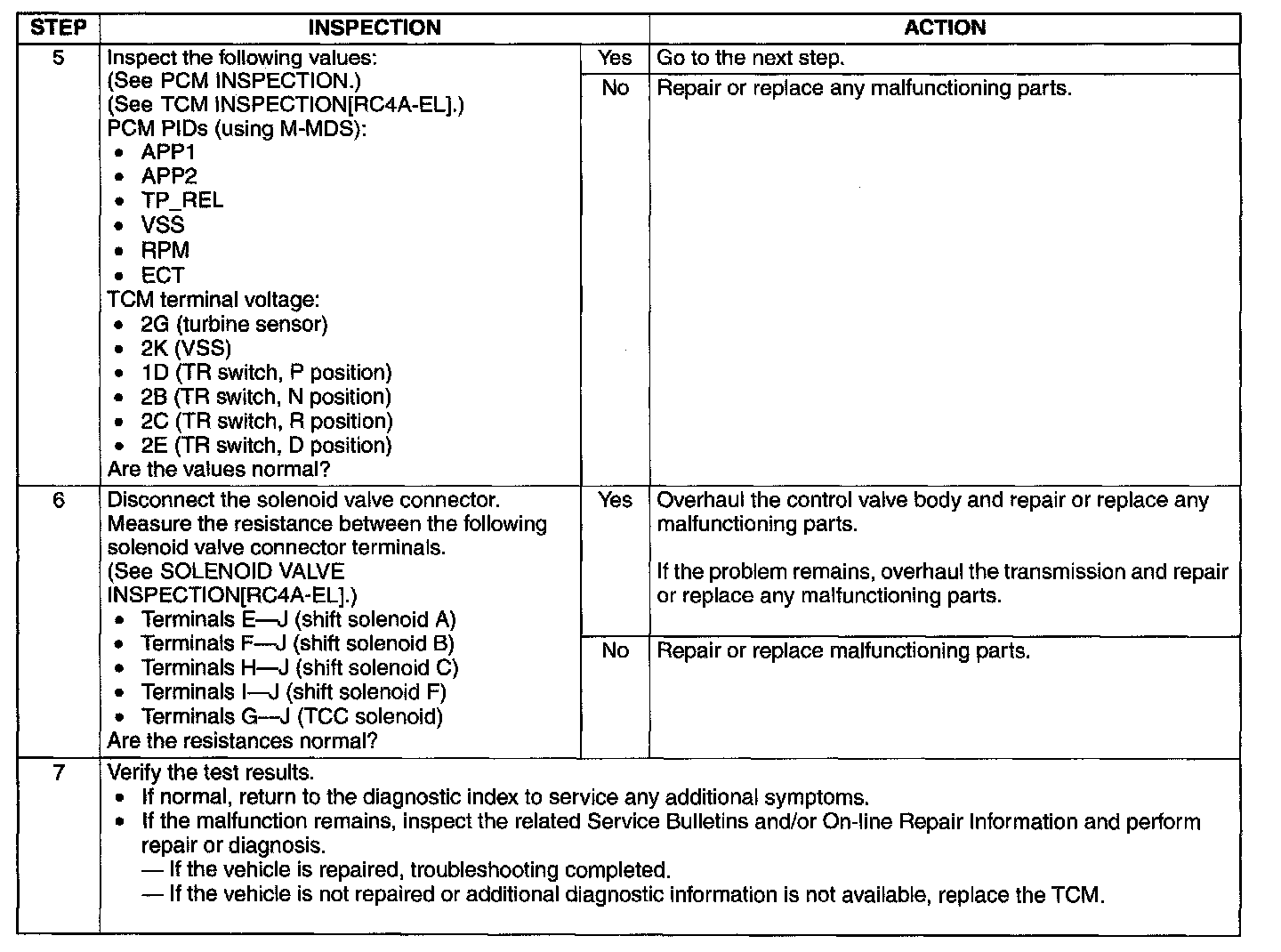

Step 5-Step 7:
