Ambient Temperature Sensor / Switch HVAC: Locations

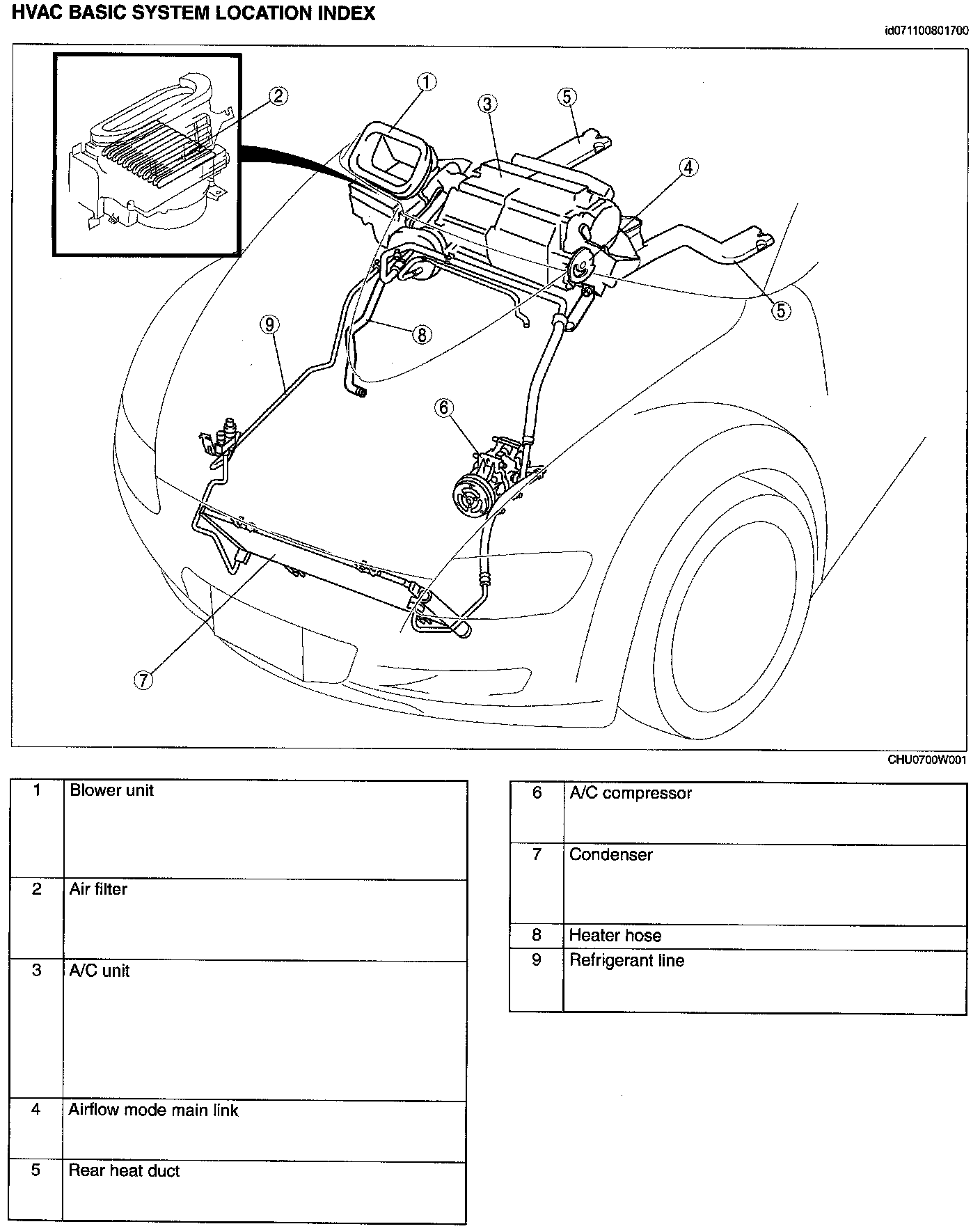

HVAC Basic System Location Index:

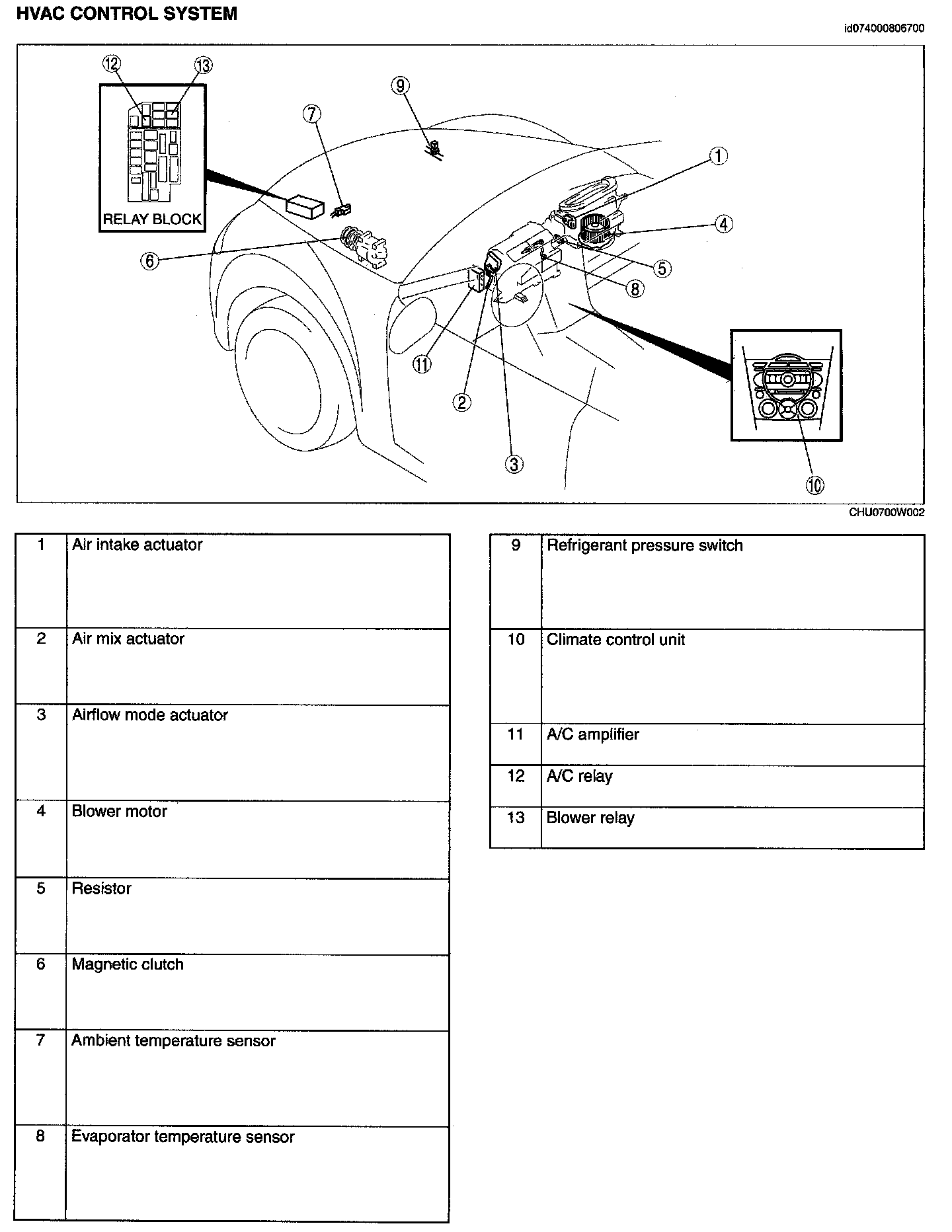

HVAC Control System:
