Headlamp Switch: Testing and Inspection

LIGHT SWITCH INSPECTION

1. Remove the column cover.
2. Remove the ignition key illumination.
3. Remove the light switch.

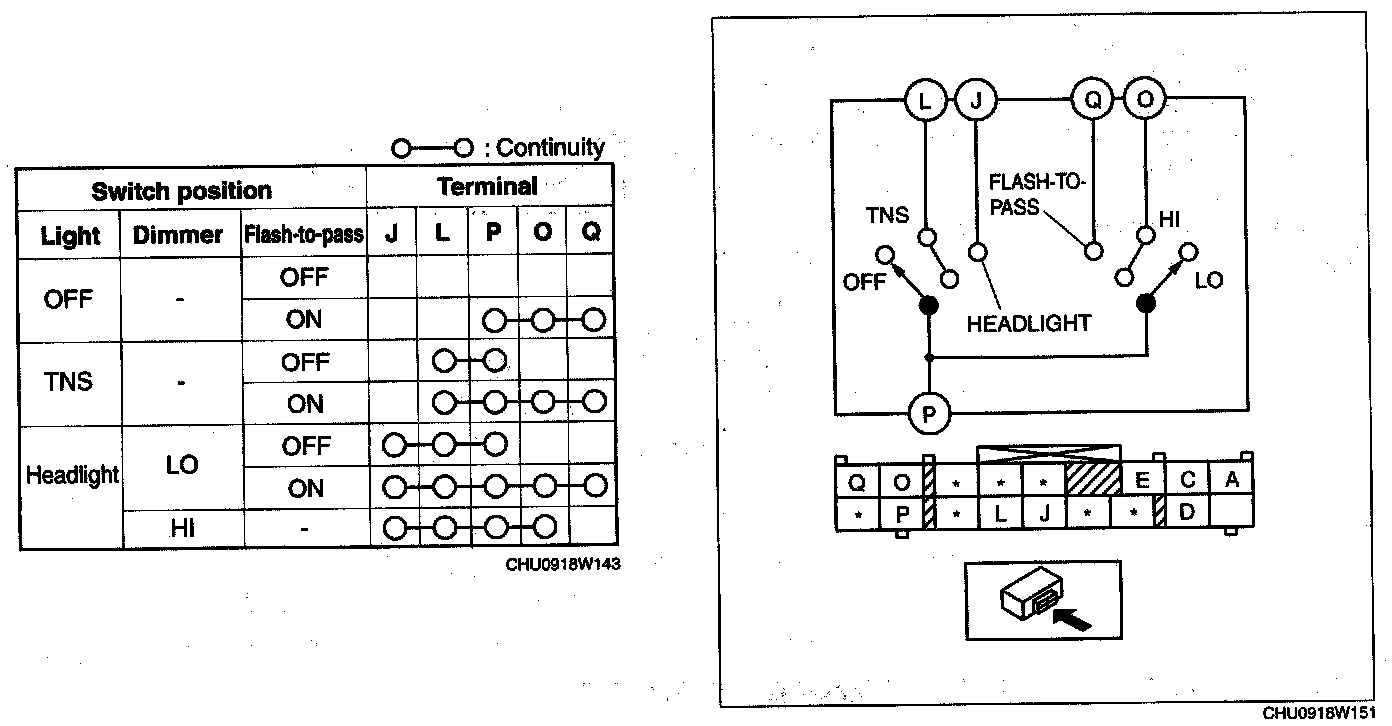

4. Verify that the continuity between the light switch terminals is as indicated in the table.

Headlight Switch




- If not as indicated in the table, replace the light switch.

Turn Switch:

Turn Switch
