Home >> Mazda >> 2006 >> RX8 2RTR-1.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0919- 2 (Head Light Cleaner System)

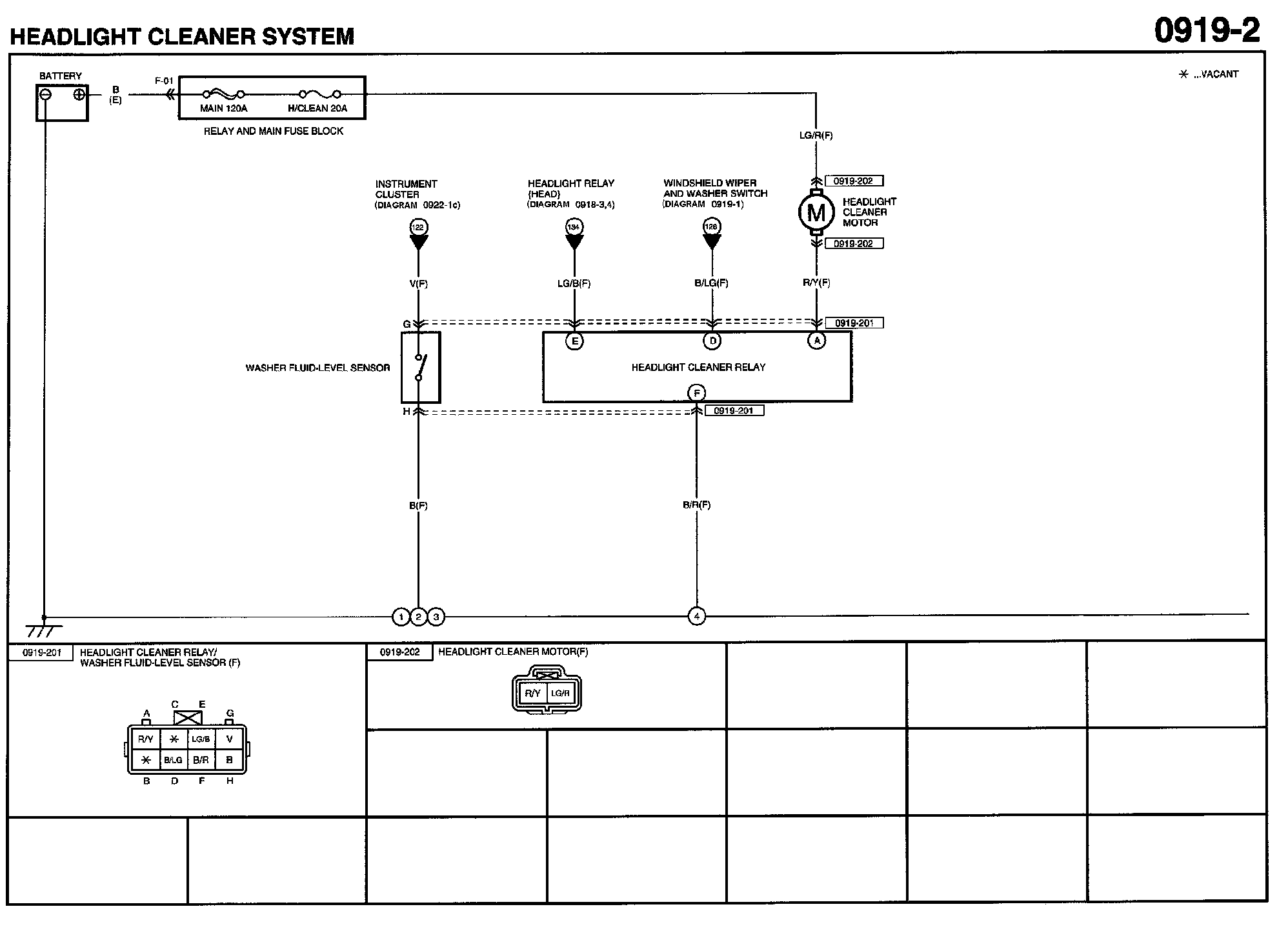

Diagram 0919- 2 (Head Light Cleaner System)

Diagram 0919-2:
