Diagram 0918-6 (License Plate Light / Parking Light / Side Marker Light / Taillight )

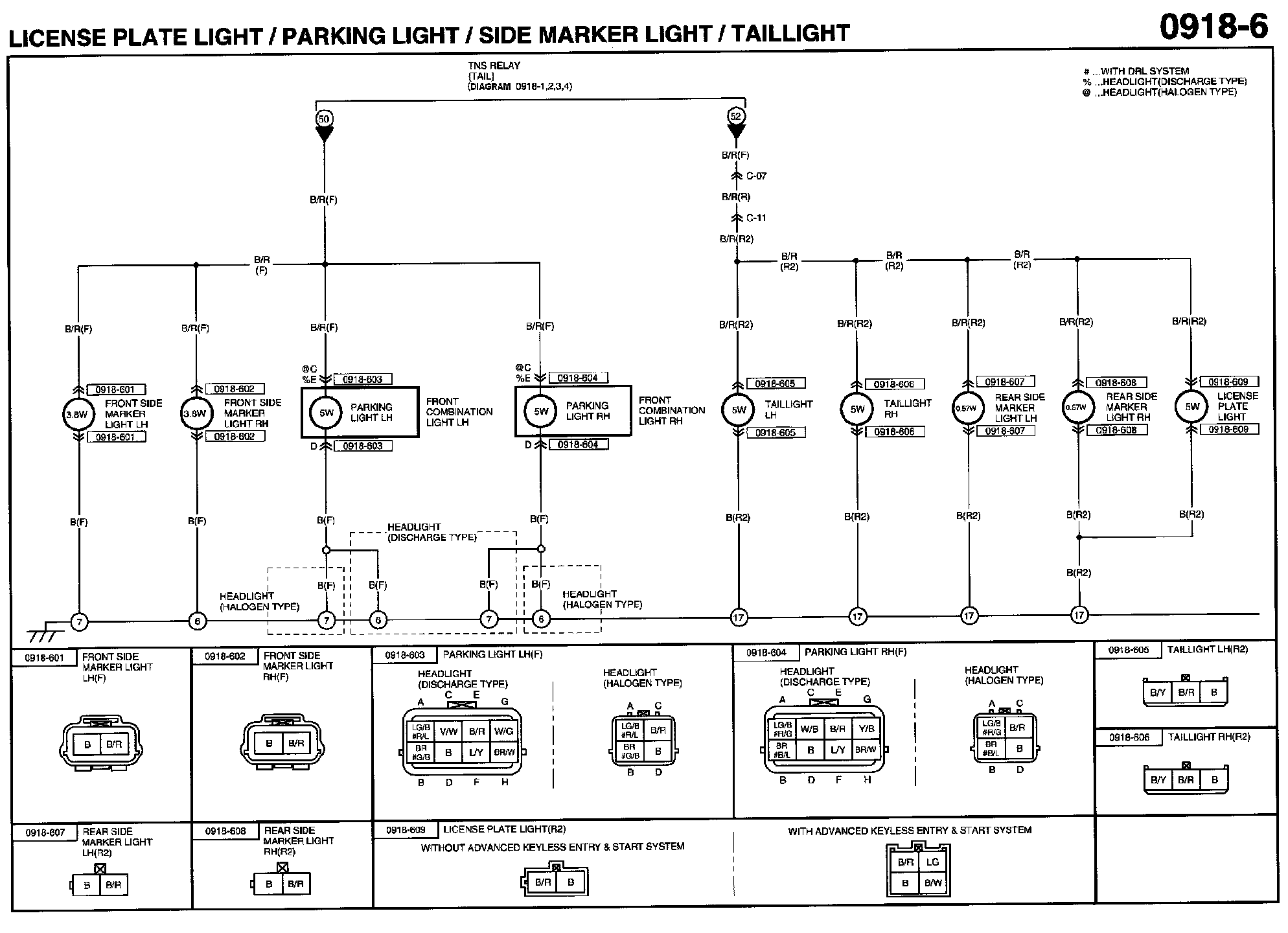

Diagram 0918-6 (License Plate Light / Parking Light / Side Marker Light / Taillight )
Diagram 0918-6:
