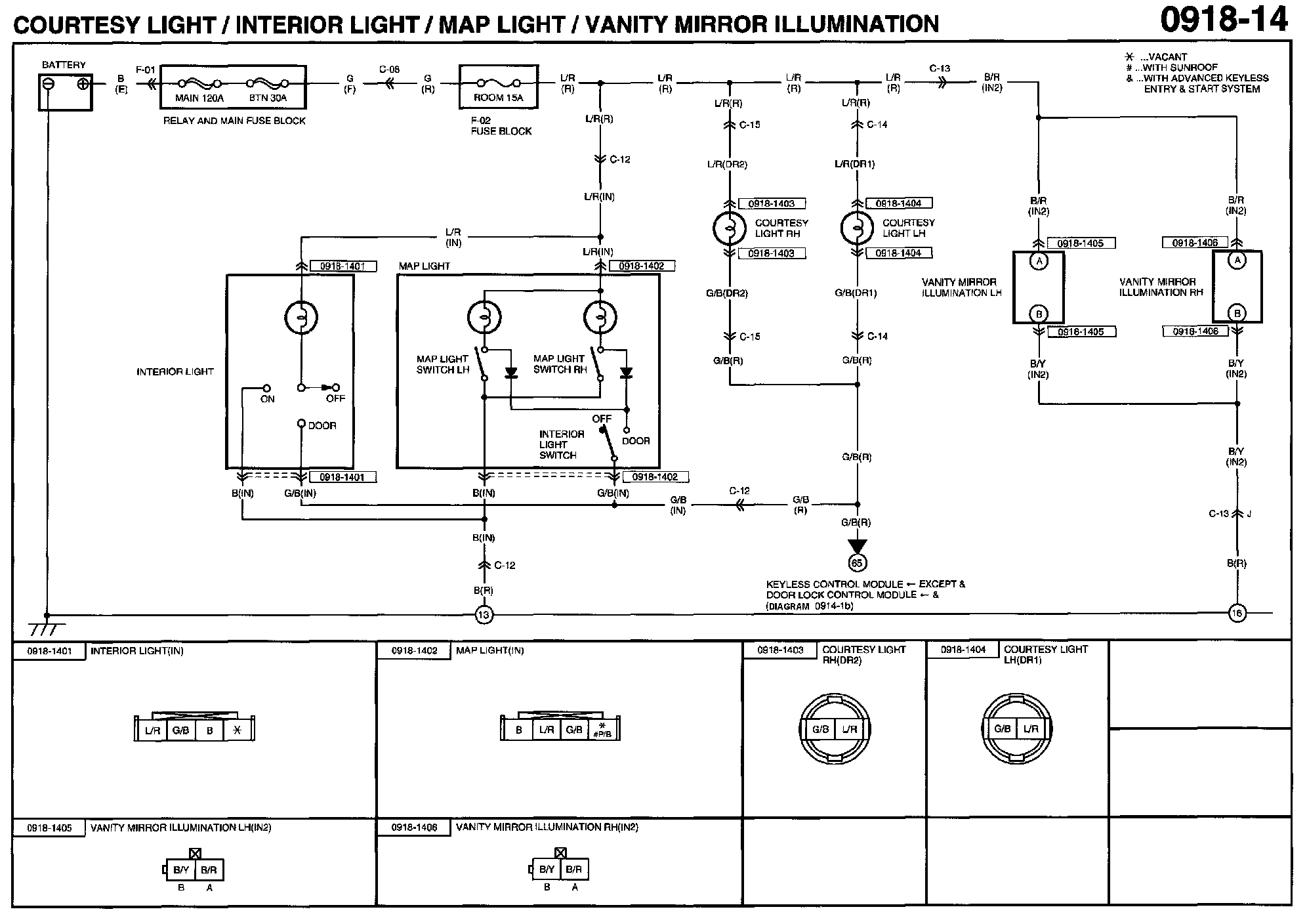

Diagram 0918- 14 (Courtesy Light / Interior Light / MAP Light / Vanity Mirror Illumination)

Diagram 0918-14:
