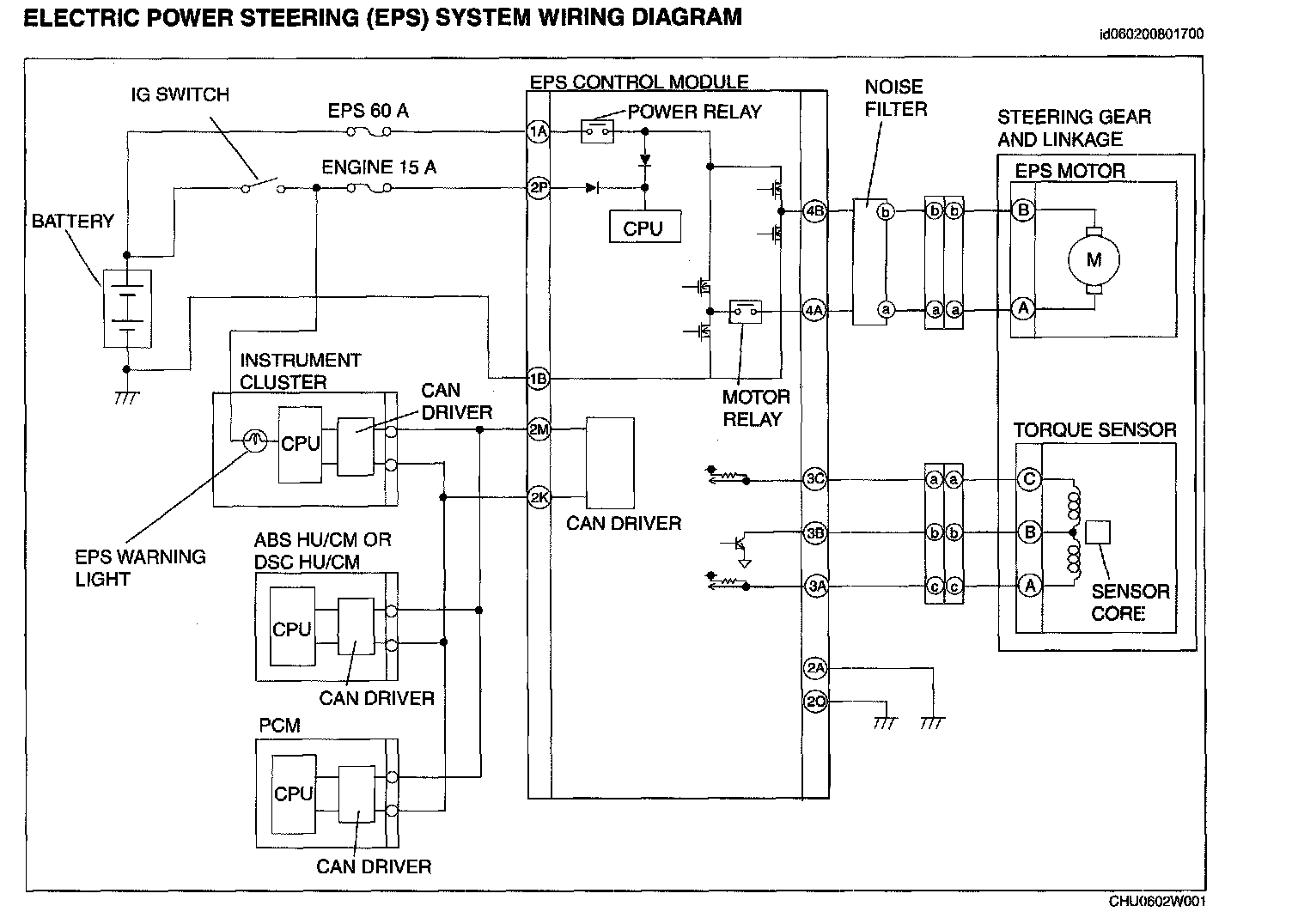

Diagram 06-2a (Electric Power Steering (EPS) System Wiring Diagram)
Diagram 06-2a (Electric Power Steering (EPS) System Wiring Diagram)
Diagram 06-2a:
