AM/FM Antenna Feeder No.2

AM/FM ANTENNA FEEDER NO.2 INSPECTION

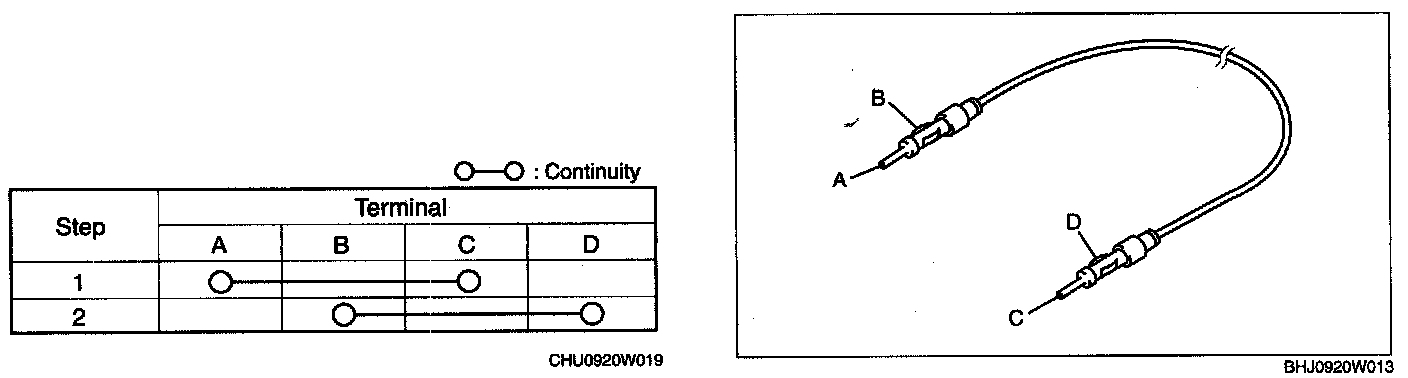

1. Verify that the continuity is as indicated in the table.
- If not as indicated in the table, replace the AM/FM antenna feeder No.2.
