Quick Diagnostic Table [Instrument Cluster]

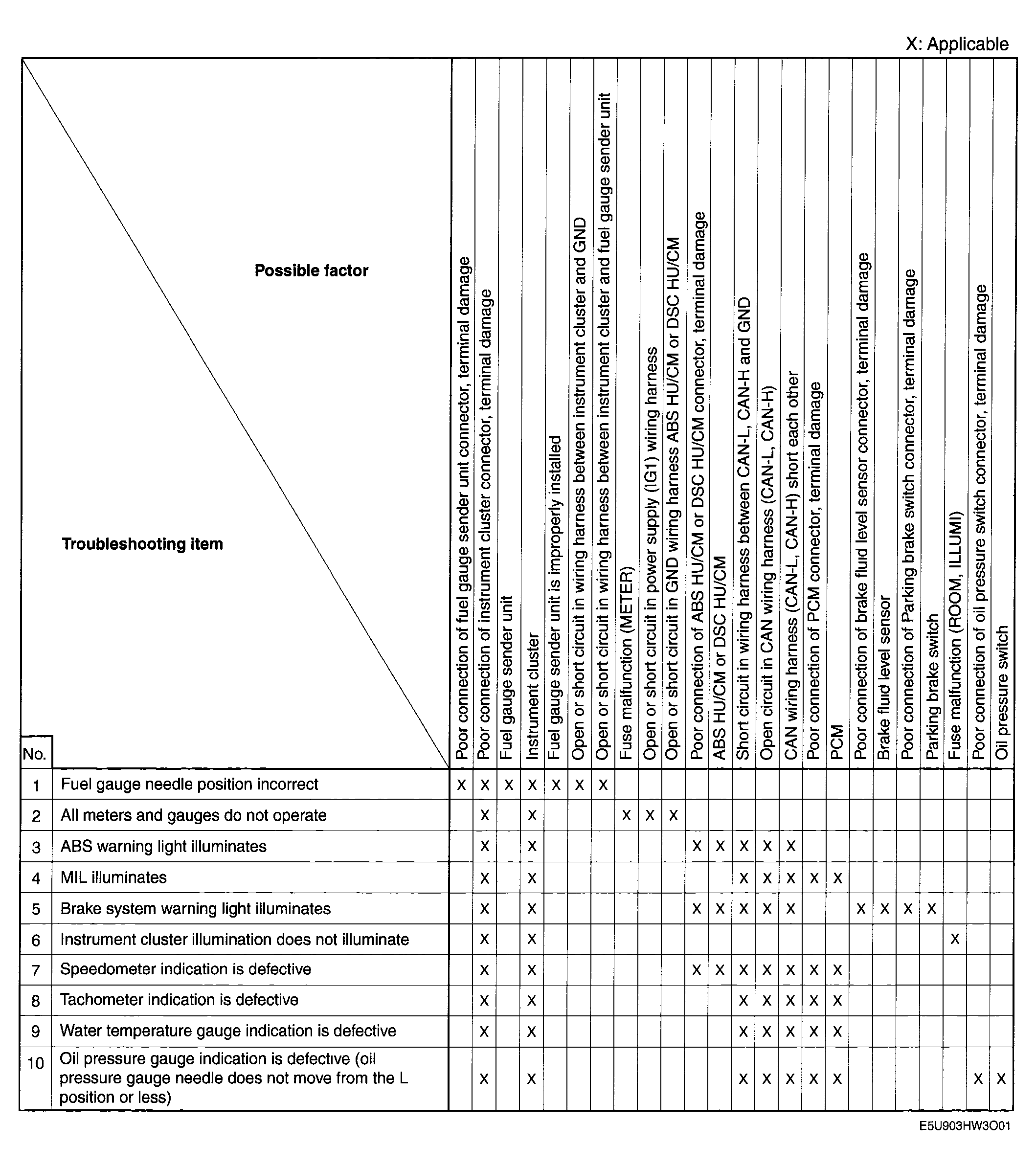

Fig 1: Instrument Cluster Quick Diagnostic Table

G04323372

Courtesy of MAZDA MOTORS CORP.
