Intermediate Shaft Speed (ISS) Sensor Removal / Installation

With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
Disconnect intermediate shaft speed (ISS) sensor electrical connector.

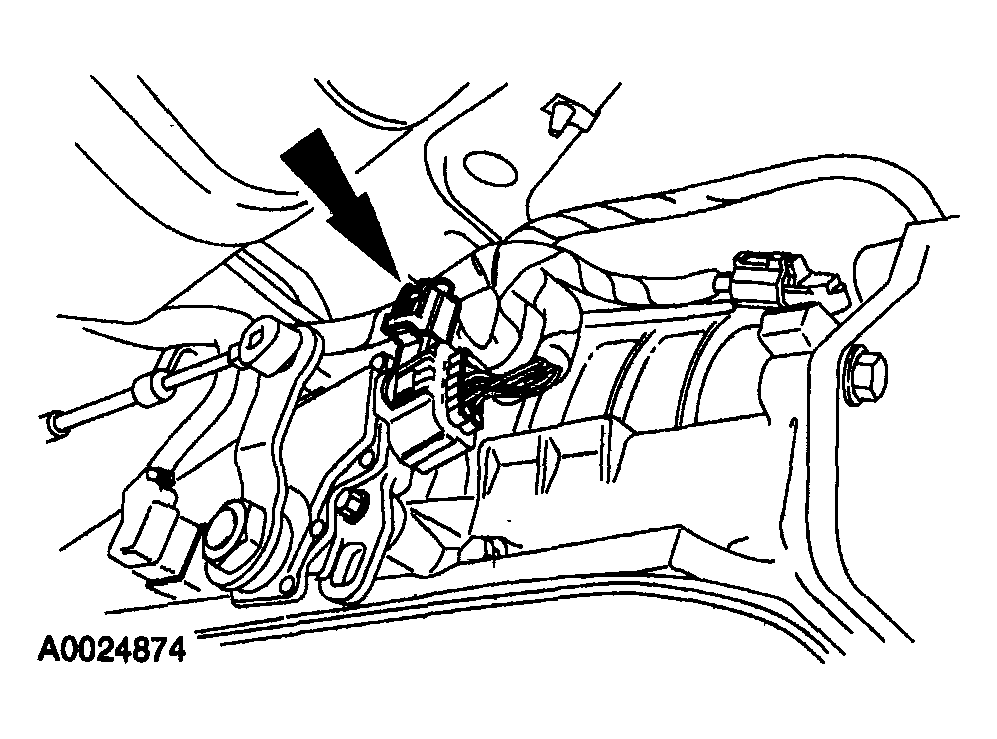

Fig 1: Disconnecting Intermediate Shaft Speed (ISS) Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Remove ISS sensor.
1. Remove the screw.
2. Remove the ISS sensor from the transmission.
3. Inspect the ISS sensor O-ring for damage. If damaged, install a new O-ring.

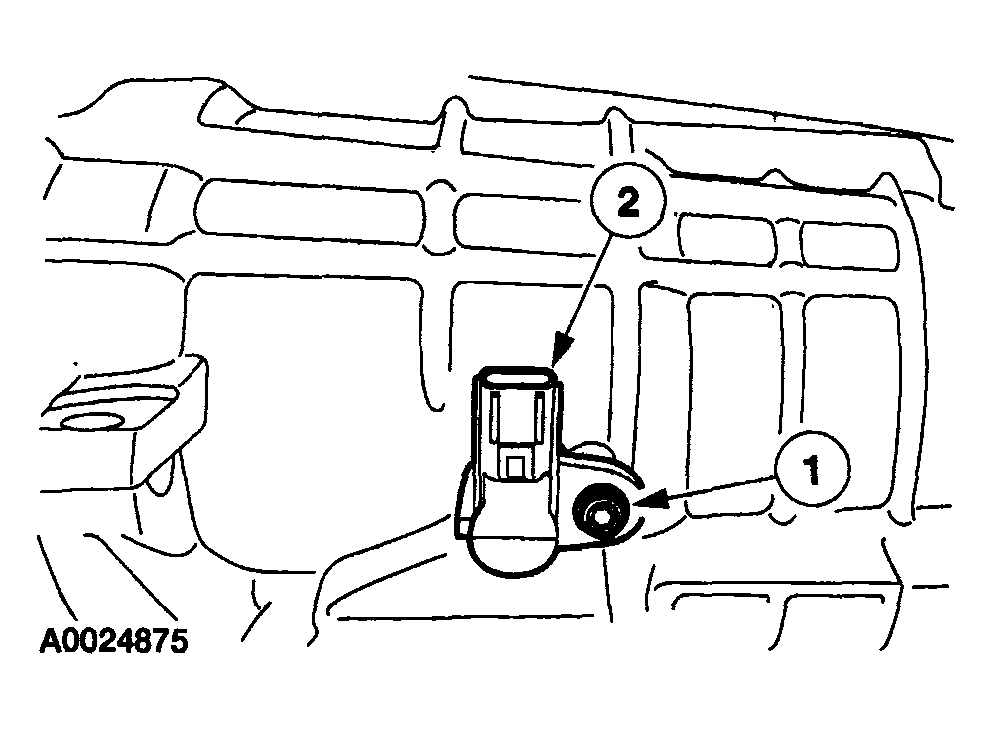

  Fig 2: Identifying ISS Sensor
  Courtesy of MAZDA MOTORS CORP.
Inspect and lubricate O-ring with petroleum jelly.
1. Install the ISS sensor into the transmission.
2. Tighten the ISS sensor screw.

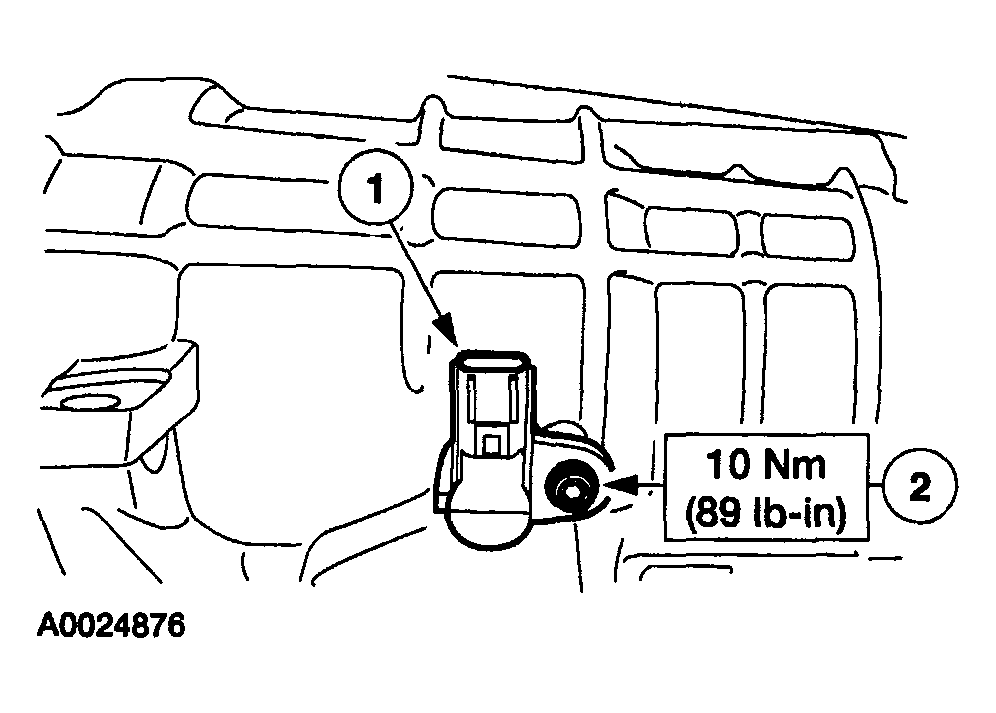

  Fig 3: Installing ISS Sensor Into Transmission With Torque Specifications
  Courtesy of MAZDA MOTORS CORP.
Connect OSS sensor electrical connector.

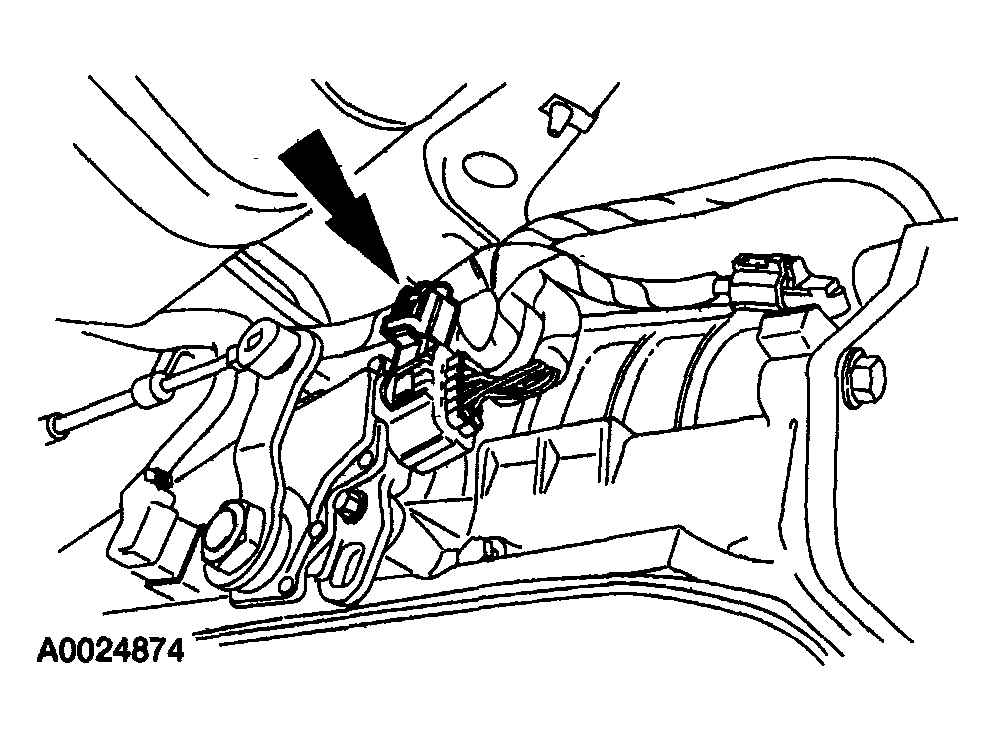

Fig 4: Connecting OSS Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Lower the vehicle.
