Engine Air Cleaner Removal / Installation - 3.0L

WARNING: This page is about a different car, the 2006 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

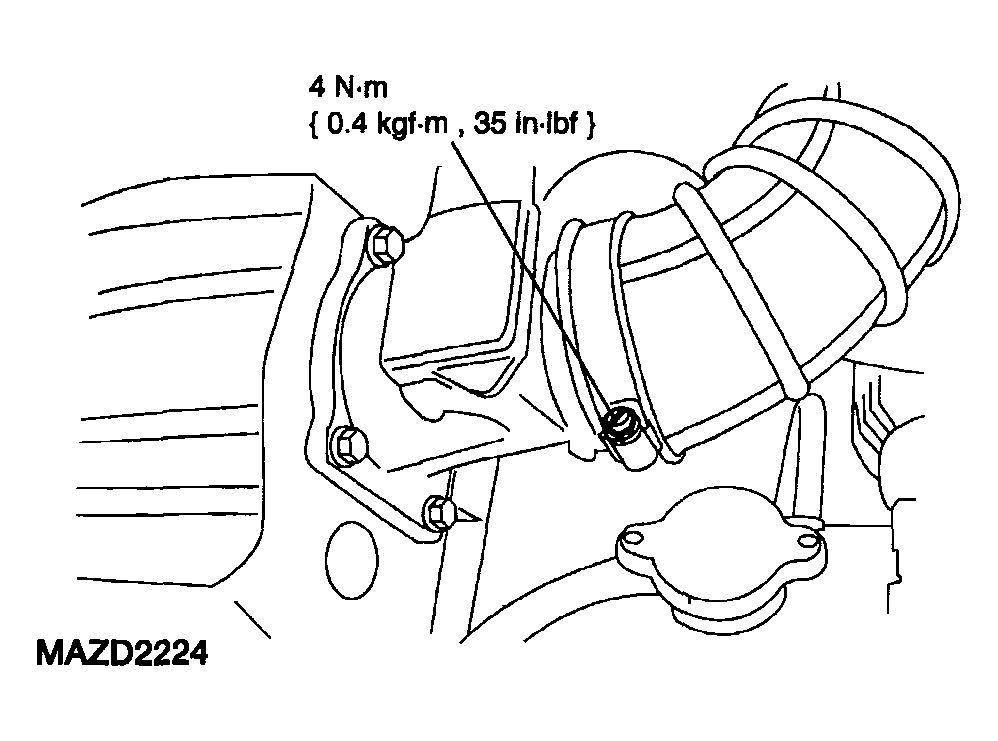

Fig 1: Removing/Installing Clamp And Air Cleaner Outlet Tube With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

Loosen the clamp and remove the air cleaner outlet tube from the mass air flow (MAF) sensor.

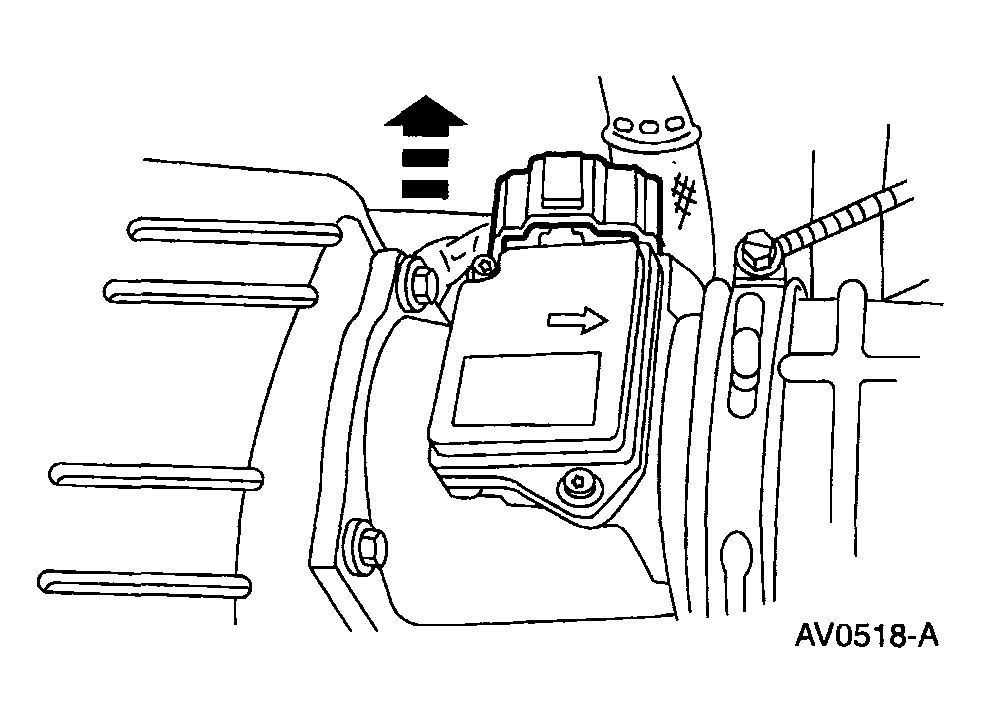

Fig 2: Disconnecting MAF Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the MAF sensor electrical connector.

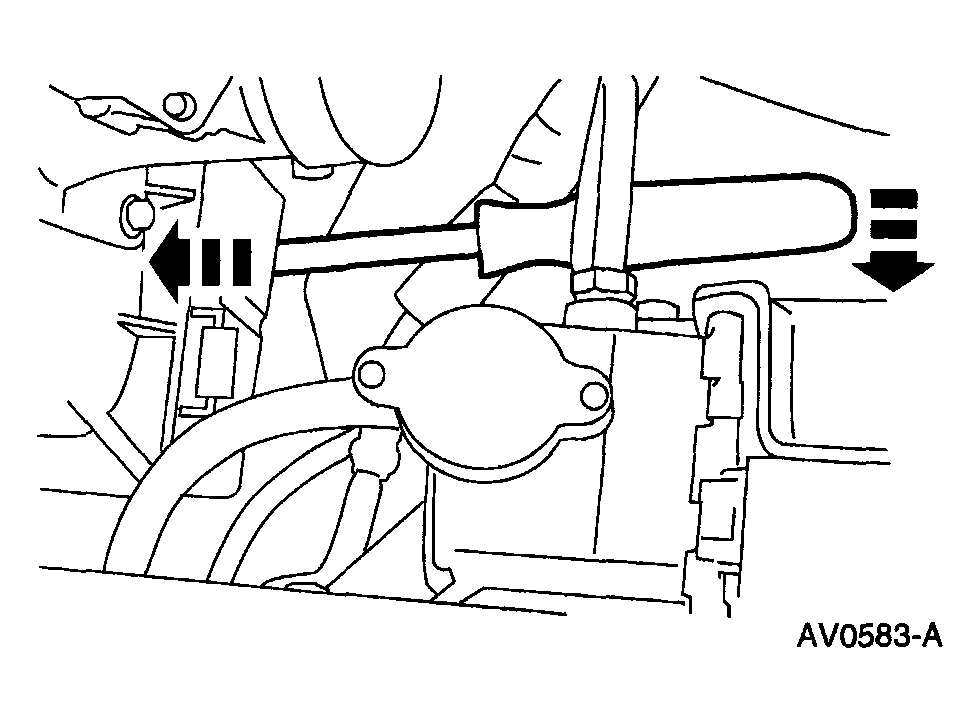

Fig 3: Prying Engine Air Cleaner From Base
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Pry the engine air cleaner from the base.
Remove the engine air cleaner assembly.
NOTE:
- Clean the engine air cleaner with a dry, clean cloth.
To install, reverse the removal procedure.
