Engine Air Cleaner Removal / Installation - 4.0L

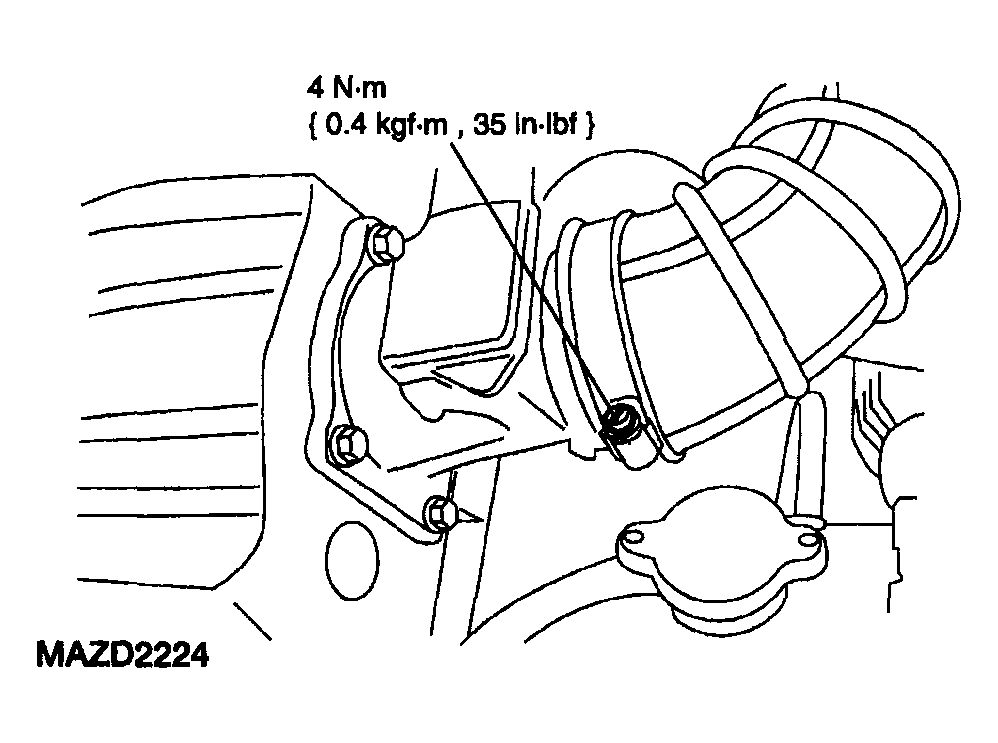

Fig 1: Removing/Installing Air Cleaner Outlet Tube With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

1. Remove the tube from the mass air flow (MAF) sensor.
   Fig 2: Removing Tube From Mass Air Flow (MAF) Sensor

   Courtesy of MAZDA MOTORS CORP.
2. Disconnect the MAF sensor electrical connector.

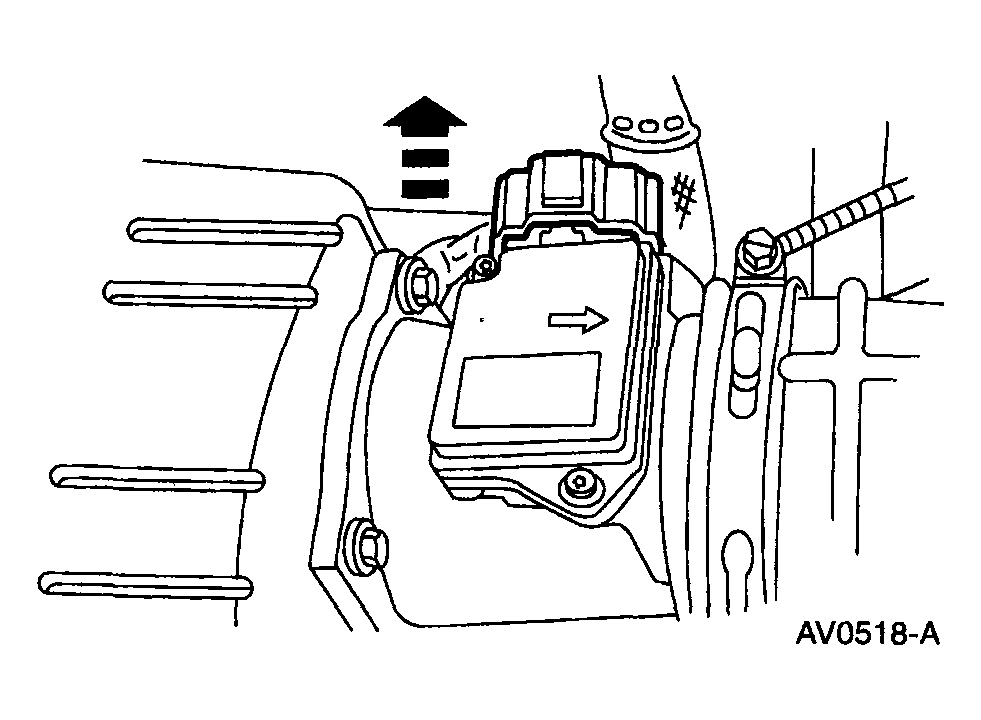

   Fig 3: Disconnecting MAF Sensor Electrical Connector

   Courtesy of MAZDA MOTORS CORP.

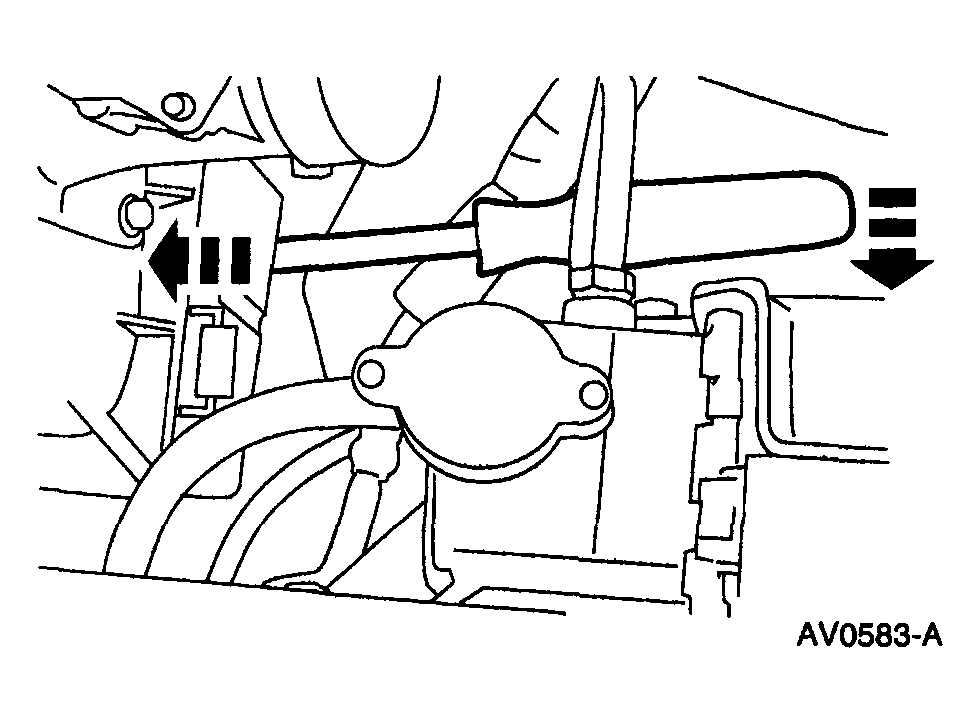

   NOTE:

   • Pry the engine air cleaner from the base.
3. Remove the engine air cleaner assembly.
   NOTE:

   • Clean the engine air cleaner with a dry, clean cloth.
4. To install, reverse the removal procedure.
