Air Cleaner Outlet Tube Removal / Installation - 4.0L

Disconnect the crankcase ventilation tube and remove the mass airflow (MAF) sensor wiring harness push-pin.

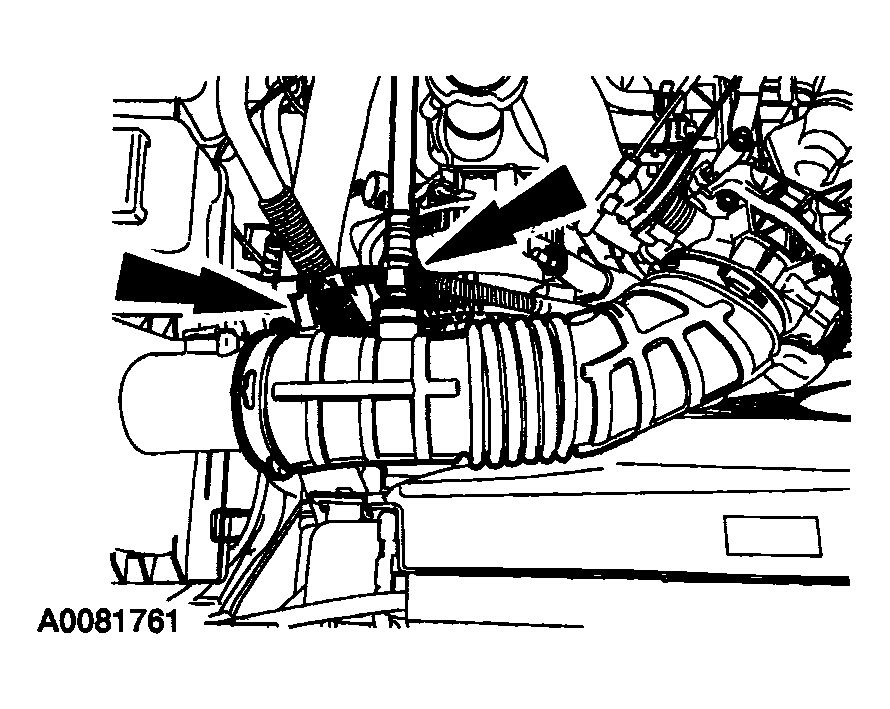

Fig 1: Disconnecting Crankcase Ventilation Tube
Courtesy of MAZDA MOTORS CORP.
Loosen the hose clamps and remove the air cleaner outlet pipe.

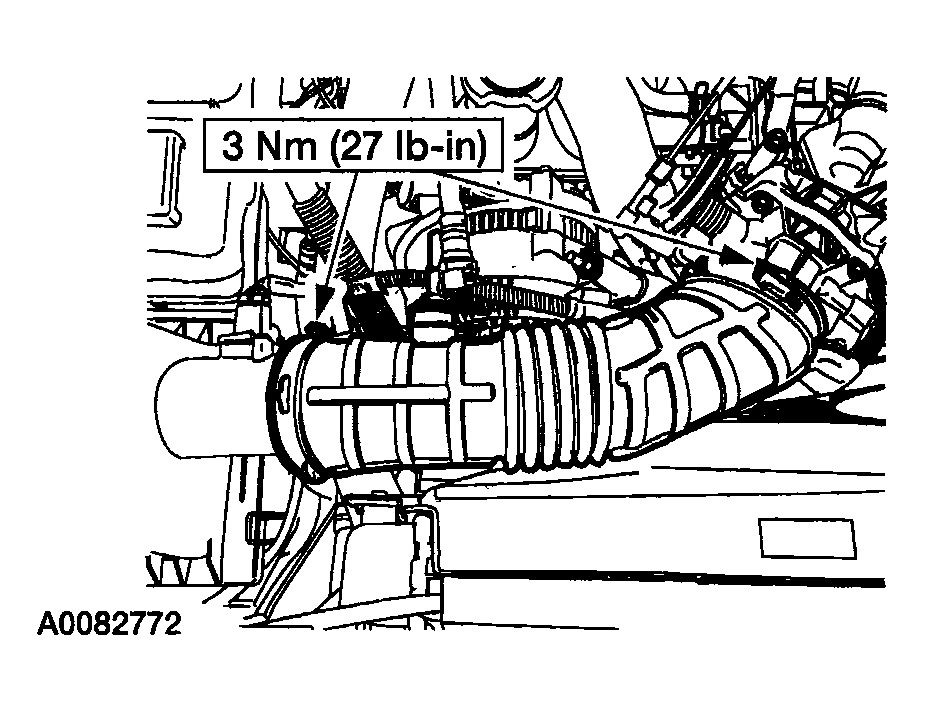

Fig 2: Removing/Installing Hose Clamps And Air Cleaner Outlet Pipe With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Visually check the engine air cleaner intake duct and outlet tube for any foreign objects, obstructions or punctures.
To install, reverse the removal procedure.
