Fan Shroud Removal / Installation - 4.0L

Remove the air cleaner outlet tube.
Using the fan pulley holding wrench SST and the fan clutch nut wrench SST , remove the fan blade.

Fig 1: Removing Fan Blade
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

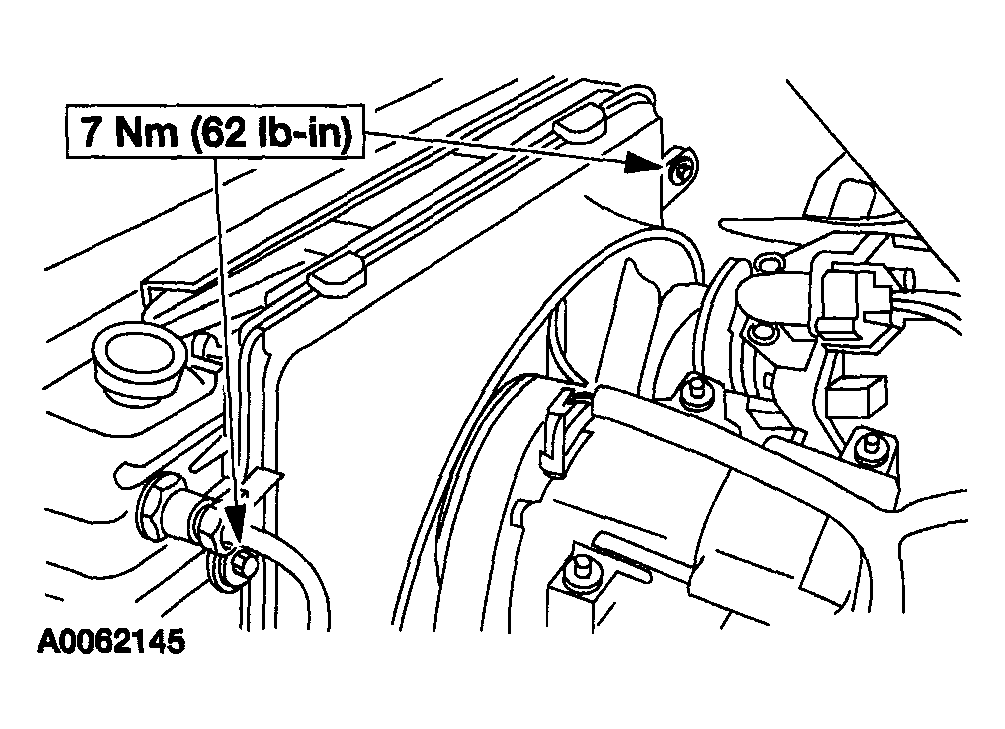

Fig 2: Removing/Installing Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Lift the fan shroud out of the lower retaining clips.

Fig 3: Lifting Fan Shroud Out Of Lower Retaining Clips
Courtesy of MAZDA MOTORS CORP.
Lift the fan shroud and the fan blade and clutch assembly together from the vehicle.
To install, reverse the removal procedure.
