Checking Differential Ring Gear Backlash

  1. Remove the differential housing cover.
  2. Using a suitable dial indicator SST  , measure and record the differential ring gear backlash in 4 opposing points on the ring gear.

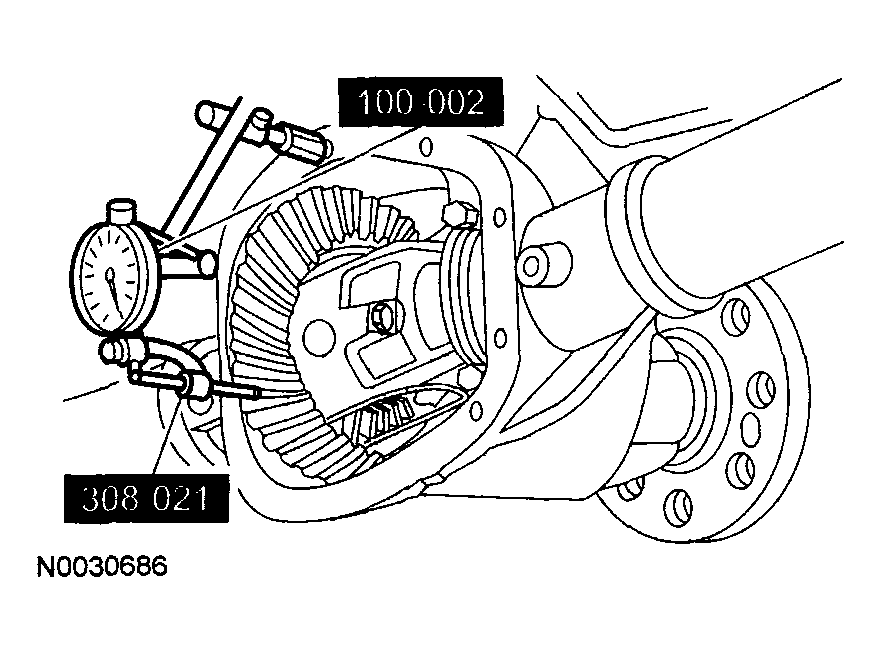

Fig 1: Measuring Differential Ring Gear Backlash
G04308627Courtesy of MAZDA MOTORS CORP.
