Door Adjustment
NOTE:
- Verify the front door can be closed easily and the hinges are not loose.

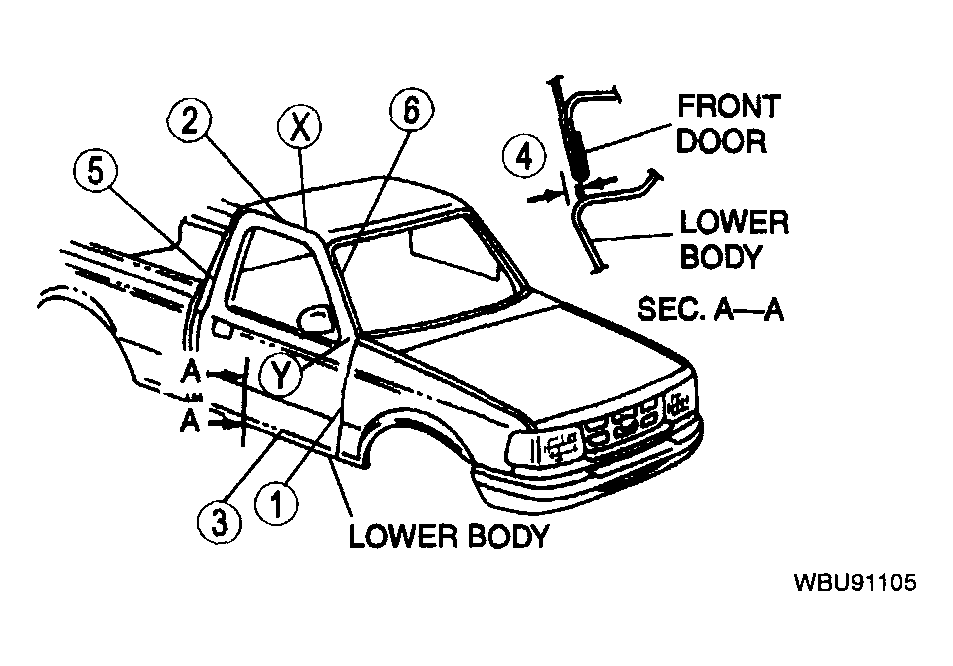

- Inspect the clearance and the flushness between the front door and the front fender.
Clearance (1): 3.5-6.5 mm (0.138-0.255 in.) Flushness (1): +/-2.0 mm
- Inspect the clearance between the front door and the roof.
Clearance (2): 2.5-7.5 mm (0.098-0.295 in.)
- Inspect the clearance and the flushness between the front door and the lower body.
Clearance (3): 3.0-9.0 mm (0.12-0.35 in.)
- Inspect the flushness between the front door and the lower body section A-A.
Flushness (4): (+/-5.0 mm (0.19 in.))
- Inspect the clearance between the front door and the B-pillar.
Clearance (5): 2.5-6.5 mm (0.098-0.25 in.)
- Inspect the underflush of the front door to the A-pillar from point X to point Y.
Underflush (6): 1.0-5.0 mm (0.04-0.19 in.)
- If the door is not adjusted properly, loosen the front door-to-hinge bolts and nuts enough to permit movement of the door.
- Adjust the door with a suitable tool.
- Tighten the door hinge bolts to the specified torque.
- Tighten to 30 N-m (3.1 kgf-m, 22 ft-lbf).
