Pickup Bed Alignment

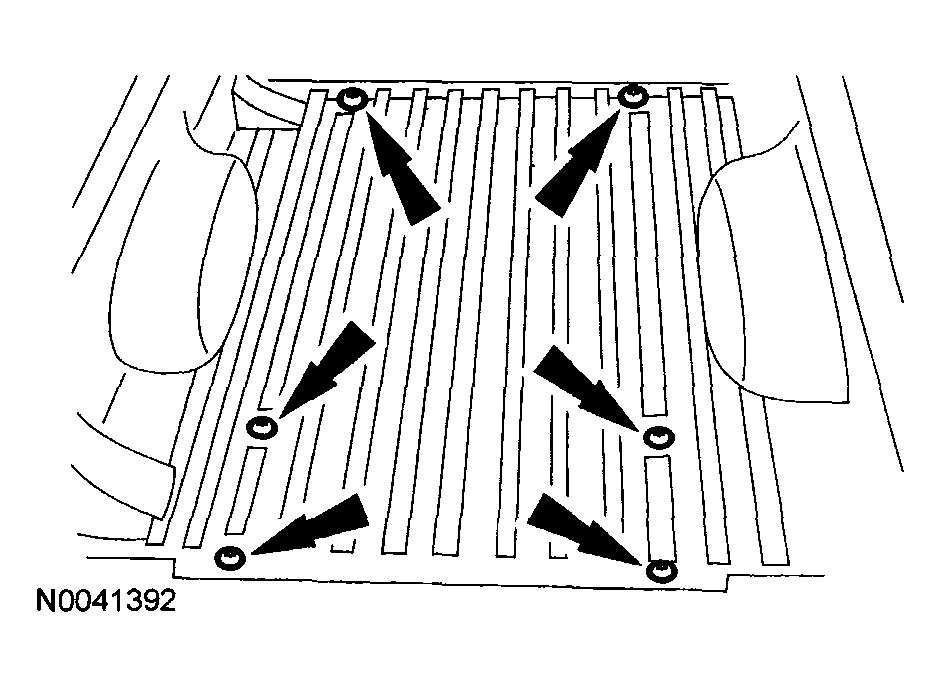

Fig 1: Loocating 6 Pickup Bed Retaining Bolts

Courtesy of MAZDA MOTORS CORP.

Loosen the 6 pickup bed bolts.
Center the pickup bed on the rear of the pickup cab.

Fig 2: Setting Gap Between Leading Edge Of Pickup Bed And Back Of Cab
Courtesy of MAZDA MOTORS CORP.
Set the gap between leading edge of the pickup bed and the back of the cab.

Fig 3: Loocating 6 Pickup Bed Retaining Bolts
Courtesy of MAZDA MOTORS CORP.
Tighten the 6 pickup bed bolts.
- To install, tighten to 63 N-m (6.4 kgf-m, 46 ft-lbf).
