Camshaft Journal Clearance

  1. Remove the camshaft bearing cap and lay Plastigage SST  303-D031 or equivalent across the surface.
    NOTE:
    • Do not turn the camshaft while carrying out this procedure.
  2. Position the camshaft bearing cap and install the bolts.

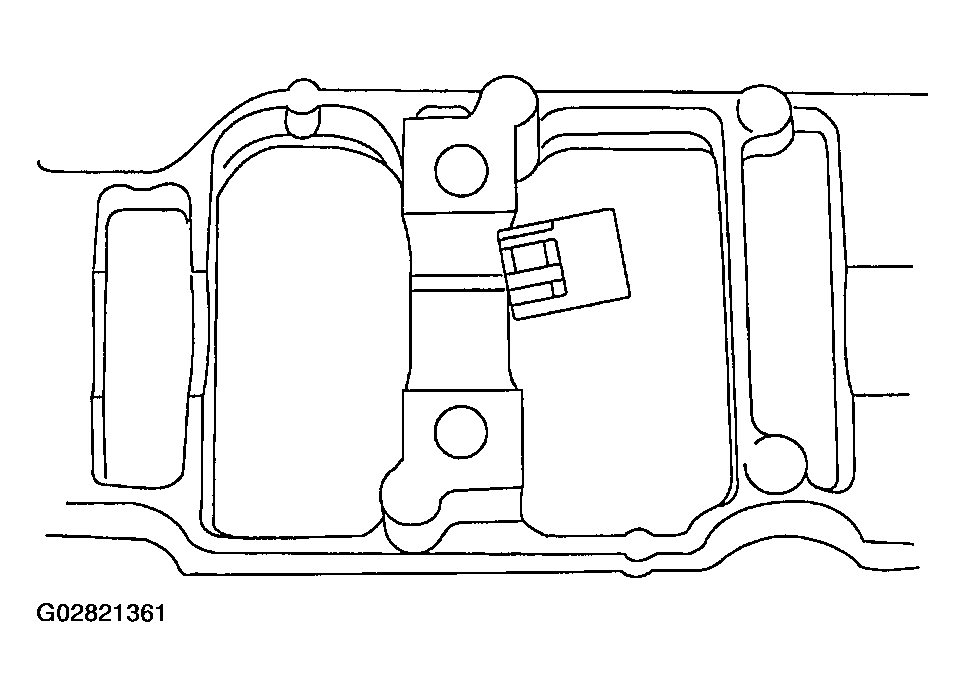

    Fig 1: Using Plastigage To Measure Camshaft Journal Clearance
    G02821361Courtesy of MAZDA MOTORS CORP.
  3. Use Plastigage to verify the camshaft journal clearance.
    1. For additional information, refer to CAMSHAFT SPECIFICATIONS .
    2. If out of specification, install new components as necessary. Refer to ENGINE DISASSEMBLY/ASSEMBLY .
