2WD vehicles

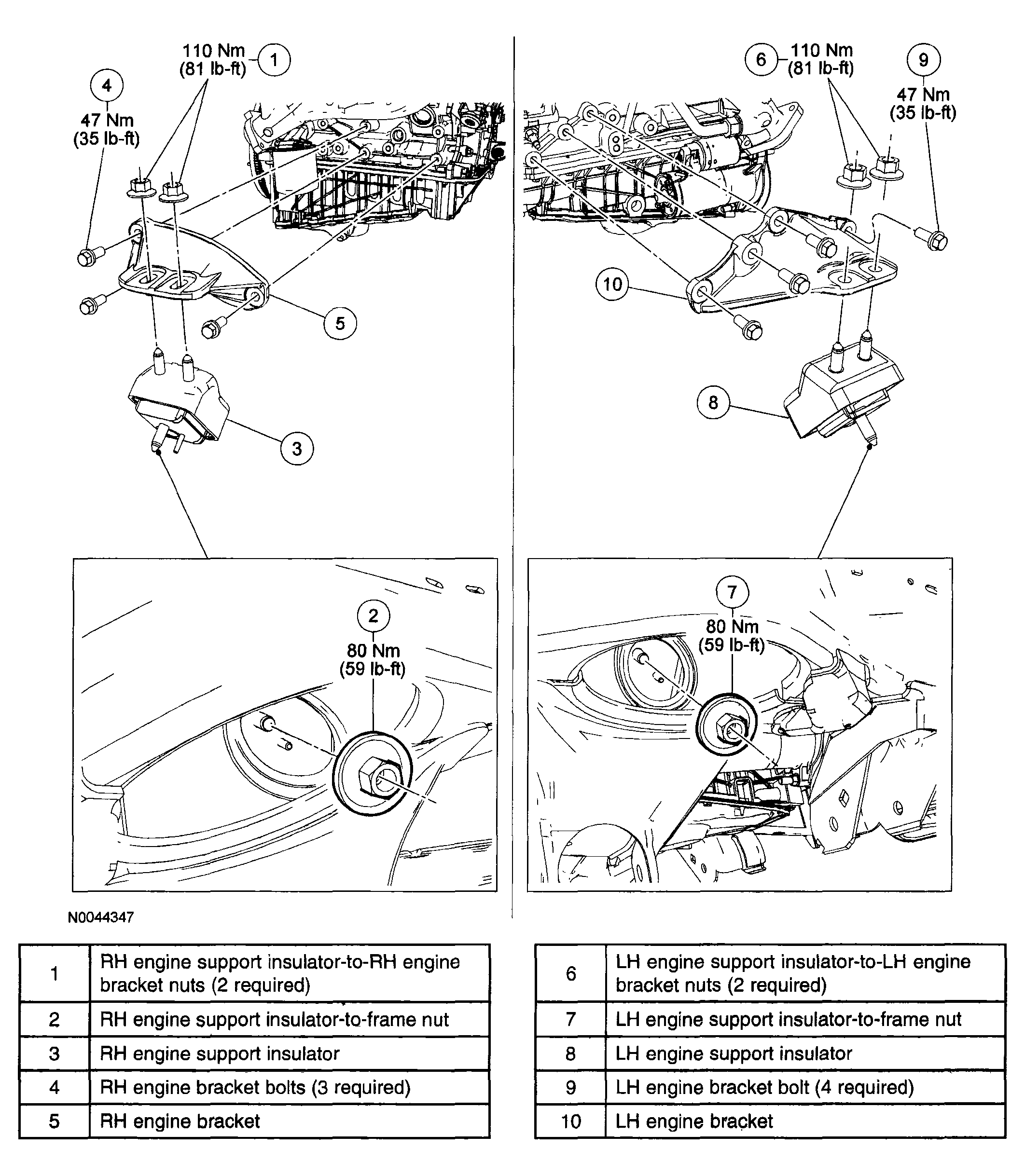

Fig 1: Removing/Installing Engine Mount Rubber With Torque Specifications (2WD Vehicles)
G04307659Courtesy of MAZDA MOTORS CORP.
