Crankshaft Front Oil Seal Removal / Installation - 4.0L: Removal

  1. Remove the crankshaft pulley. See CRANKSHAFT PULLEY REMOVAL / INSTALLATION - 4.0L

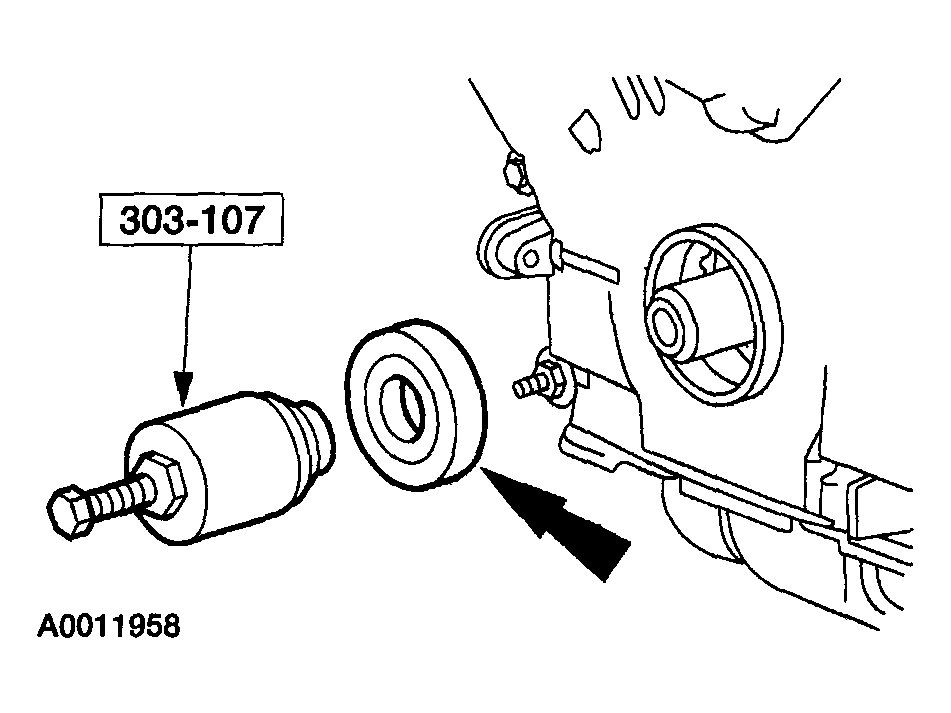

    Fig 1: Removing Crankshaft Front Oil Seal
    G04307505Courtesy of MAZDA MOTORS CORP.
  2. Using the front cover seal remover SST  , remove the crankshaft front oil seal.
