Belt Idler Pulley Removal / Installation - 4.0L

  1. Remove the drive belt. See DRIVE BELT REMOVAL / INSTALLATION - 4.0L  .
  2. Remove the bolt and the belt idler pulley.

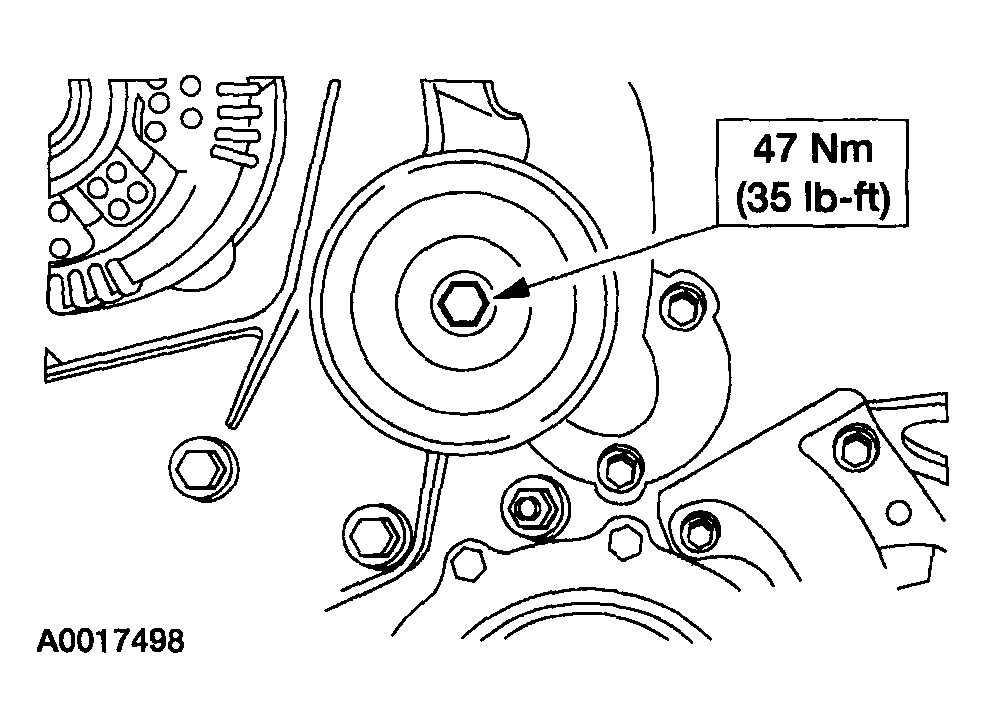

    Fig 1: Removing/Installing Belt Idler Pulley With Torque Specifications
    G04307488Courtesy of MAZDA MOTORS CORP.
  3. To install, reverse the removal procedure.
