Flywheel Removal / Installation - 4.0L: Removal

  1. Remove the clutch. See CLUTCH DISC AND COVER REMOVAL / INSTALLATION .

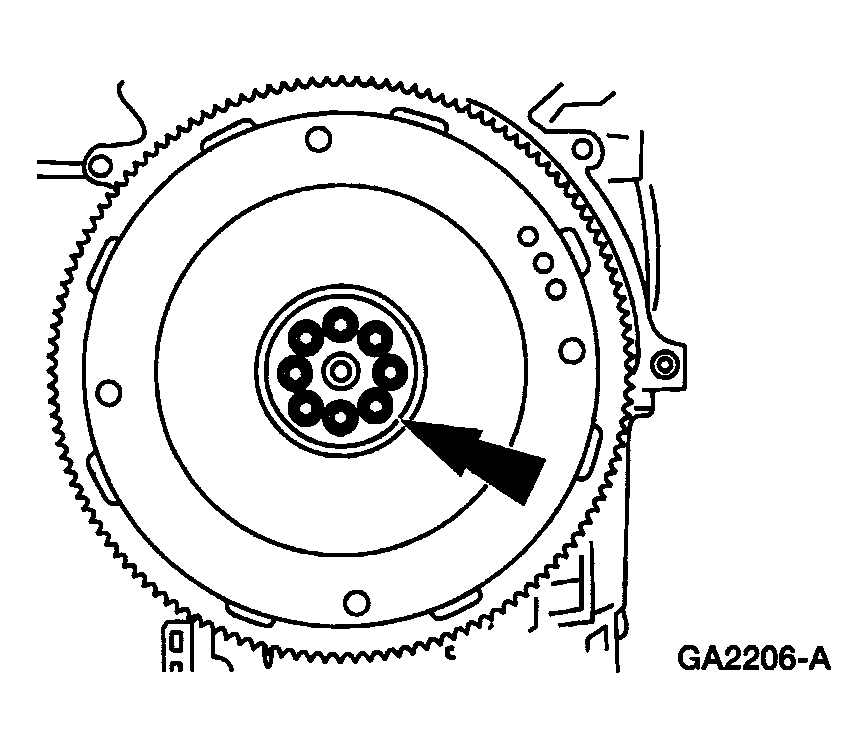

    Fig 1: Removing Flywheel Bolts
    G04307654Courtesy of MAZDA MOTORS CORP.
  2. Remove the bolts and the flywheel.
  3. Clean and inspect the flywheel. See FLYWHEEL INSPECTION .
