Flywheel Inspection - 4.0L

  1. Inspect the flywheel for:
    • Cracks
    • Worn ring gear teeth
    • Chipped or cracked ring gear teeth
  2. Use radial runout gauge to inspect the flywheel ring gear runout.

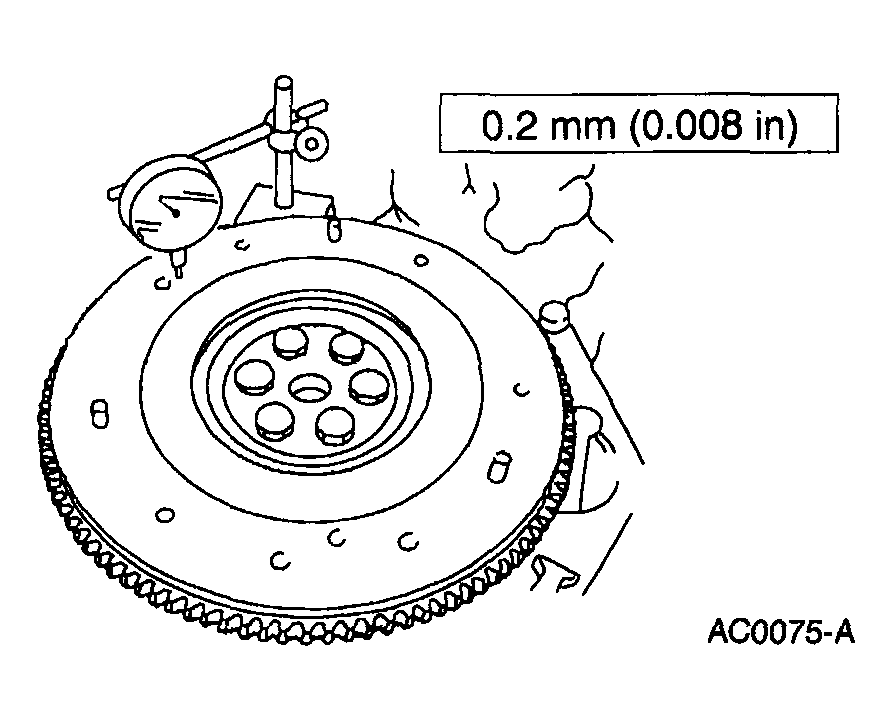

Fig 1: Measuring Flywheel Ring Gear Runout
G04307652Courtesy of MAZDA MOTORS CORP.
