Removal and Installation

  1. Remove the headlamp assemblies. See HEADLAMP BULB .

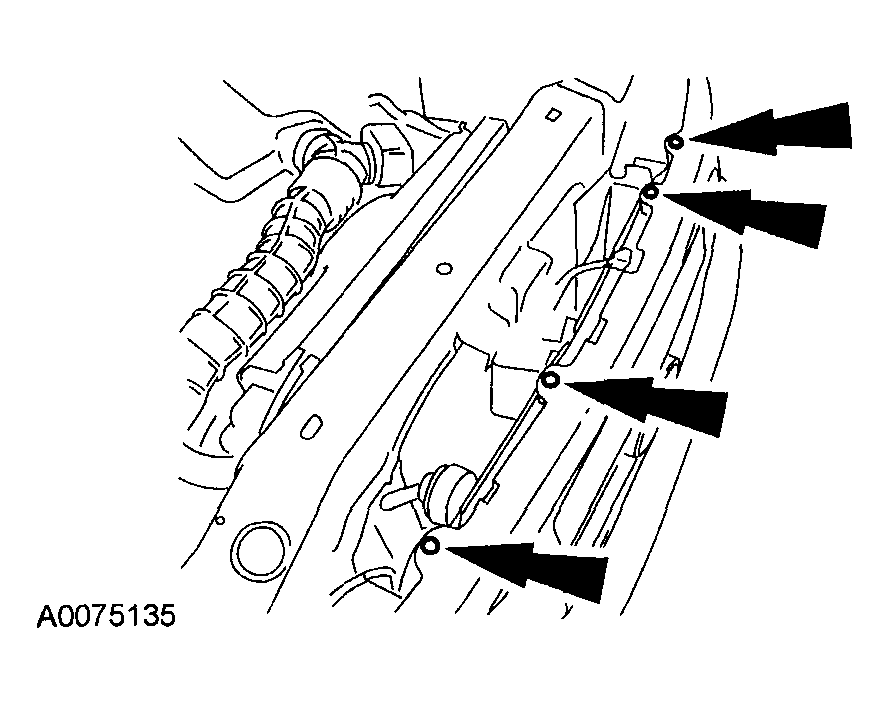

    Fig 1: Removing Screws From Top Of Radiator Grille
    G04310163Courtesy of MAZDA MOTORS CORP.
  2. Remove the 4 screws from the top of the radiator grille.

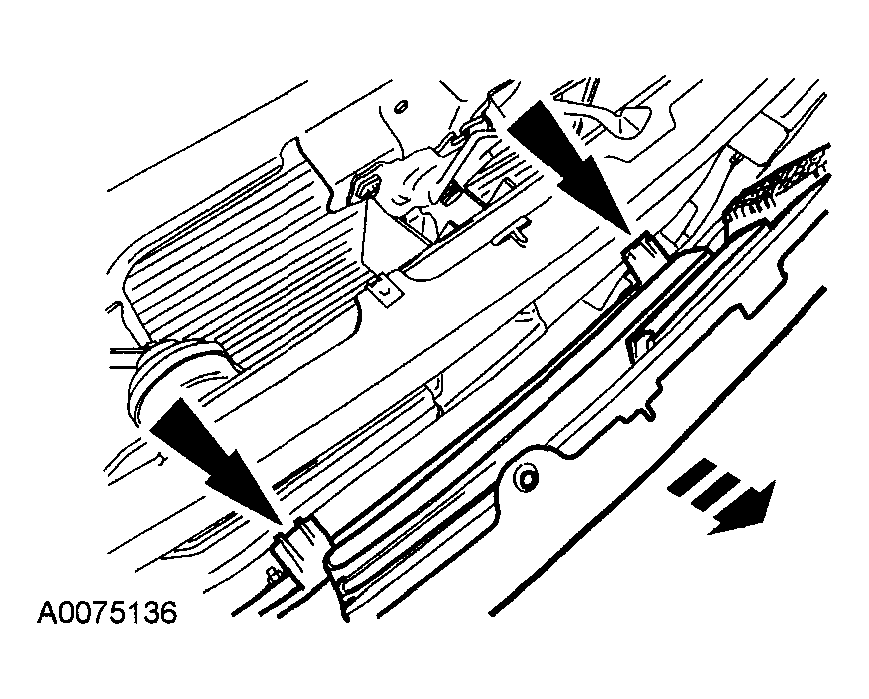

    Fig 2: Removing Radiator Grille
    G04310164Courtesy of MAZDA MOTORS CORP.
  3. Remove the radiator grille.
    • Position the radiator grille outward and release the retaining clips.
  4. Remove the radiator grille opening panel by pulling outward on the panel.
  5. To install, reverse the removal procedure.
