Removal and Installation

  1. Remove the radiator grille opening panel. See RADIATOR GRILLE OPENING PANEL  .

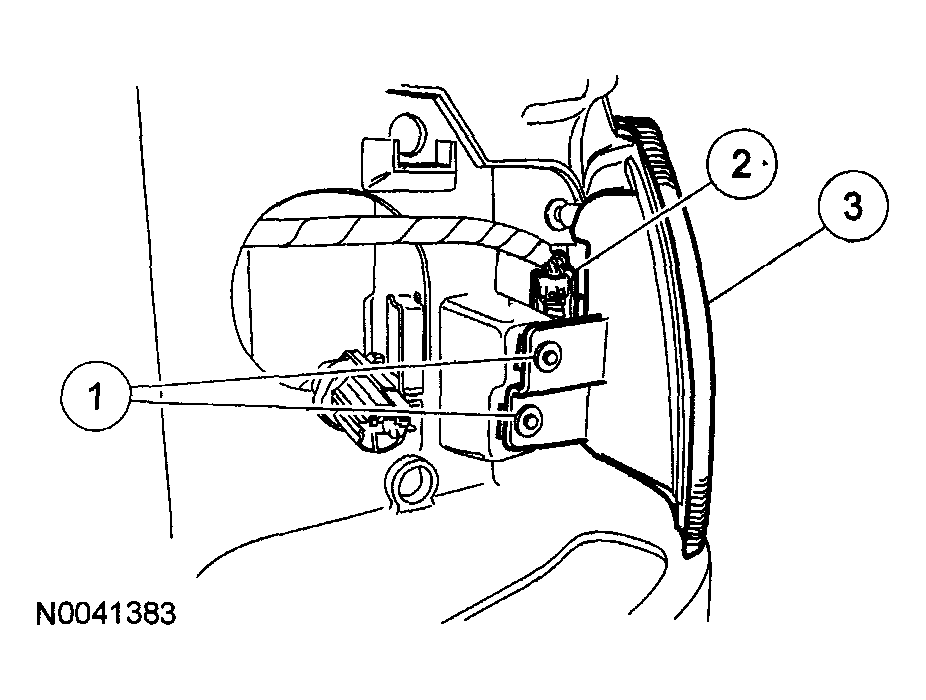

    Fig 1: Removing Side Marker Lamps
    G04310166Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • LH side shown, RH side similar.
  2. Remove the side marker lamps.
    1. Remove the 2 bolts.
    2. Disconnect the electrical connector.
    3. Remove the side marker lamp.

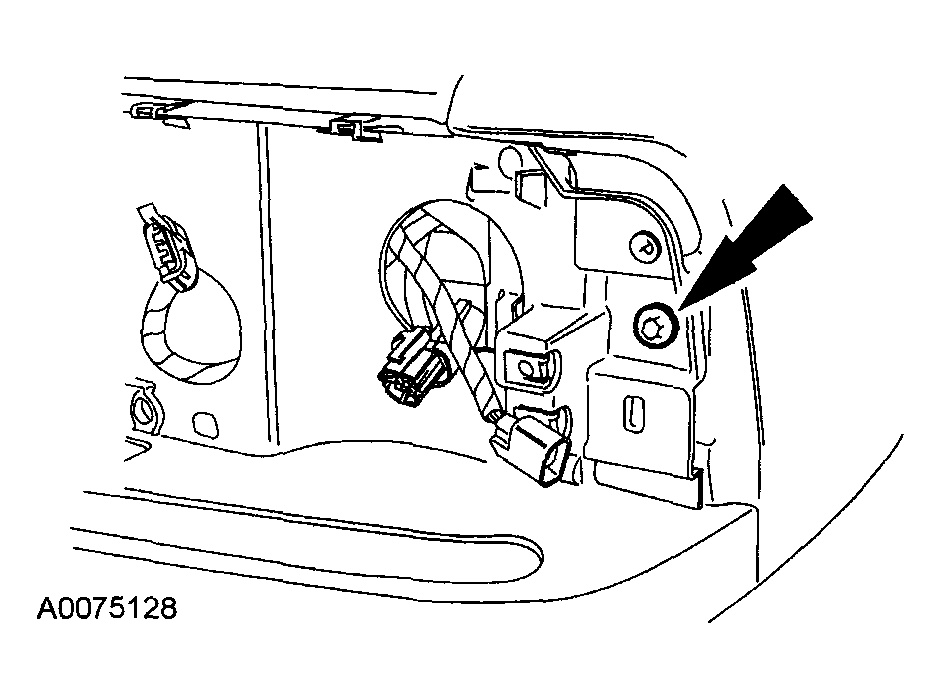

      Fig 2: Removing Front Fender-To-Grille Opening Panel Reinforcement Bolts
      G04310167Courtesy of MAZDA MOTORS CORP.
      NOTE:
      • LH side shown, RH side similar.
  3. Remove the front fender-to-grille opening panel reinforcement bolts.
    • To install, tighten to 12 N-m (1.2 kgf-m, 9 ft-lbf).

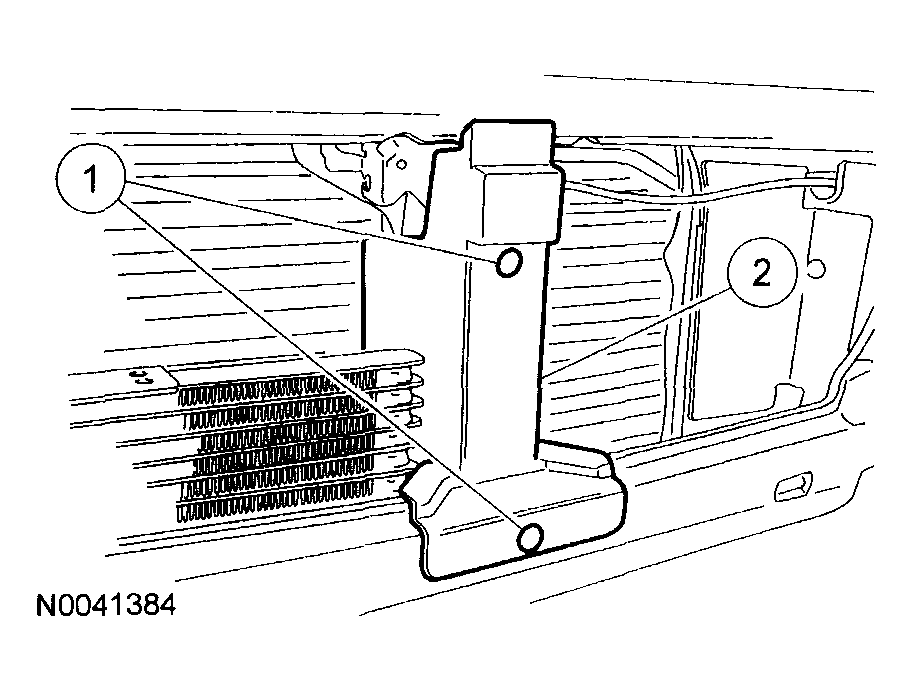

    Fig 3: Removing Air Deflector
    G04310168Courtesy of MAZDA MOTORS CORP.
  4. Remove the air deflector.
    1. Remove the 2 push-pins
    2. Remove the air deflector.

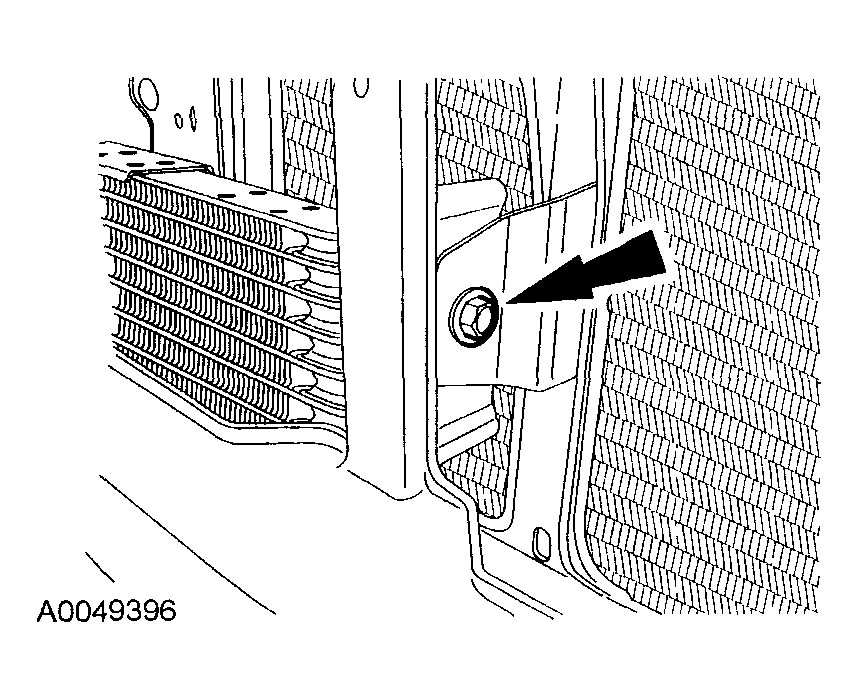

      Fig 4: Removing Auxiliary Power Steering Cooler-To-Radiator Grille Opening Panel Reinforcement Bolt
      G04310169Courtesy of MAZDA MOTORS CORP.
  5. Remove the auxiliary power steering cooler-to-radiator grille opening panel reinforcement bolt.
    • To install, tighten to 12 N-m (1.2 kgf-m, 9 ft-lbf).

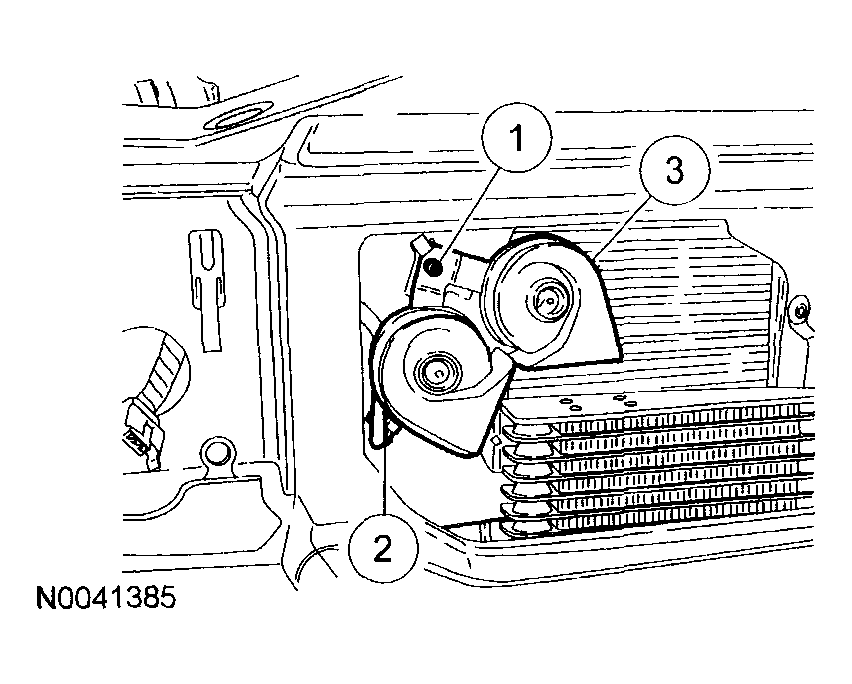

    Fig 5: Removing Horn
    G04310170Courtesy of MAZDA MOTORS CORP.
  6. Remove the horn.
    1. Remove the bolt.
    2. Disconnect the electrical connector.
    3. Remove the horn.

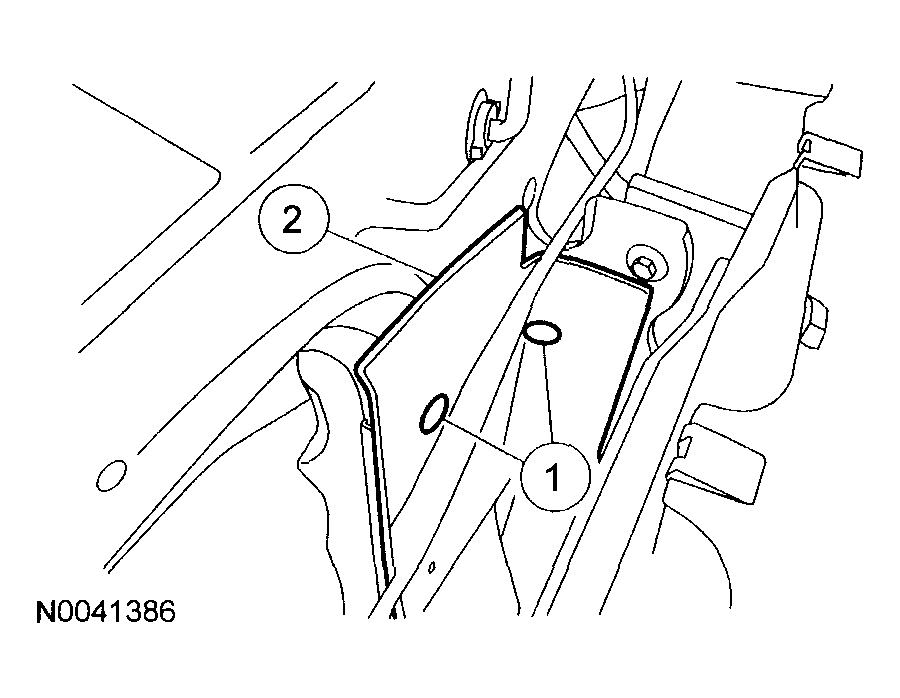

      Fig 6: Positioning Air Deflectors Aside
      G04310171Courtesy of MAZDA MOTORS CORP.
      NOTE:
      • LH side shown, RH side similar.
  7. Position the air deflectors aside.
    1. Remove the 2 push-pins.
    2. Position the air deflectors aside.

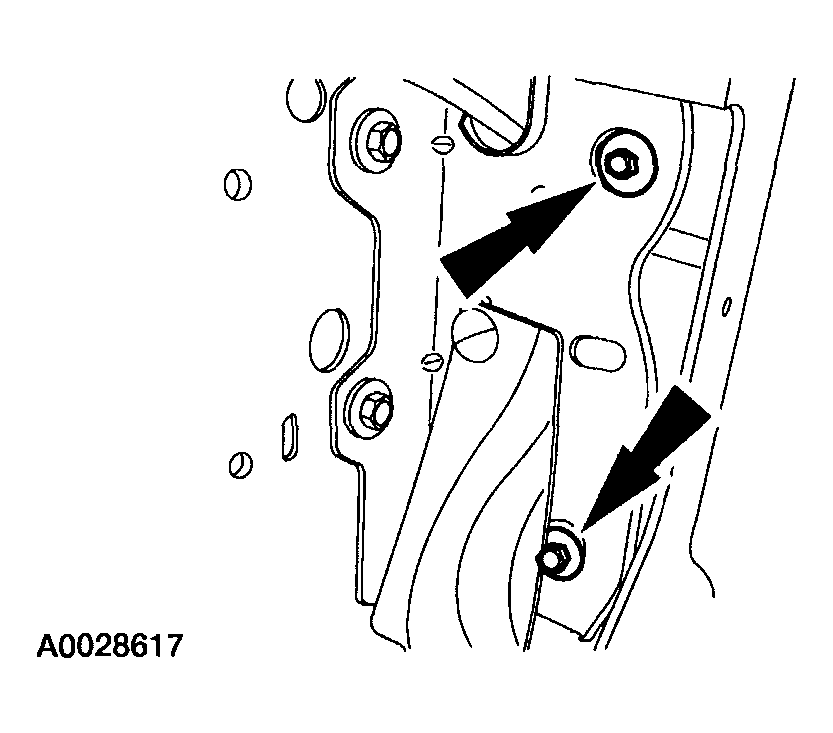

      Fig 7: Removing Radiator-To-Radiator Grille Opening Panel Reinforcement Bolts
      G04310172Courtesy of MAZDA MOTORS CORP.
      NOTE:
      • LH side shown, RH side similar.
  8. Remove the 2 radiator-to-radiator grille opening panel reinforcement bolts.

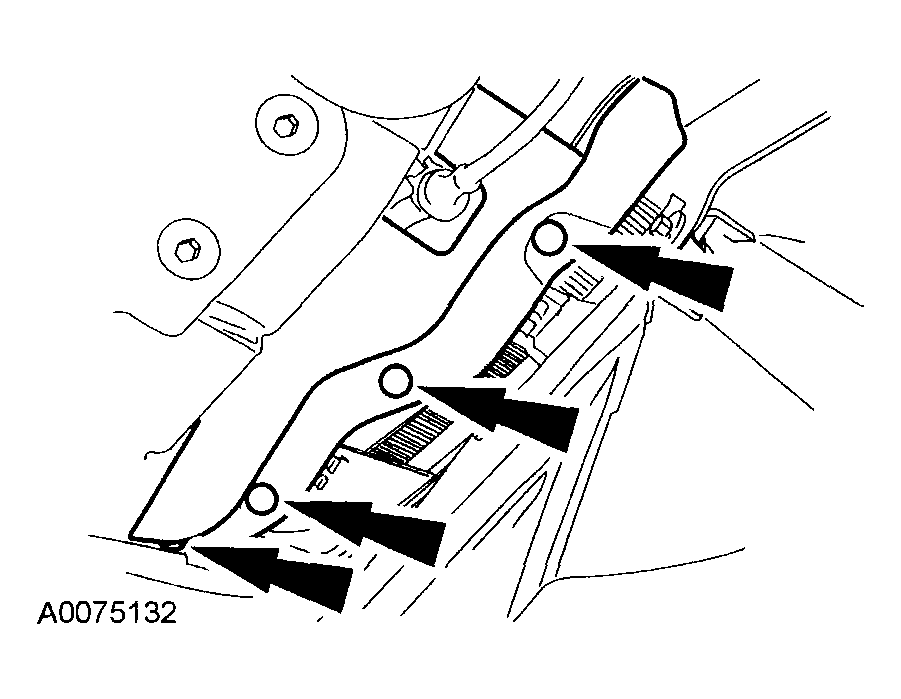

    Fig 8: Removing Push-Pins
    G04310173Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • LH side shown. RH side similar.
  9. From beneath the vehicle, remove the air deflector.
    • Remove the 4 push-pins.
    Fig 9: Removing Radiator Grille Opening Panel Reinforcement-To-Front Fender Bolts
    G04310174Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • LH side shown, RH side similar.
  10. Remove the radiator grille opening panel reinforcement-to-front fender bolts.
    • To install, tighten to 12 N-m (1.2 kgf-m, 9 ft-lbf).

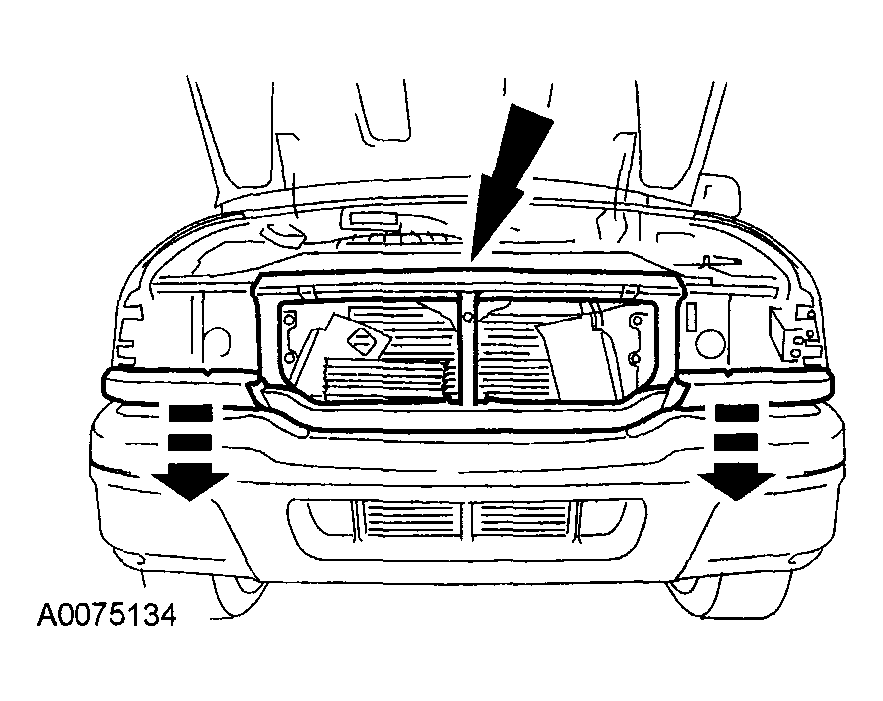

    Fig 10: Removing Grille Opening Panel Reinforcement
    G04310175Courtesy of MAZDA MOTORS CORP.
  11. Remove the grille opening panel reinforcement.
    • Pull straight outward.
  12. To install, reverse the removal procedure.
