Upper and lower bumper cover

  1. Remove the front bumper assembly. See FRONT BUMPER  .

    Lower bumper cover

  2. Remove the lower bumper cover from the upper bumper cover.
    • Disengage the lower cover from the clips on the upper cover.
  3. Transfer the fog lamp assemblies to the new lower bumper cover, if necessary. See FOG LAMP .

    Upper bumper cover

  4. Remove the upper bumper cover from the bumper beam.
    • Remove the 14 plastic rivets.
    • Remove the upper bumper cover.

    Upper and lower bumper cover

  5. To install, reverse the removal procedure.

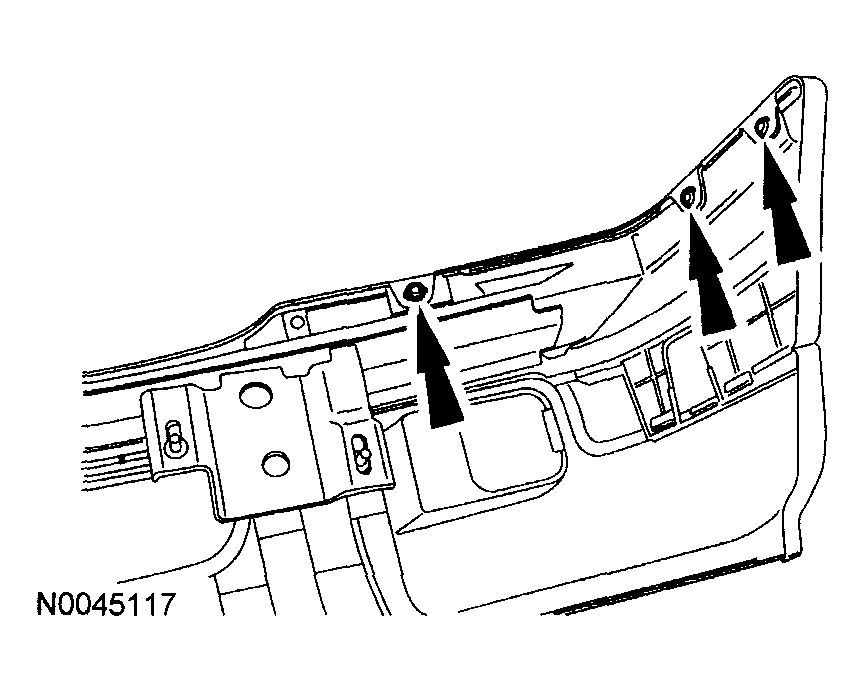

Fig 1: Removing Upper Bumper Cover From Bumper Beam
G04310197Courtesy of MAZDA MOTORS CORP.
