Connector End Views - Parking, Rear And License Plate Lamps

PARKING, REAR AND LICENSE PLATE LAMPS CONNECTOR END VIEWS

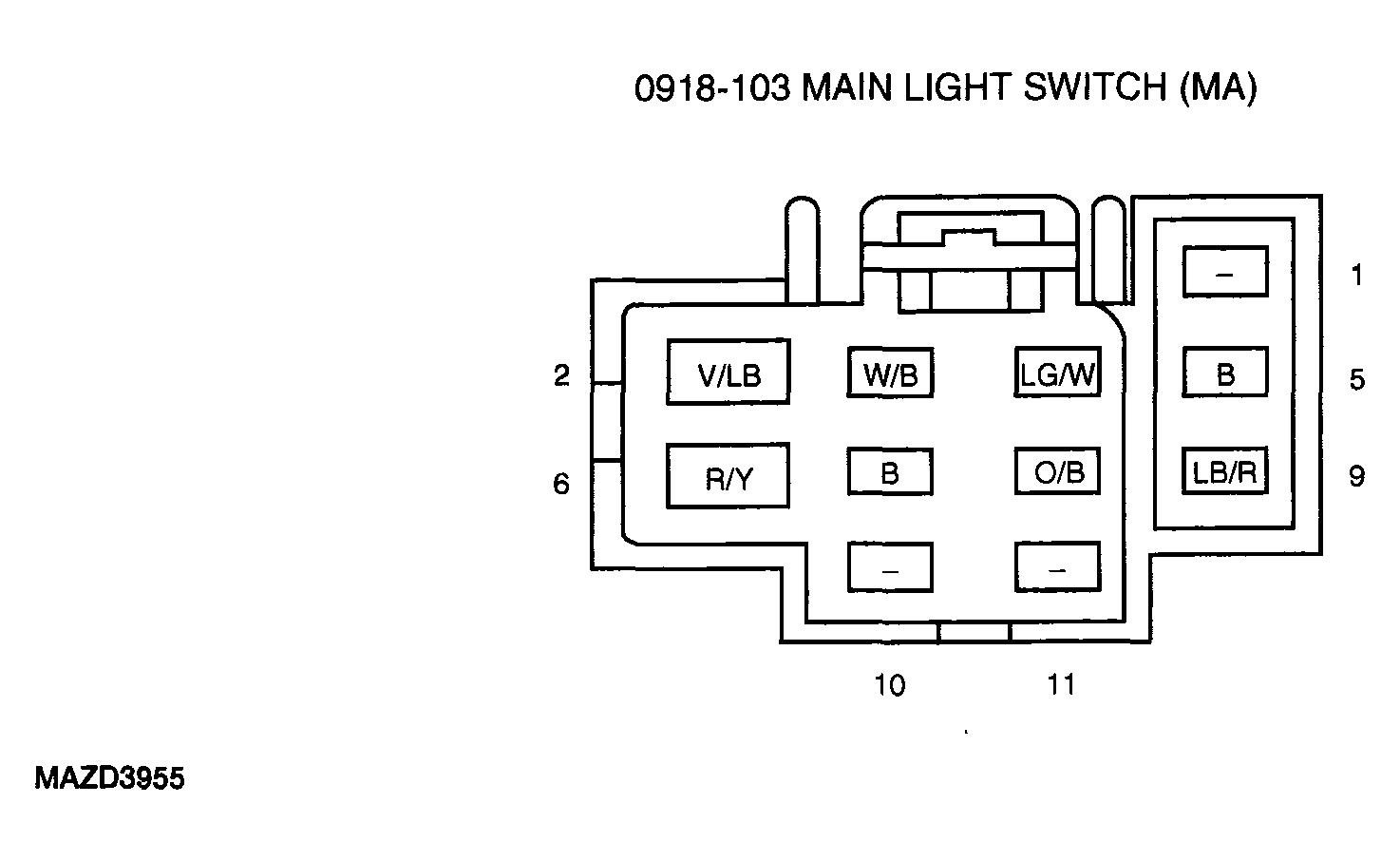

G04310059

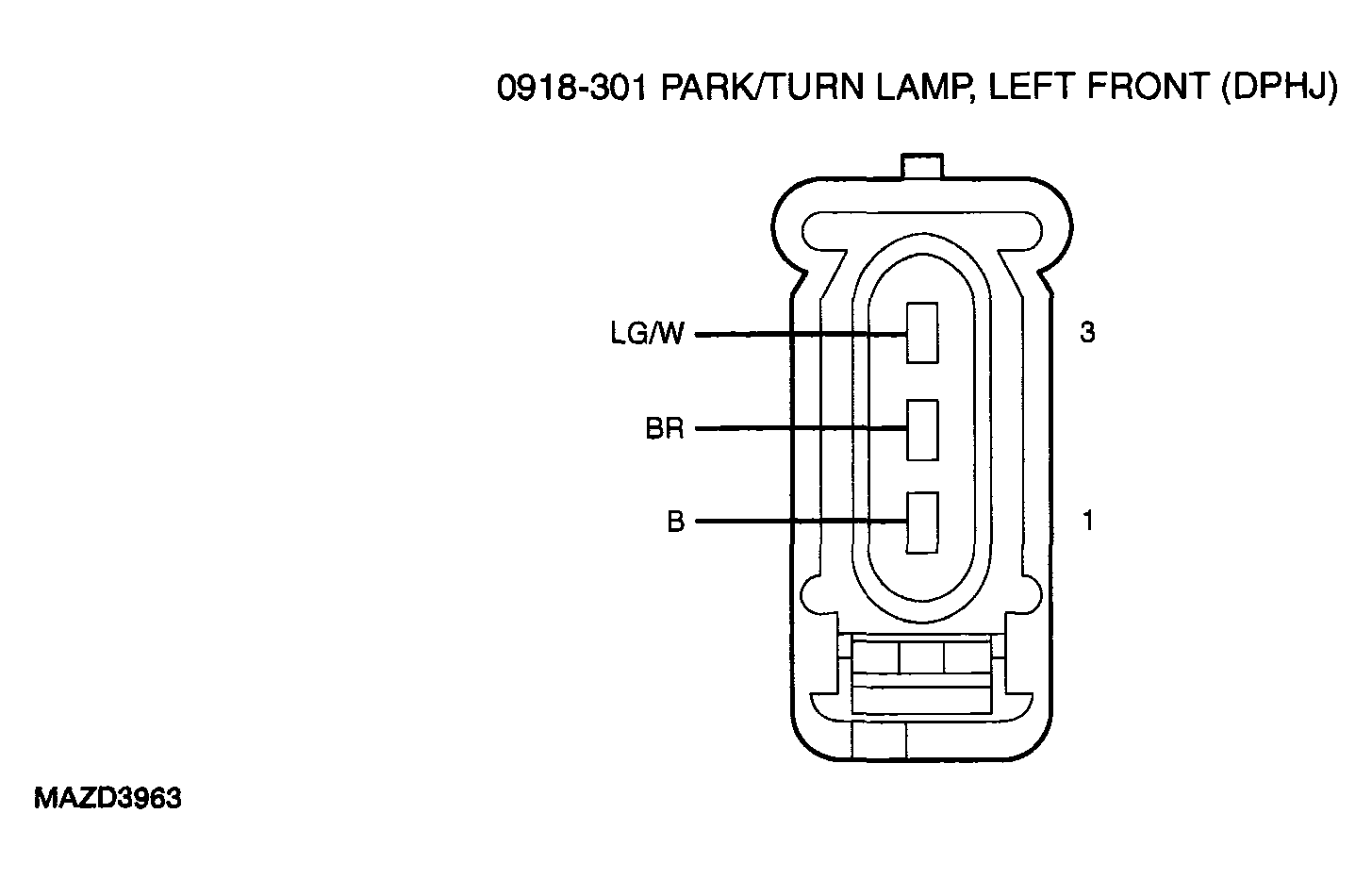

G04310060

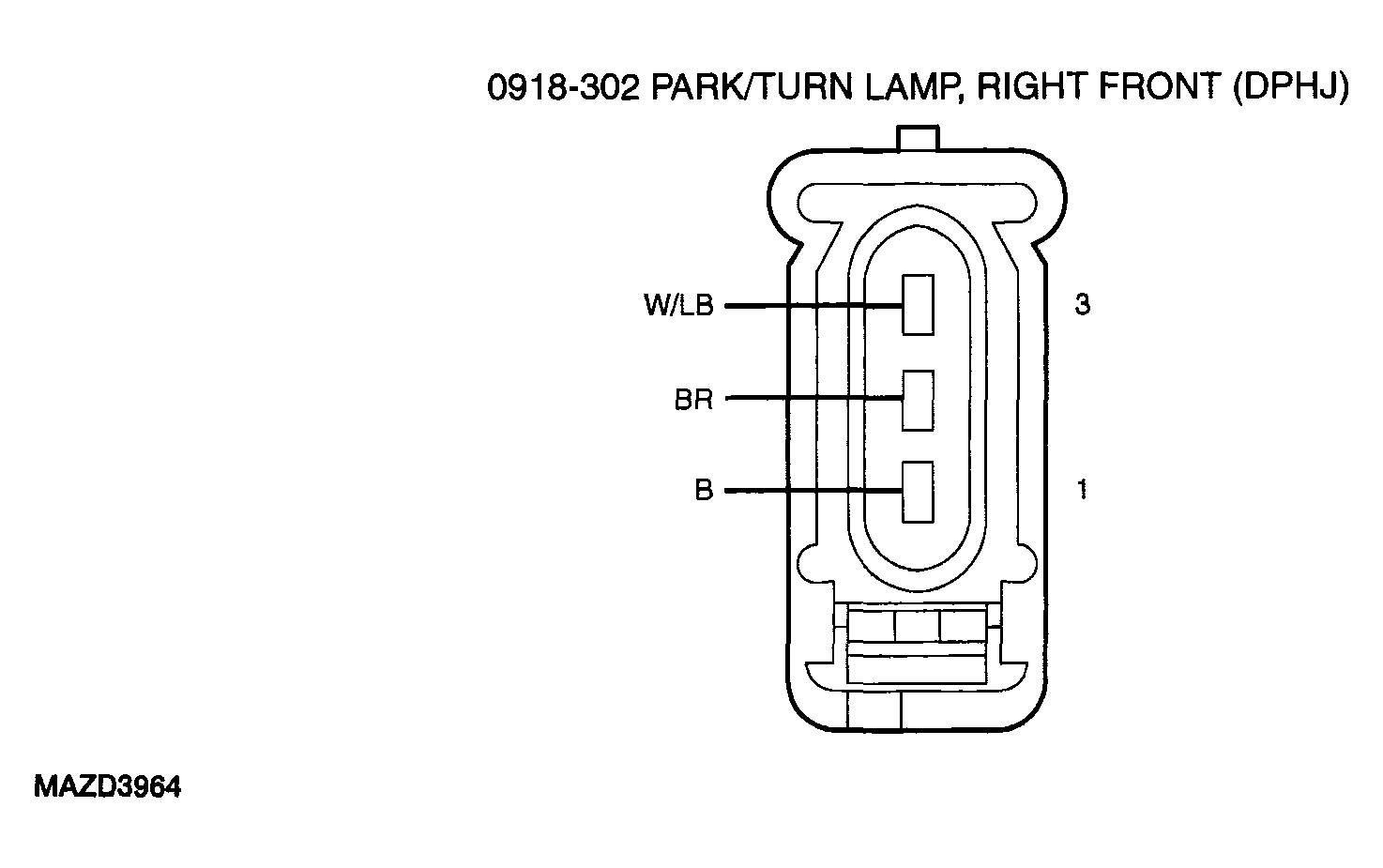

G04310061

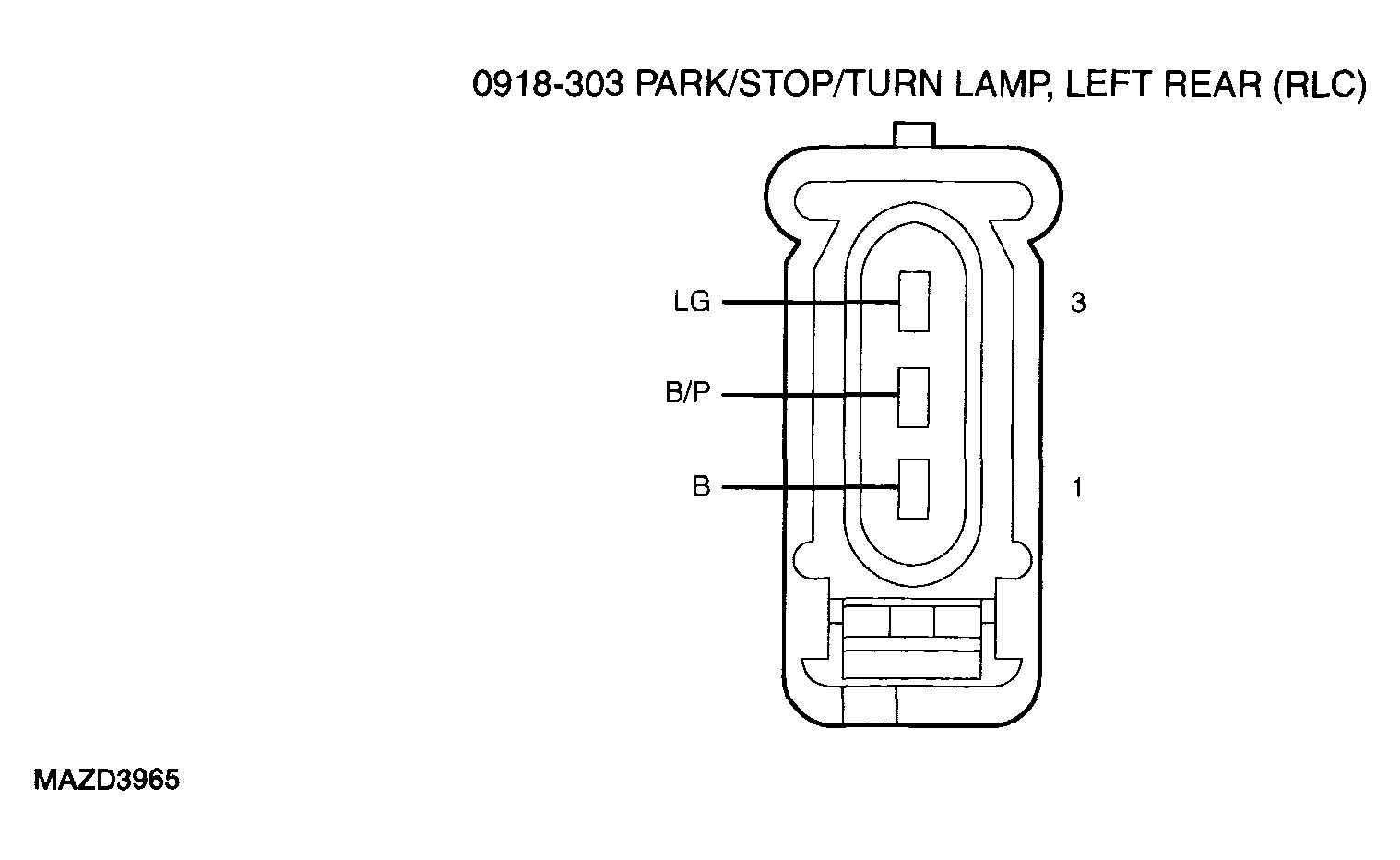

G04310062

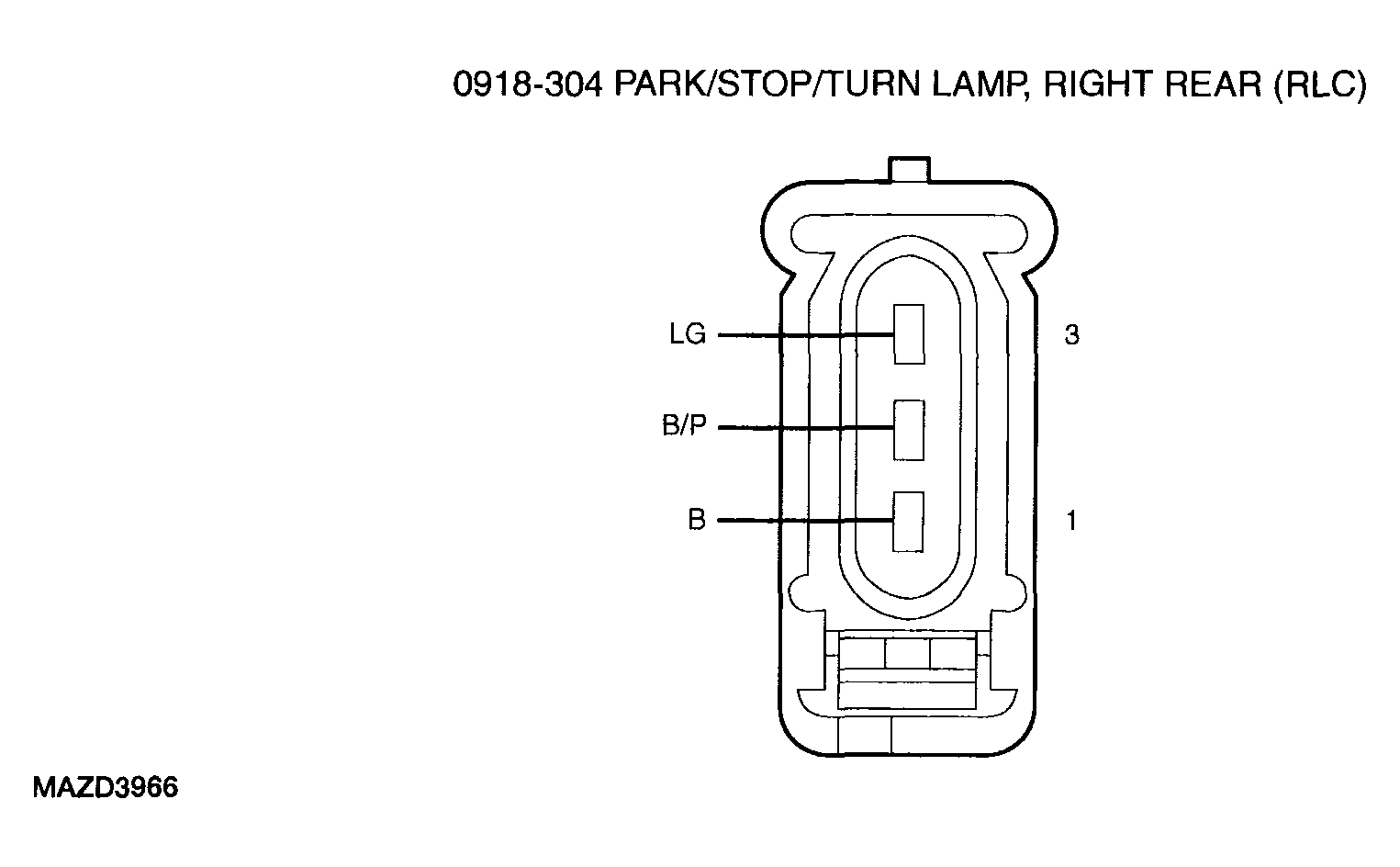

G04310063

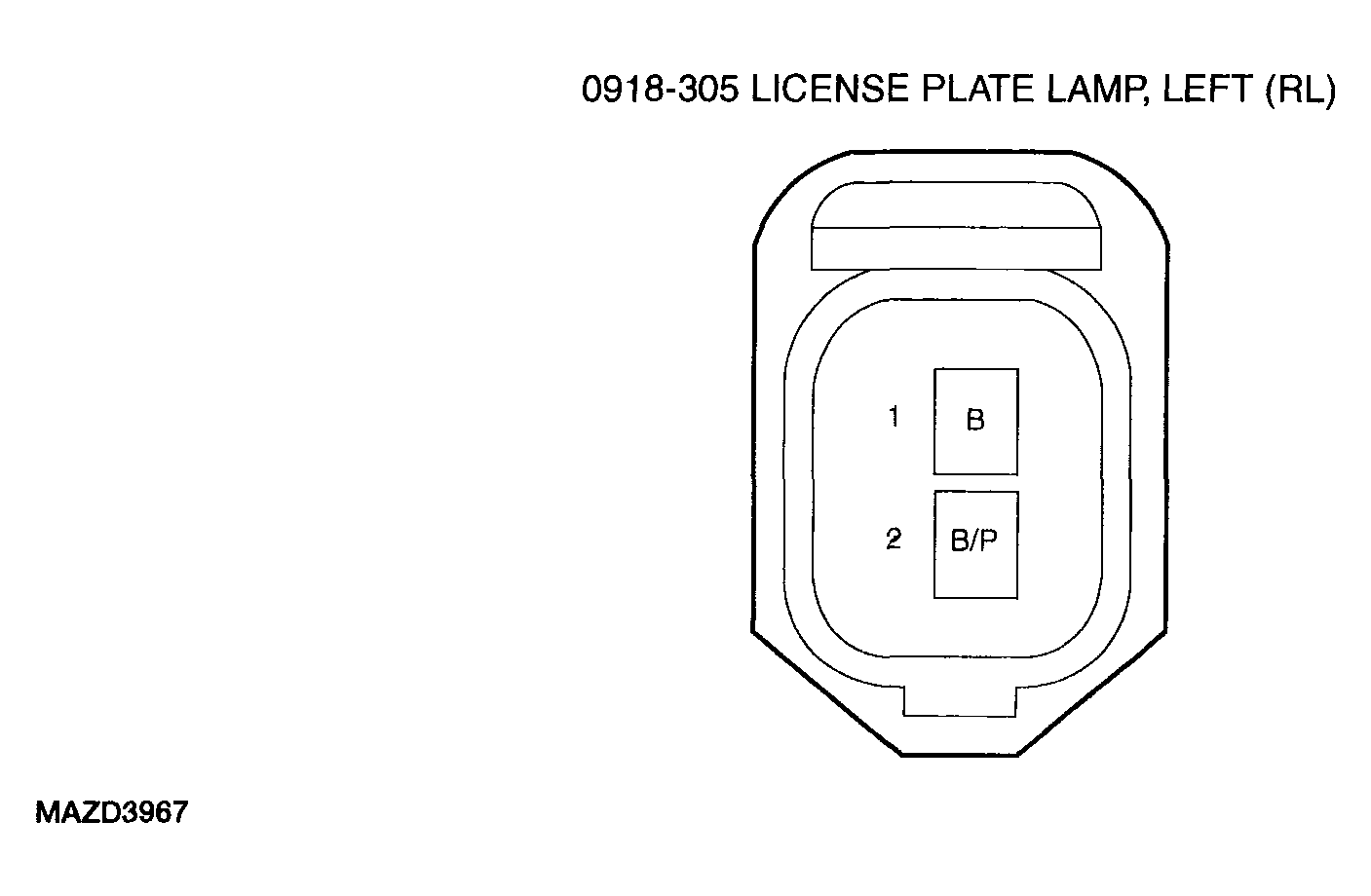

G04310064

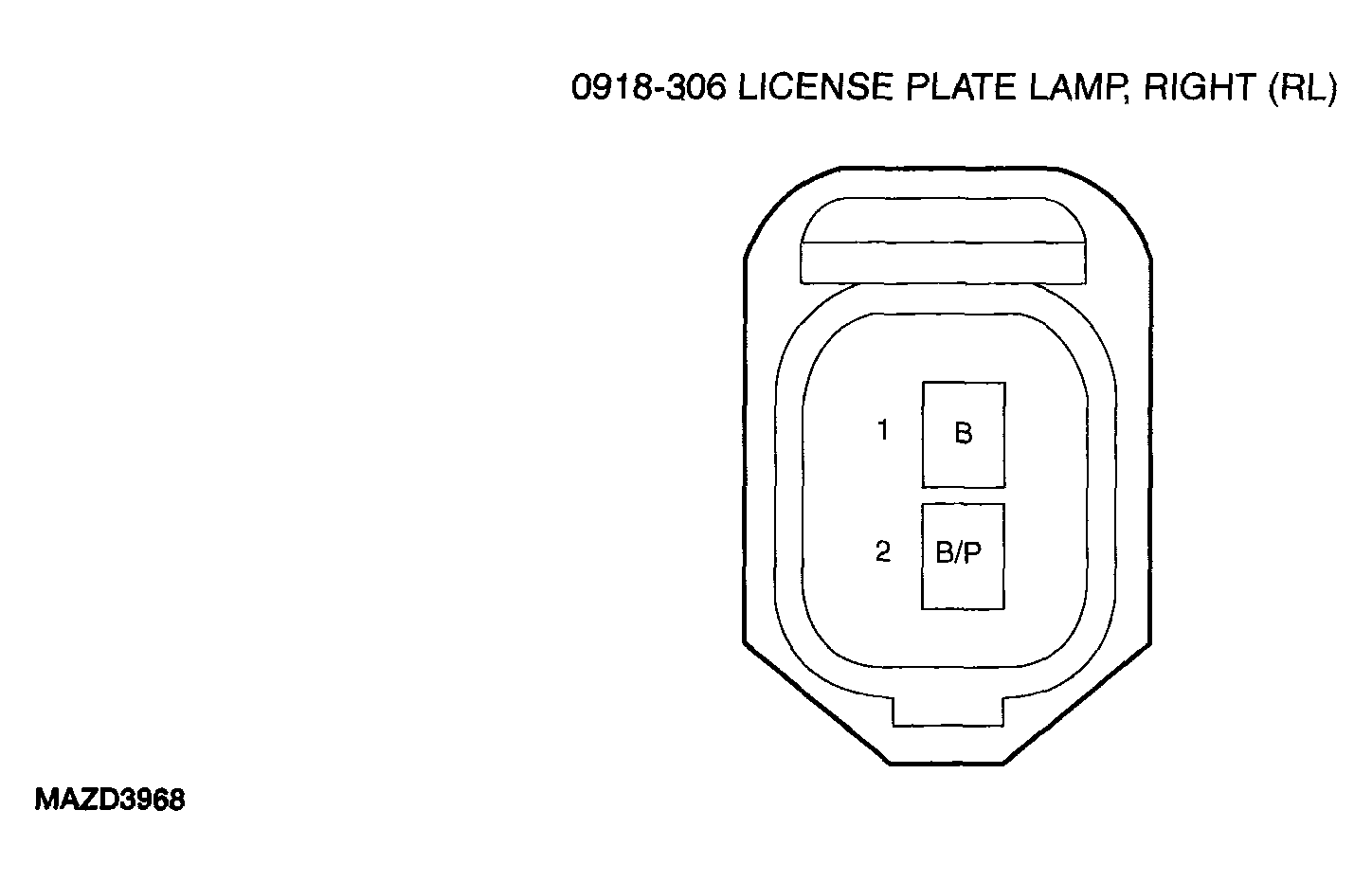

G04310065

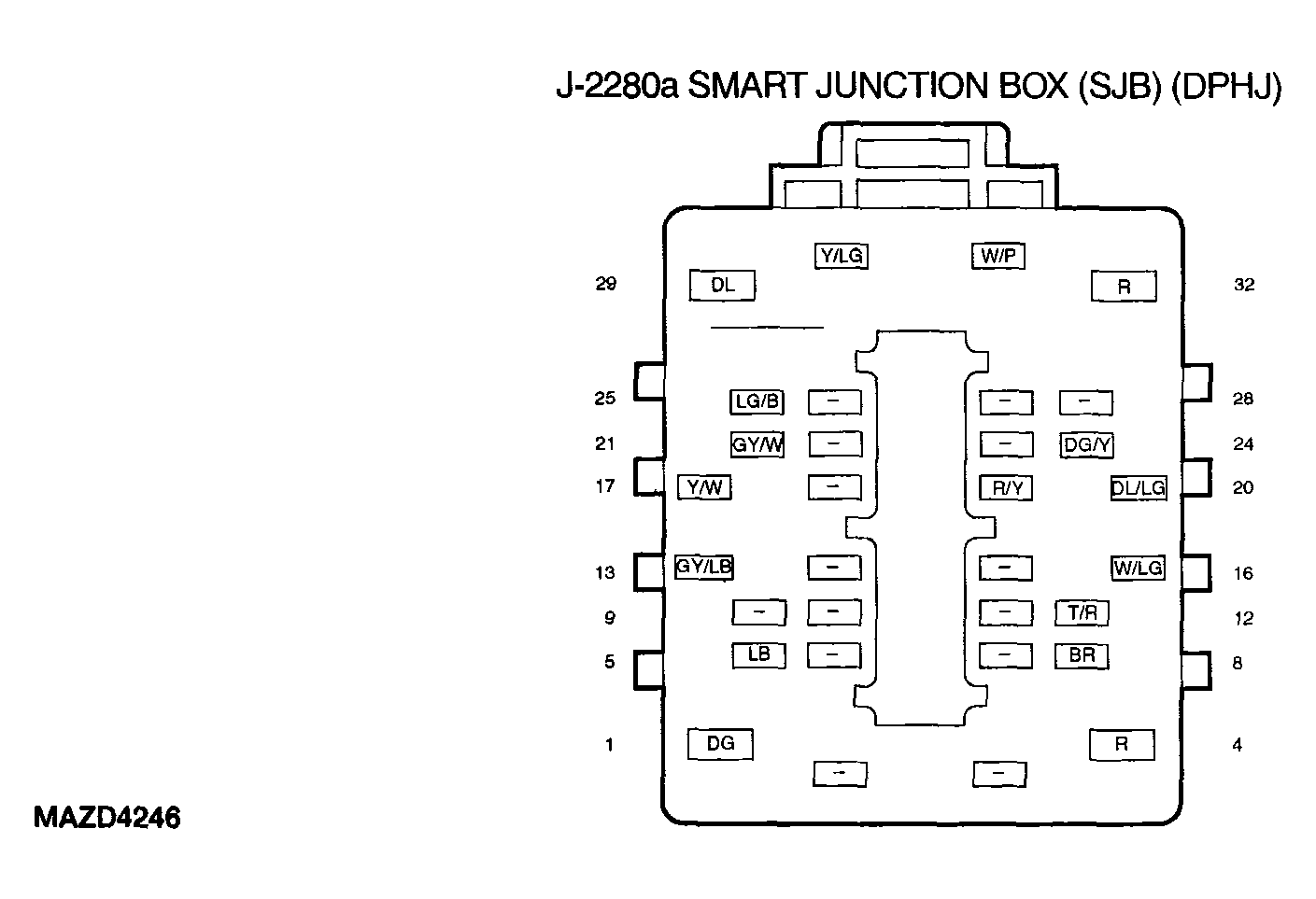

G04310066

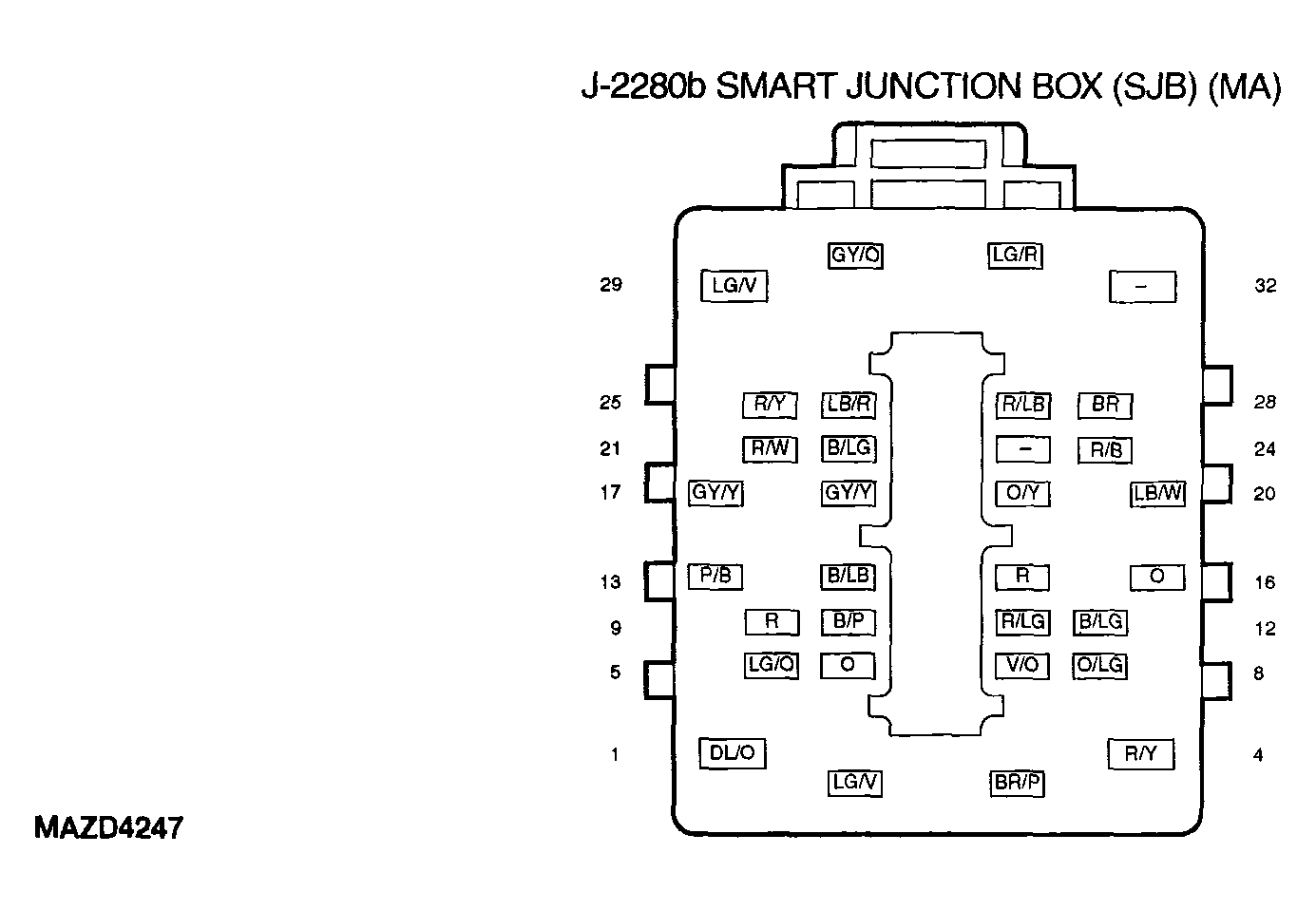

G04310067

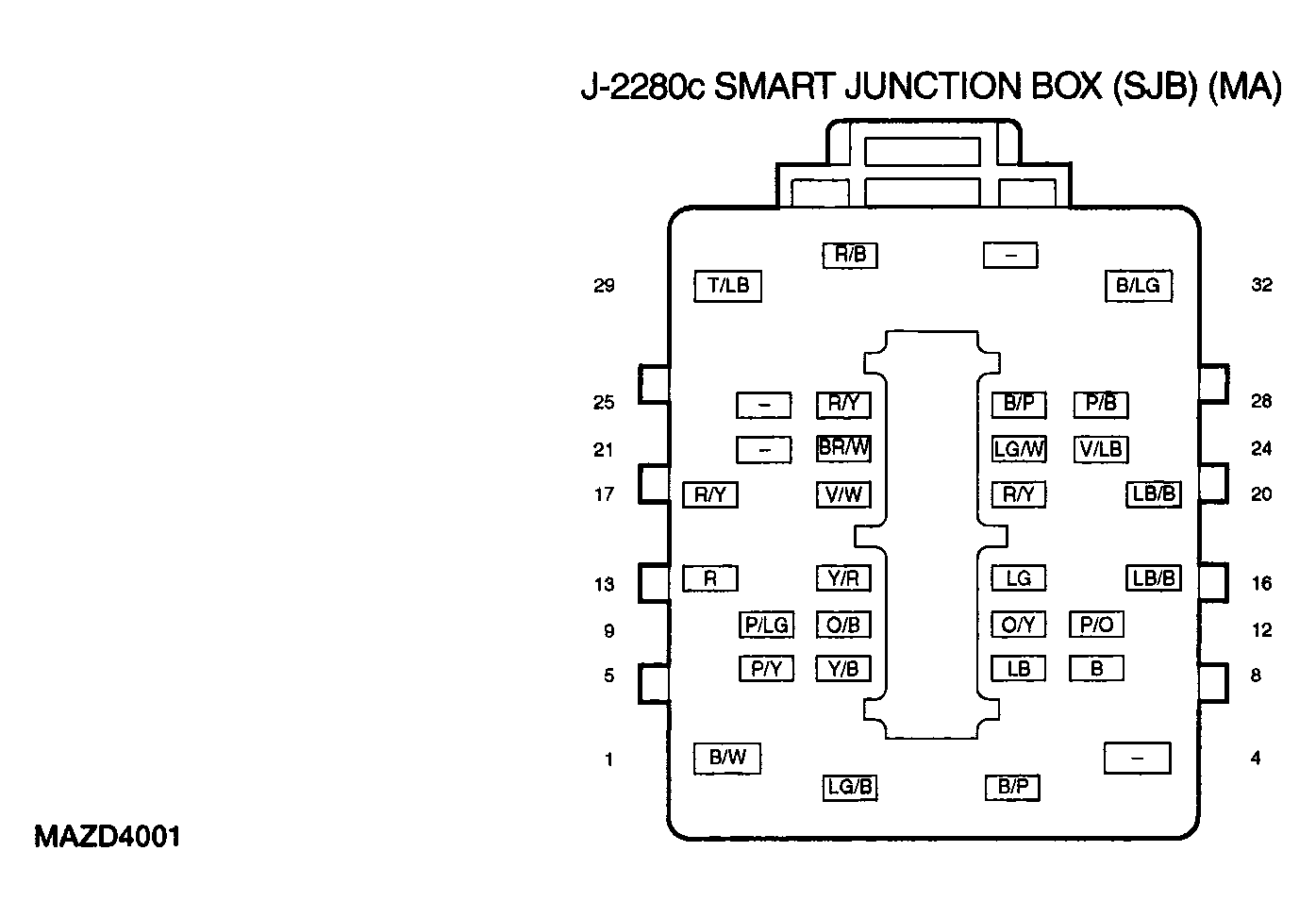

G04310068

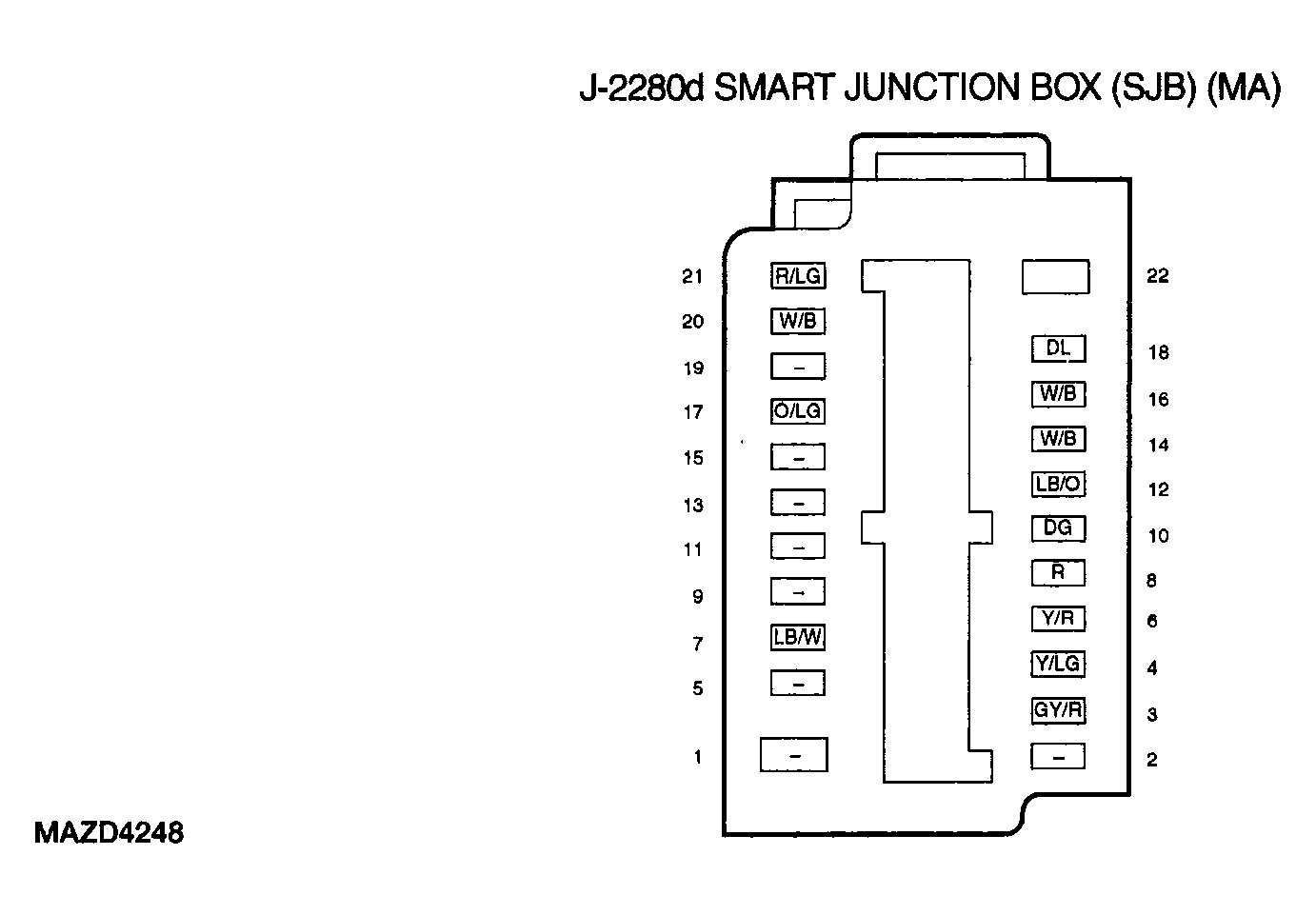

G04310069
