Connector End Views - Instrument Cluster

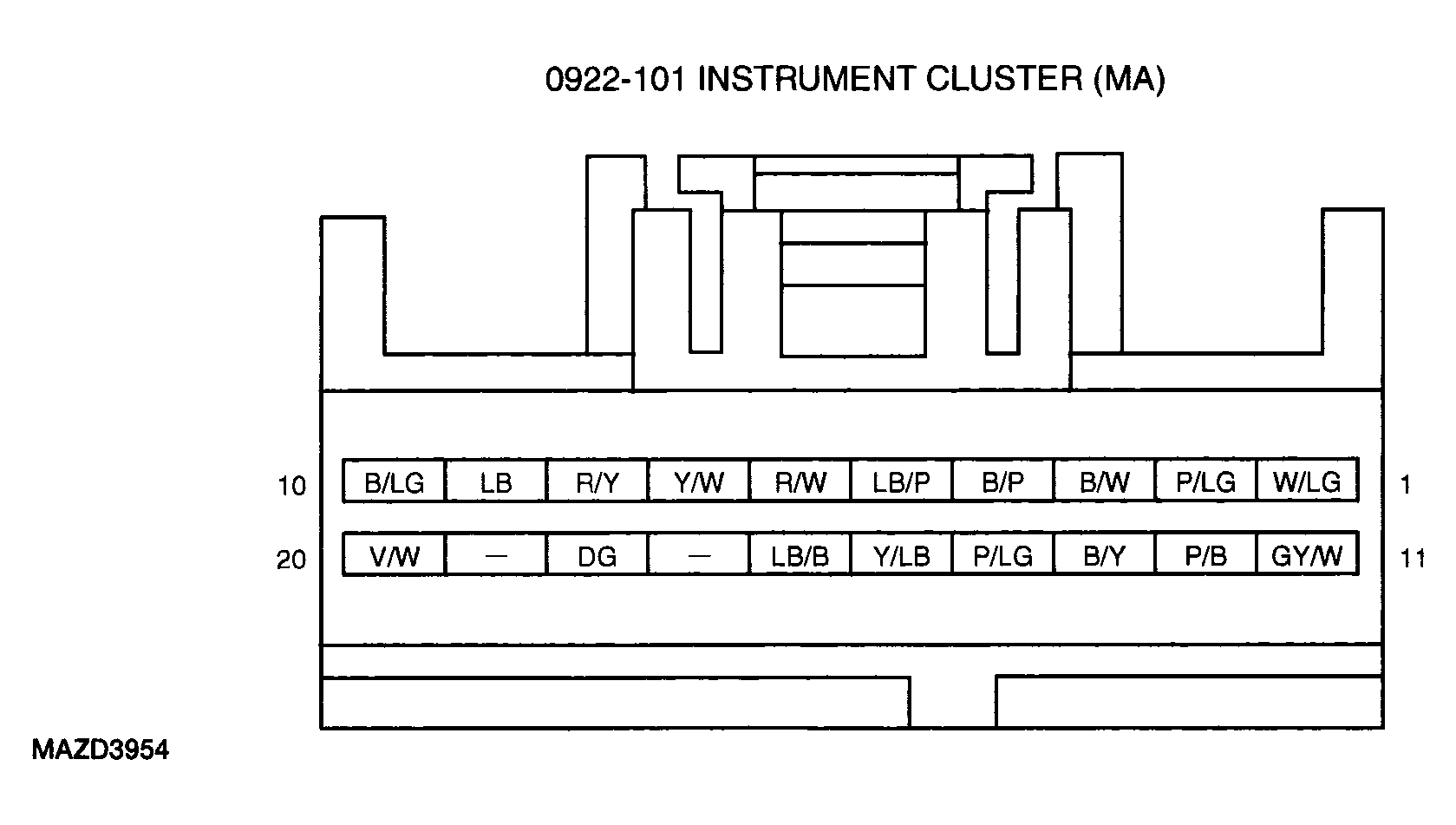

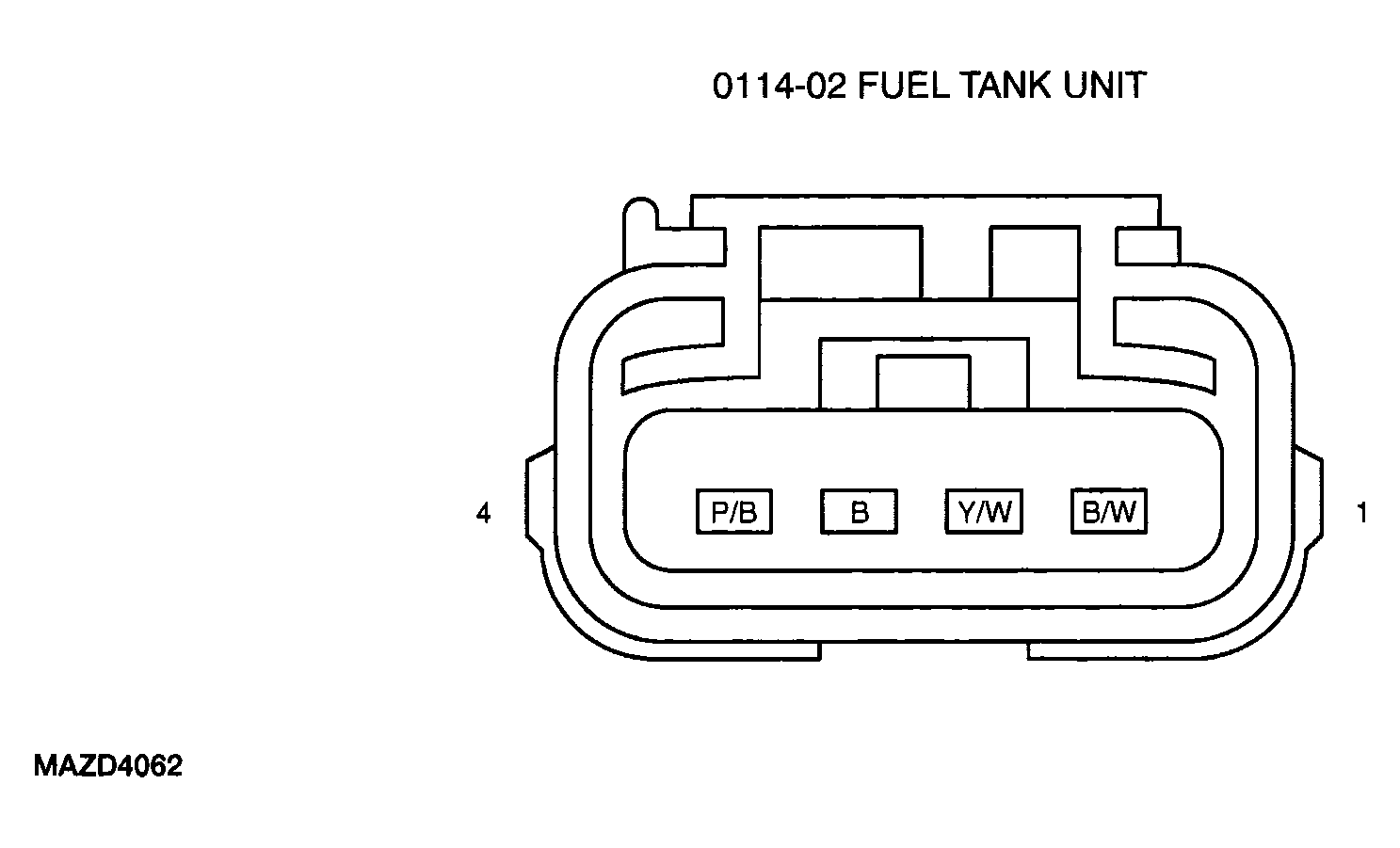

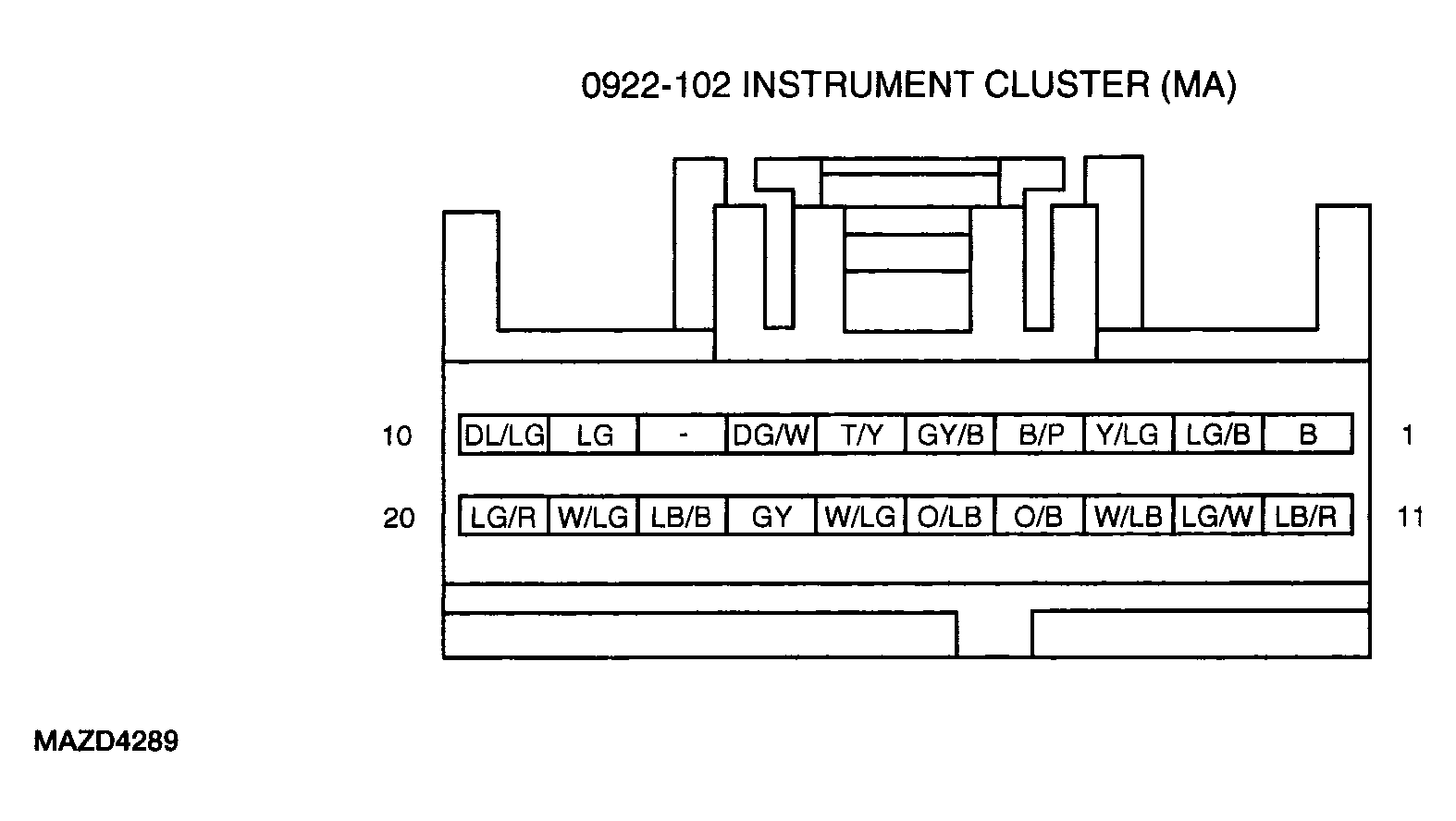

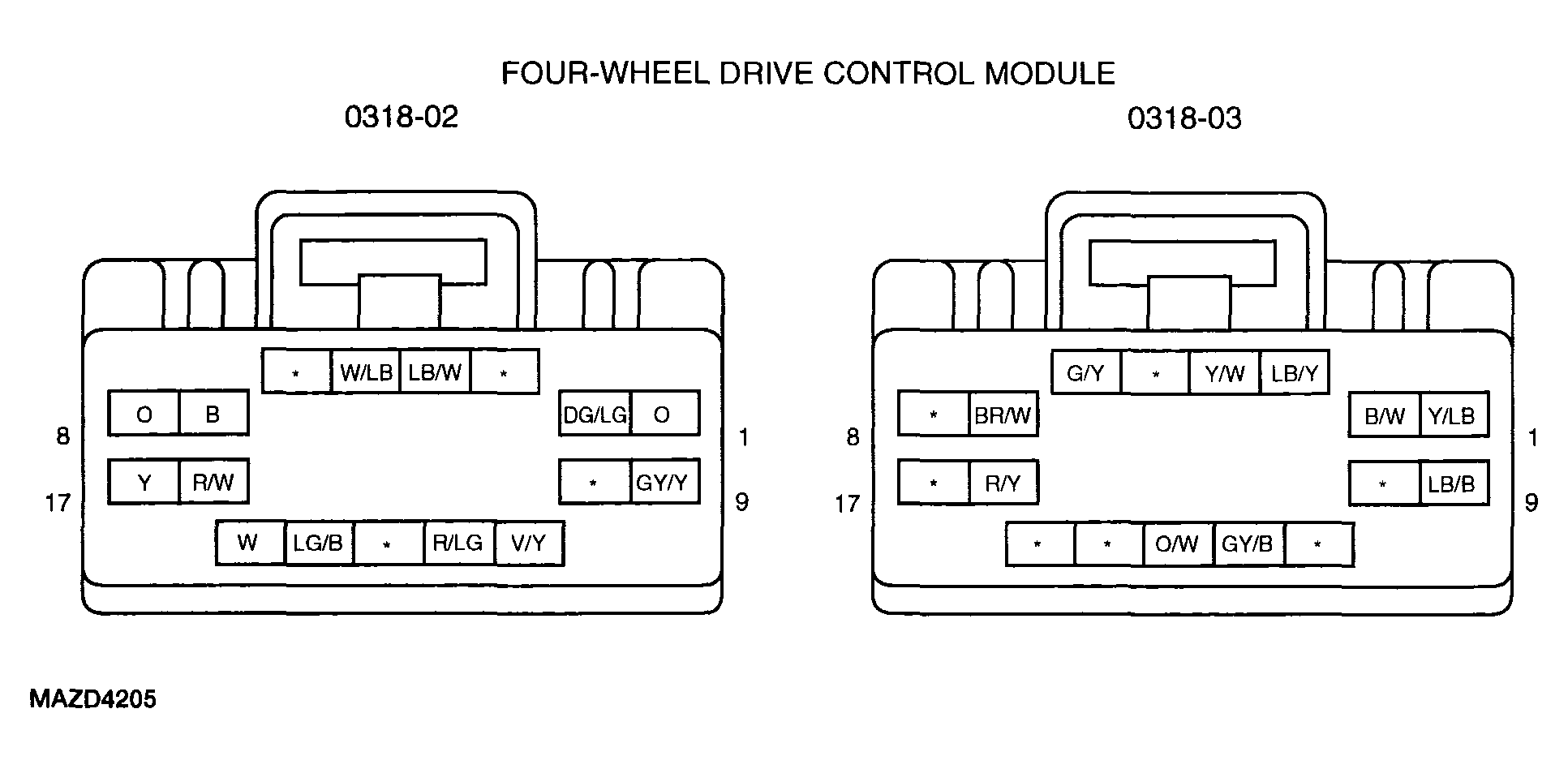

INSTRUMENT CLUSTER CONNECTOR END VIEWS

G04310116

G04310117

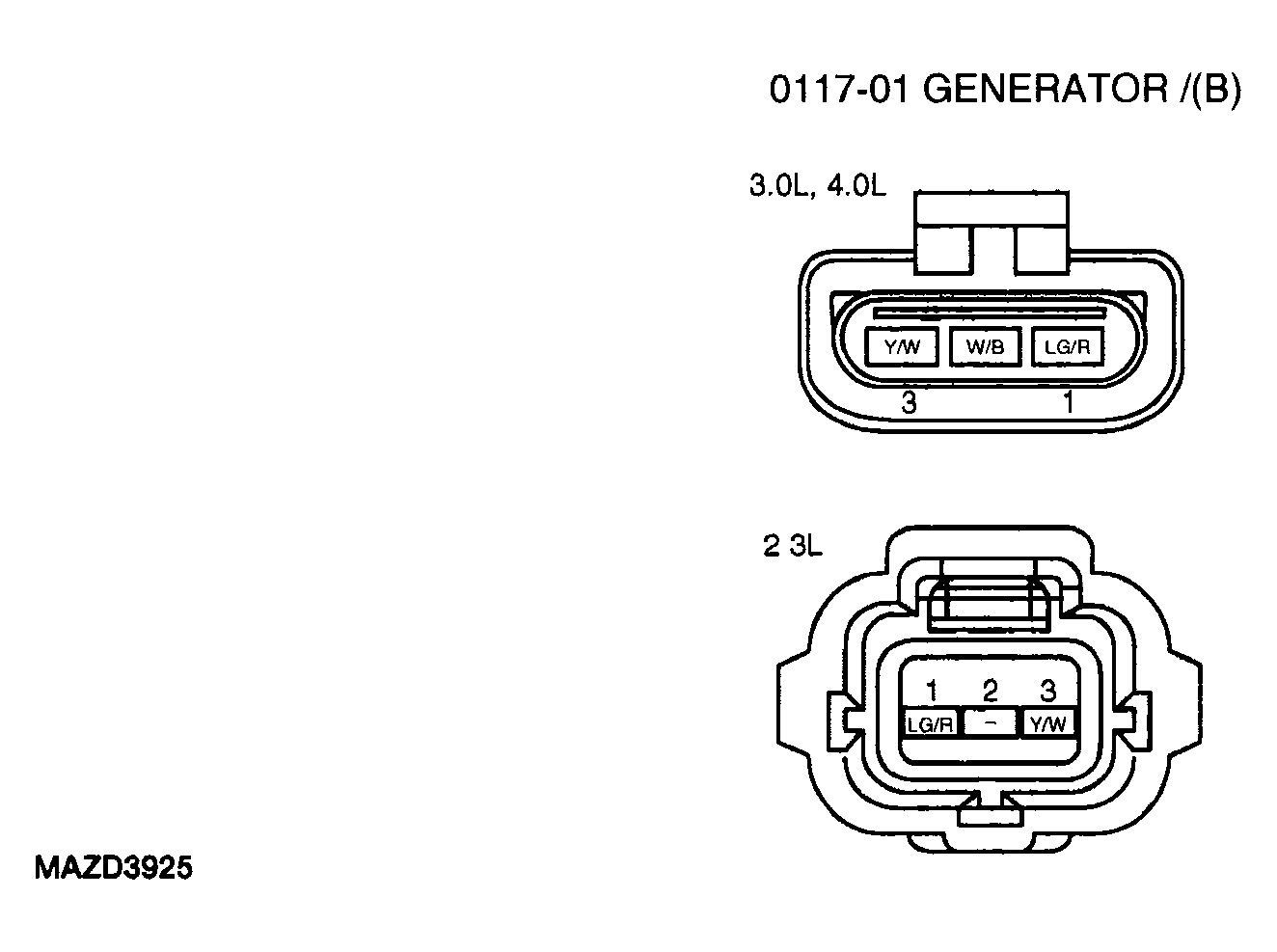

G04310118

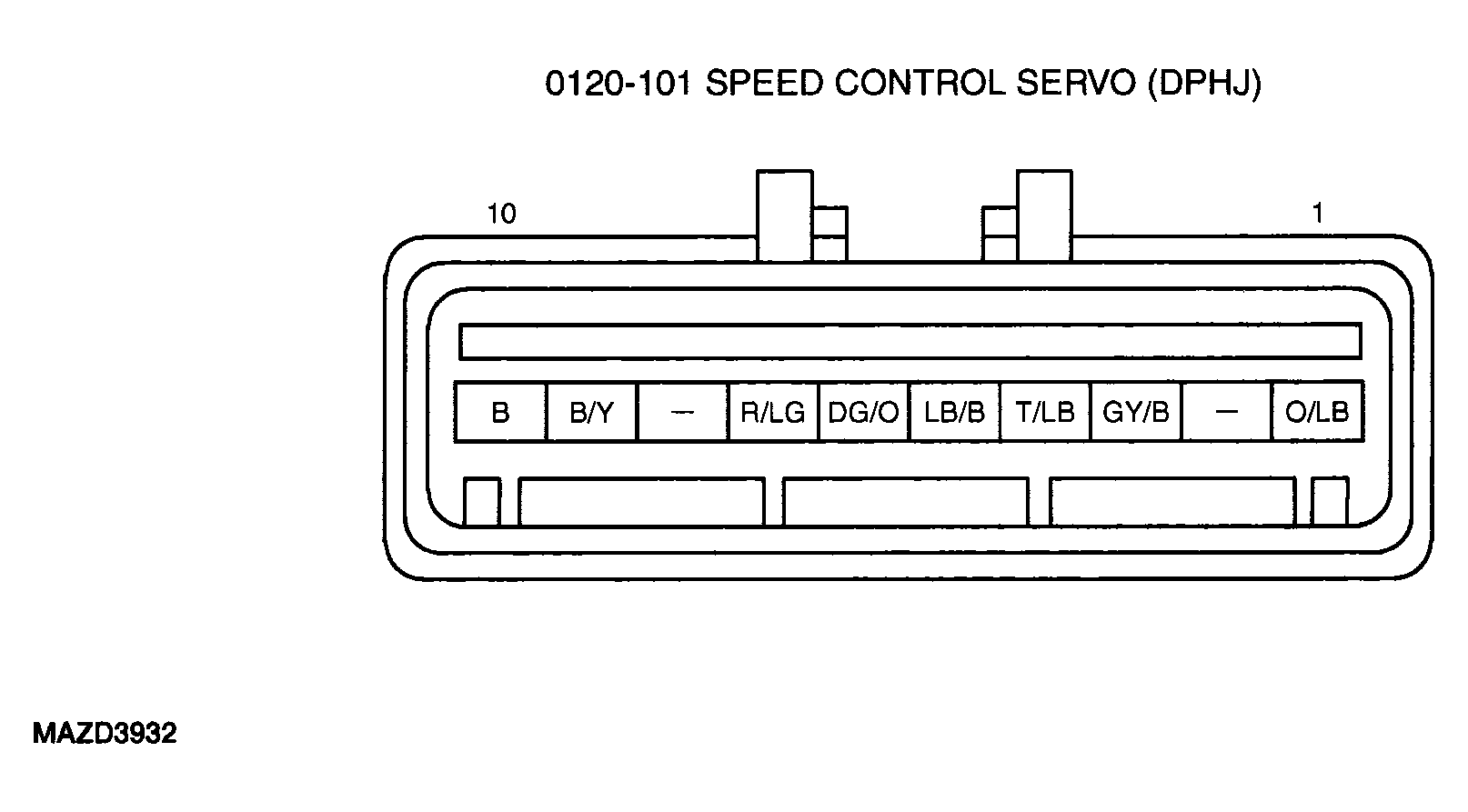

G04310119

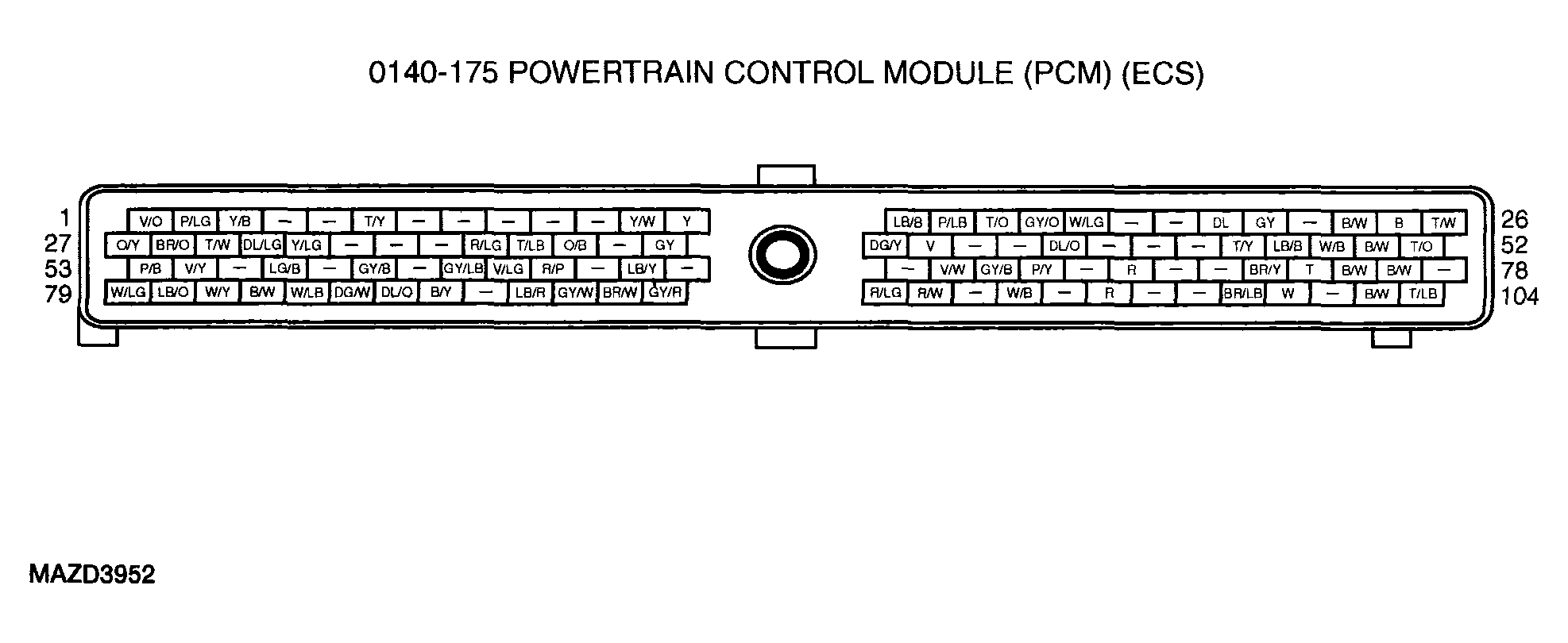

G04310120

G04310121

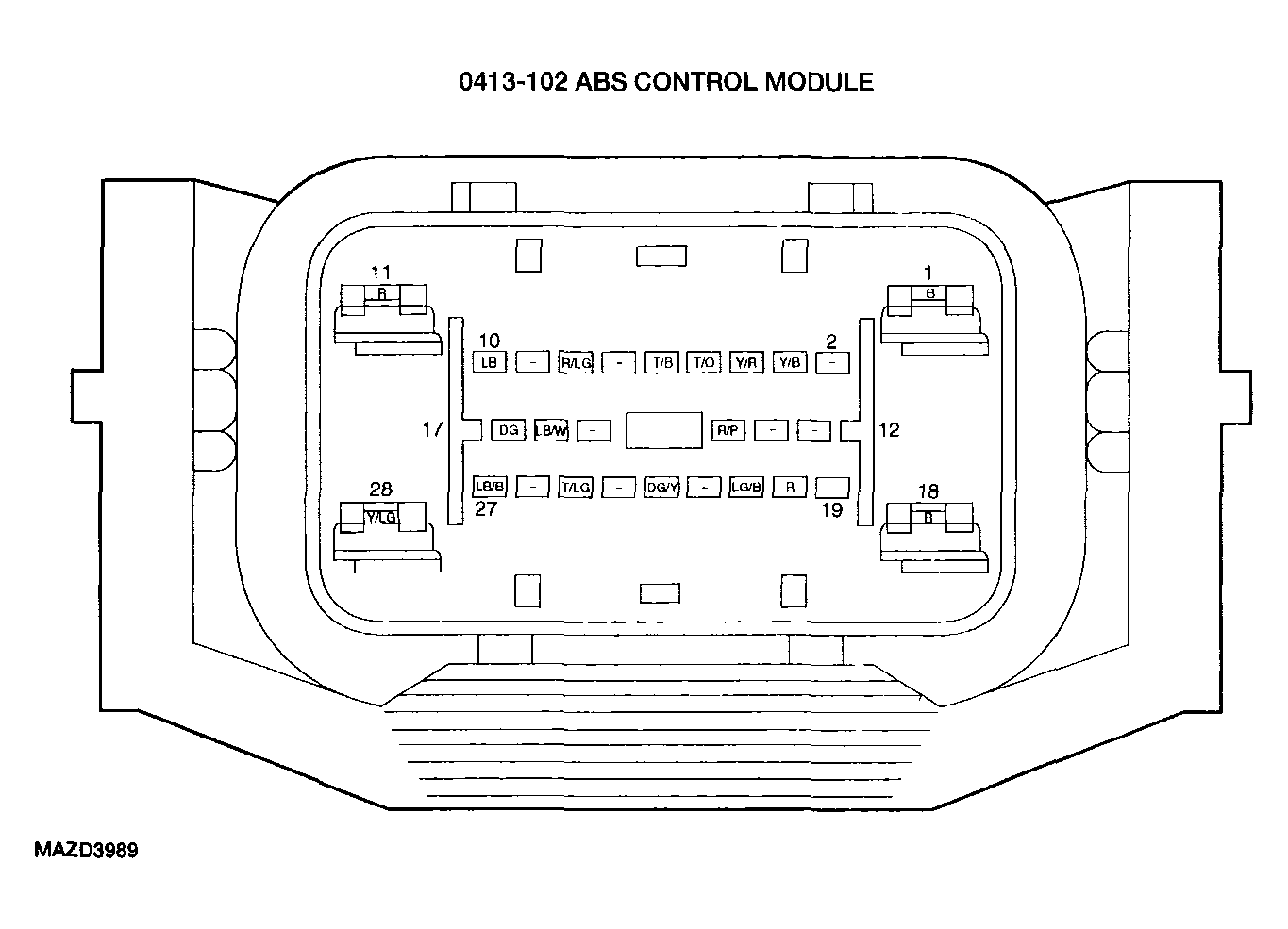

G04310122

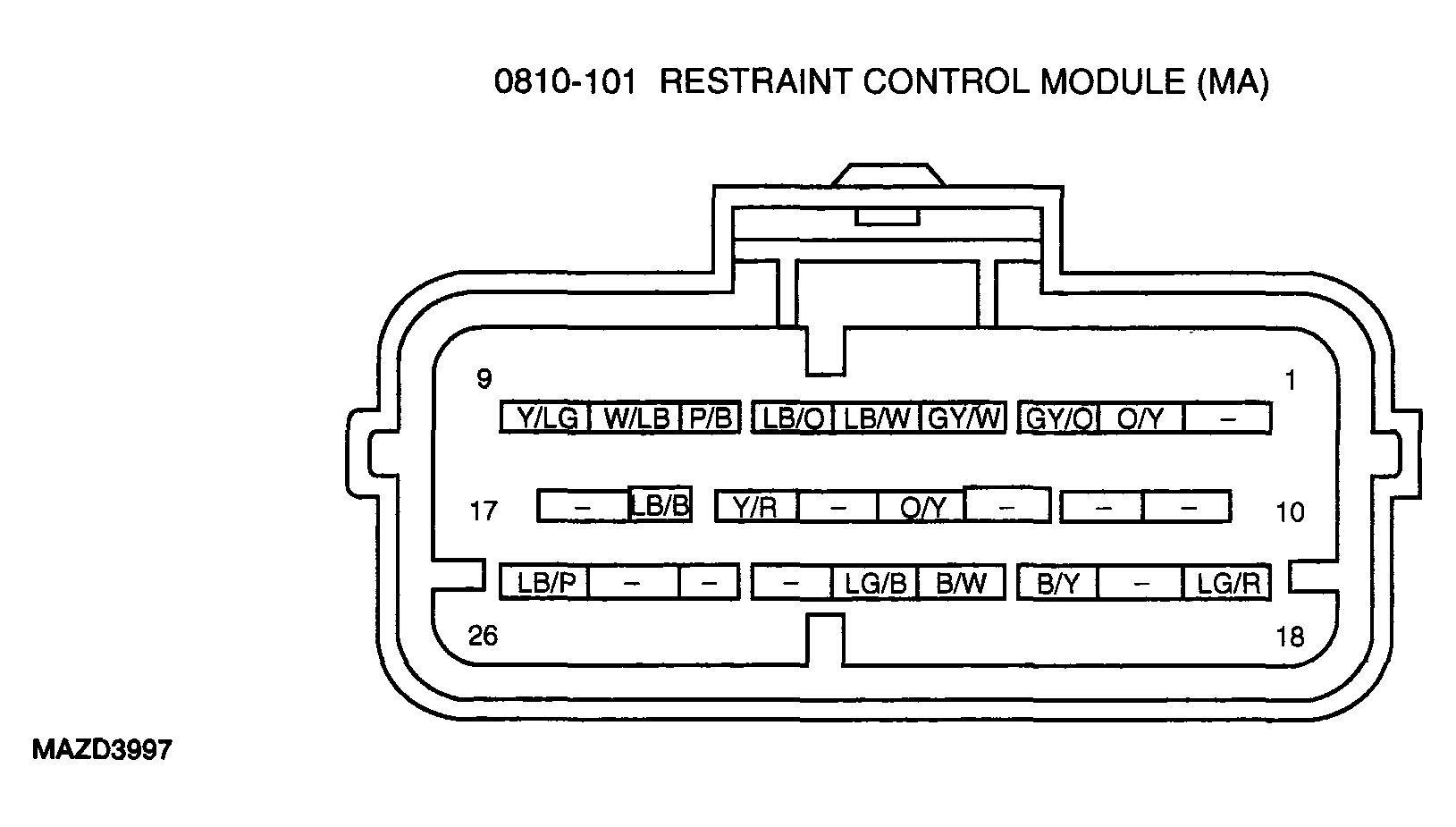

G04310123

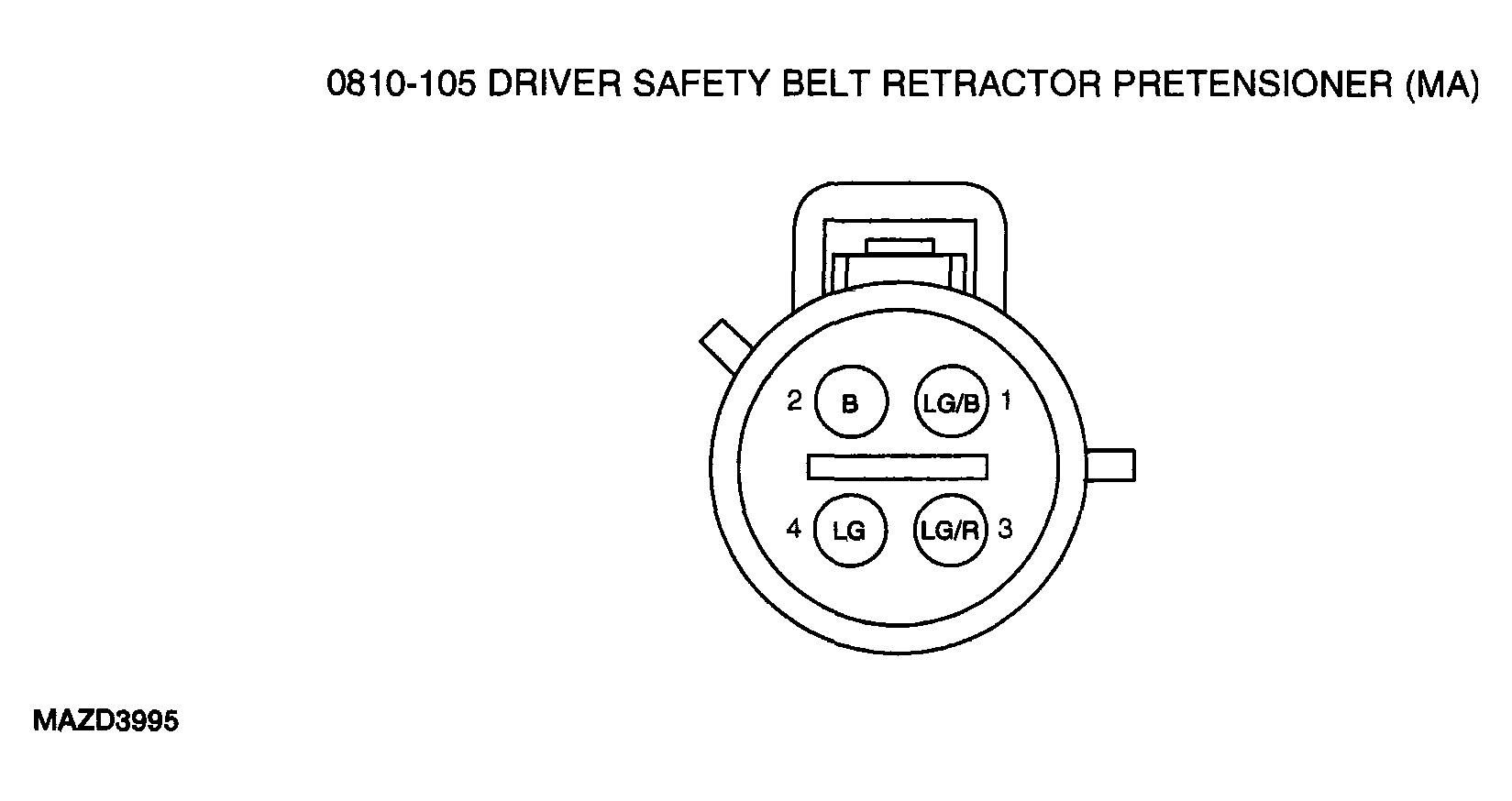

G04310124

G04310125

G04310126

G04310127

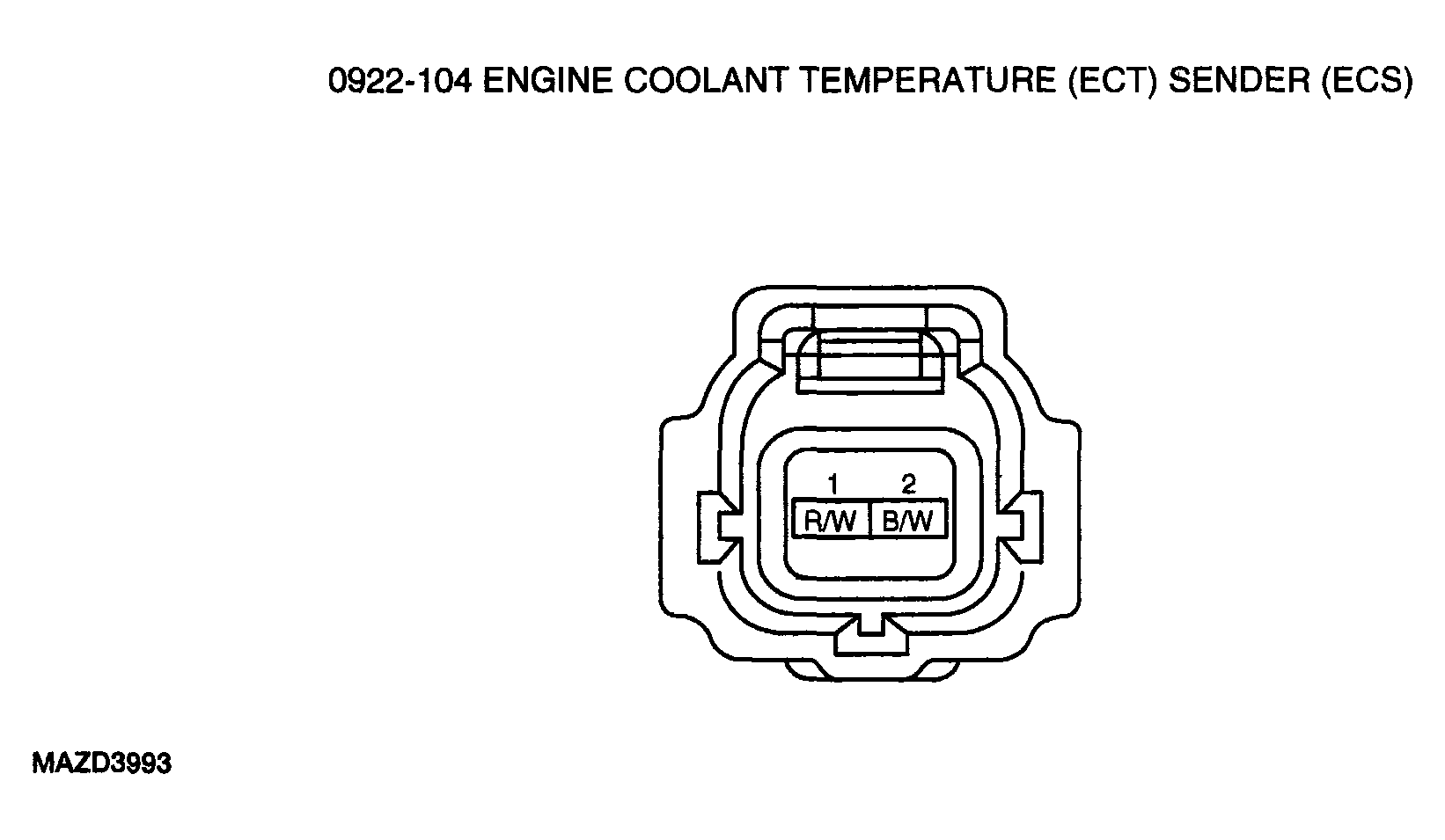

G04310128

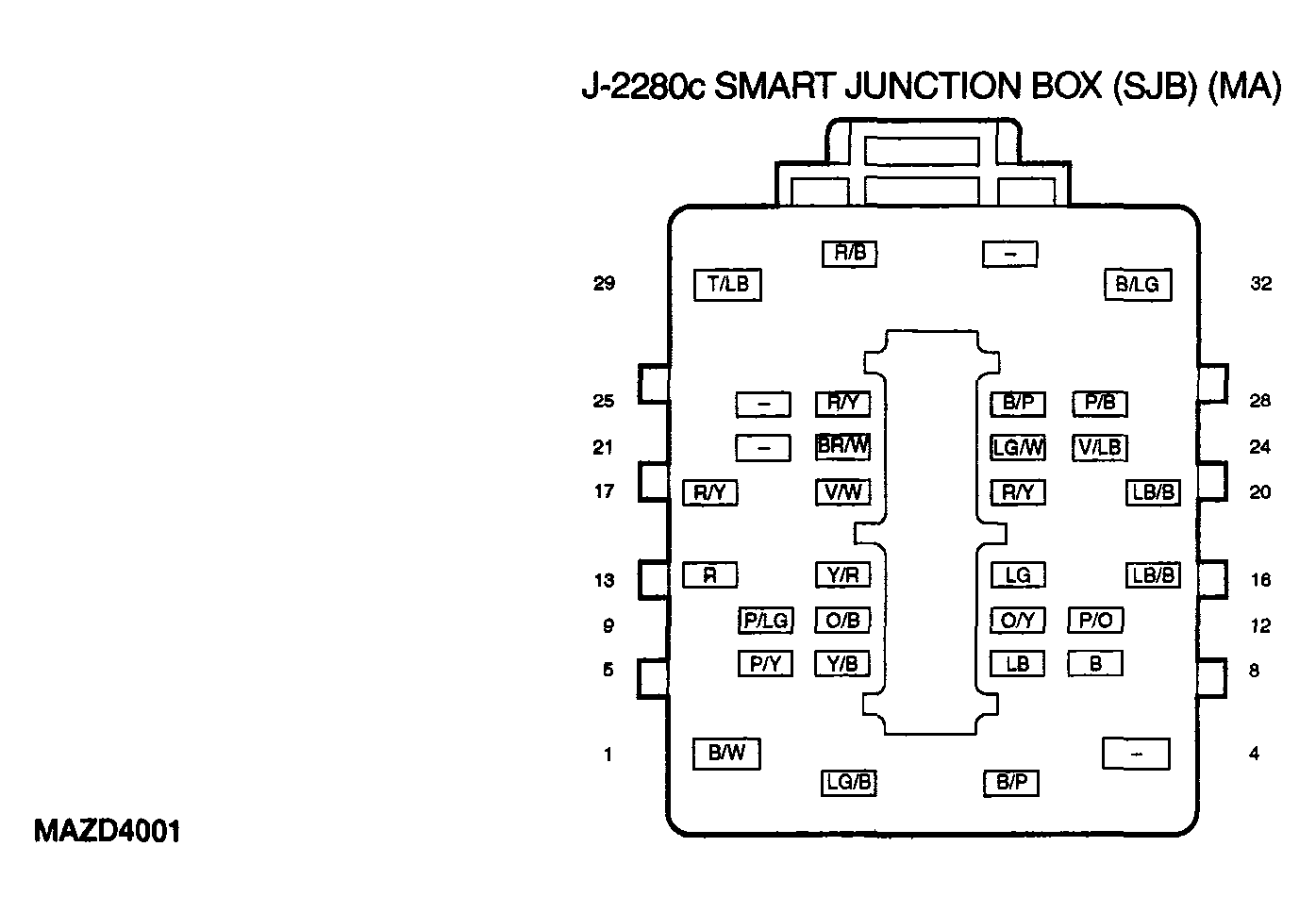

G04310129
